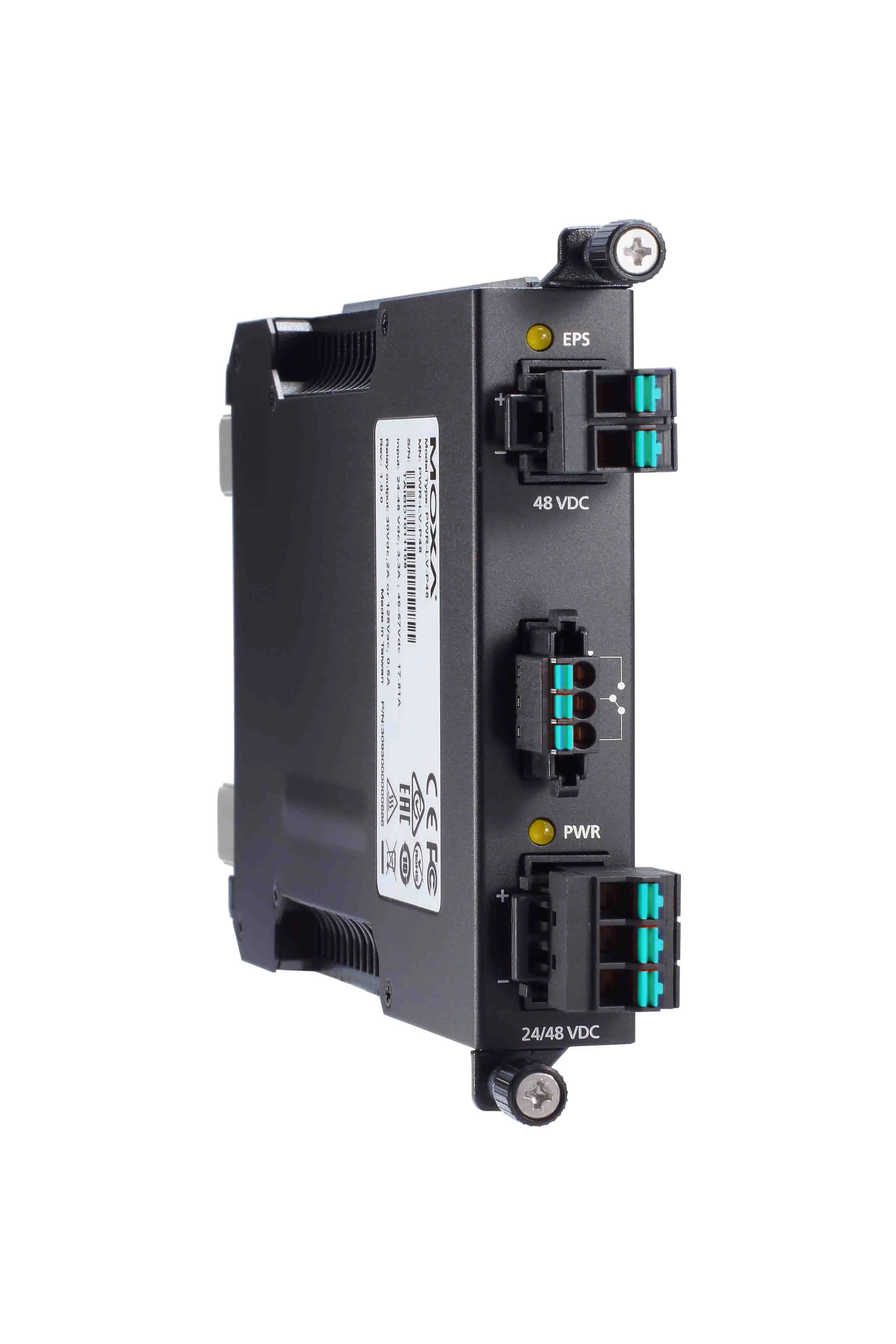

PWR-LV-P48

Industrial PoE Ethernet switch – Power supply module (24/48 VDC) with system power input, relay, PoE power input

Power Parameters

• Input Voltage: 24/48 VDC for the switch system48 VDC for PoE systems(53 to 57 VDC is recommended for PoE+ devices)
• Operating Voltage: 18 to 72 VDC for the switch system46 to 57 VDC for PoE systems
• Reverse Polarity Protection: Supported
• Alarm Contact Channels: 1 relay output with current carrying capacity of 2 A @ 30 VDC or 0.5 A @ 125 VAC

Physical Characteristics

• Weight: 360 g (0.79 lb)

MTBF

• Time: 1,388,747 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
