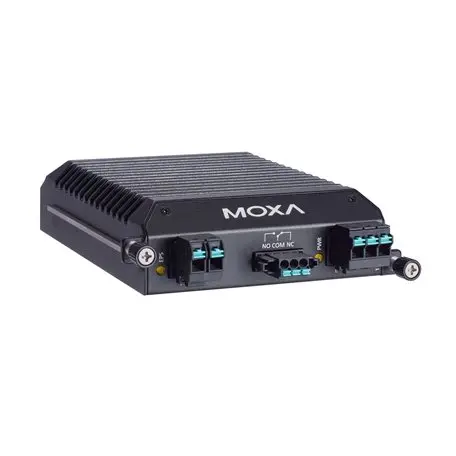

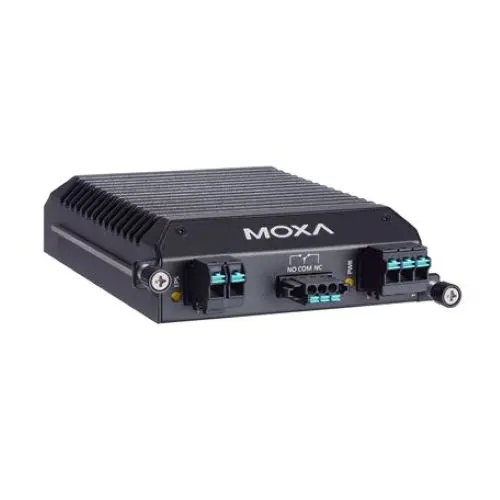

PWR-LV-P48-A

Industrial PoE Ethernet switch – 24/48 VDC power supply module with system power, relay, PoE power input, advanced heat sink

Power Parameters

• Input Voltage: 24/48 VDC for the switch system48 VDC for PoE systems (53 to 57 VDC is recommended for PoE+ devices)
• Operating Voltage: 18 to 72 VDC for the switch system46 to 57 VDC for PoE systems
• Reverse Polarity Protection: Supported
• Alarm Contact Channels: 1 relay output with current carrying capacity of 2 A @ 30 VDC or 0.5 A @ 125 VAC

Physical Characteristics

• Weight: 400 g (0.88 lb)

MTBF

• Time: 1,388,747 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
