Description

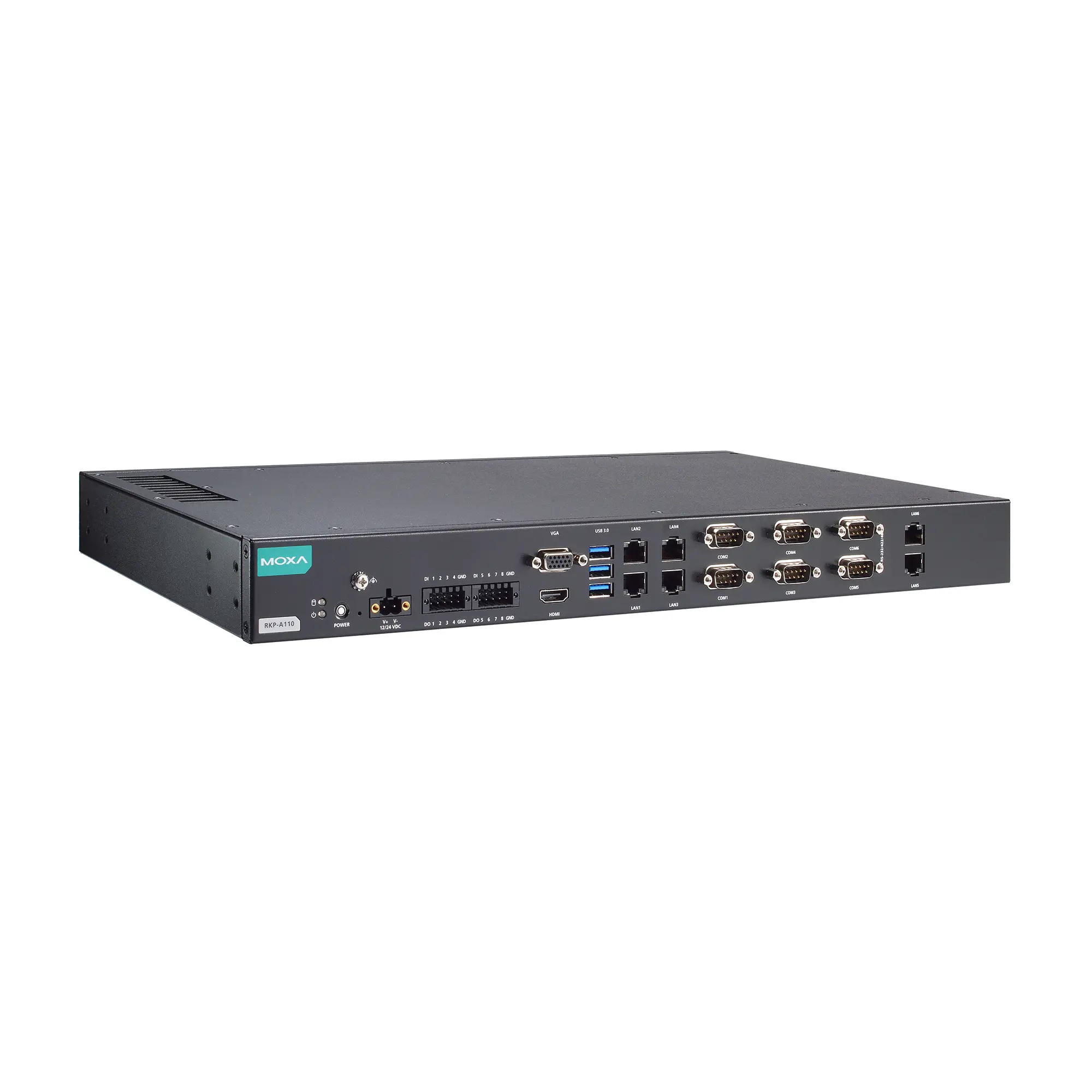

Industrial computer – Rackmount 1U computer with Intel Atom® x6211E processor, 6 LAN ports, 6 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperature
Computer
- CPU: RKP-A110-E2 Models: Intel Atom® x6211E processor (Dual core, 1.5M cache, 1.30 GHz)RKP-A110-E4 Models: Intel Atom® x6425E processor (Quad core, 1.5M cache, 2.00 GHz)
- System Memory Slot: SODIMM DDR4 slots x 1, up to 32 GB max.
- System Memory Pre-installed: 8 GB DDR4
- Storage Slot: 2.5-inch SSD slots x 2 (SATAIII interface)
- Storage Pre-installed: RKP-A110-E2-T-Win10/E4-T-Win10: 64 GB SSD
- Supported OS: Windows Images and Drivers Supported:- Windows 10 IoT Enterprise LTSC 2021 64-bit- Windows 11 Professional 64-bit Linux Drivers Supported:- Debian 11 (kernel 5.10)- Ubuntu 22.04 LTS (kernel 5.15)- RHEL 9 (kernel 5.14)
- Graphics Controller: Intel® UHD Graphics
Computer Interface
- Ethernet Ports: RKP-A110-E2-8L-T/E4-8L-T Models:Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 12RKP-A110-E2-2L4C-T/E4-2L4C-T Models:Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 6RKP-A110-E2-T/E4-T/E2-8C-T/E4-8C-T/E2-T-Win10/E4-T-Win10 Models:Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
- Serial Ports: RKP-A110-E2-8C-T/E4-8C-T Models:RS-232/422/485 ports x 10, software selectable (DB9 male)RKP-A110-E2-2L4C-T/4-2L4C-T Models:RS-232/422/485 ports x 6, software selectable (DB9 male)RKP-A110-E2-T/E4-T/E2-8L-T/E4-8L-T/E2-T-Win10/E4-T-Win10 Models:RS-232/422/485 ports x 2, software selectable (DB9 male)
- USB 3.0: USB 3.0 hosts x 3, type-A connectors
- Digital Input: DIs x 8
- Digital Output: DOs x 8
- TPM: TPM v2.0
- Video Output: HDMI 2.0b x 1, (type-A connector)VGA x 1, 15-pin D-sub connector (female)
- Buttons: Reset button Power button
Ethernet Interface
- Magnetic Isolation Protection: 1.5 kV (built-in)
Serial Interface
- Baudrate: 50 bps to 115.2 kbps
- Connector: DB9 male
- Data Bits: 5, 6, 7, 8
- Parity: None, Even, Odd, Space, Mark
- Stop Bits: 1, 1.5, 2
- Flow Control: RTS/CTS, XON/XOFF
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Digital Inputs
- Connector: Spring-type Euroblock terminal
- Sensor Type: Dry contact
- Dry Contact: Logic 0: Short to GND Logic 1: Open
Digital Outputs
- Connector: Spring-type Euroblock terminal
- I/O Type: Sink
- Current Rating: 200 mA per channel
- Voltage: 0 to 24 VDC
LED Indicators
- System: Power x 1 Storage x 1
- LAN: 2 per port (10/100/1000 Mbps)
Power Parameters
- Input Voltage: 12/24 VDC
- Power Connector: Screw-fastened Euroblock terminal
- Power Consumption: 50 W
Physical Characteristics
- Housing: Metal
- IP Rating: IP20
- Dimensions: 440 x 230 x 43.6 m
