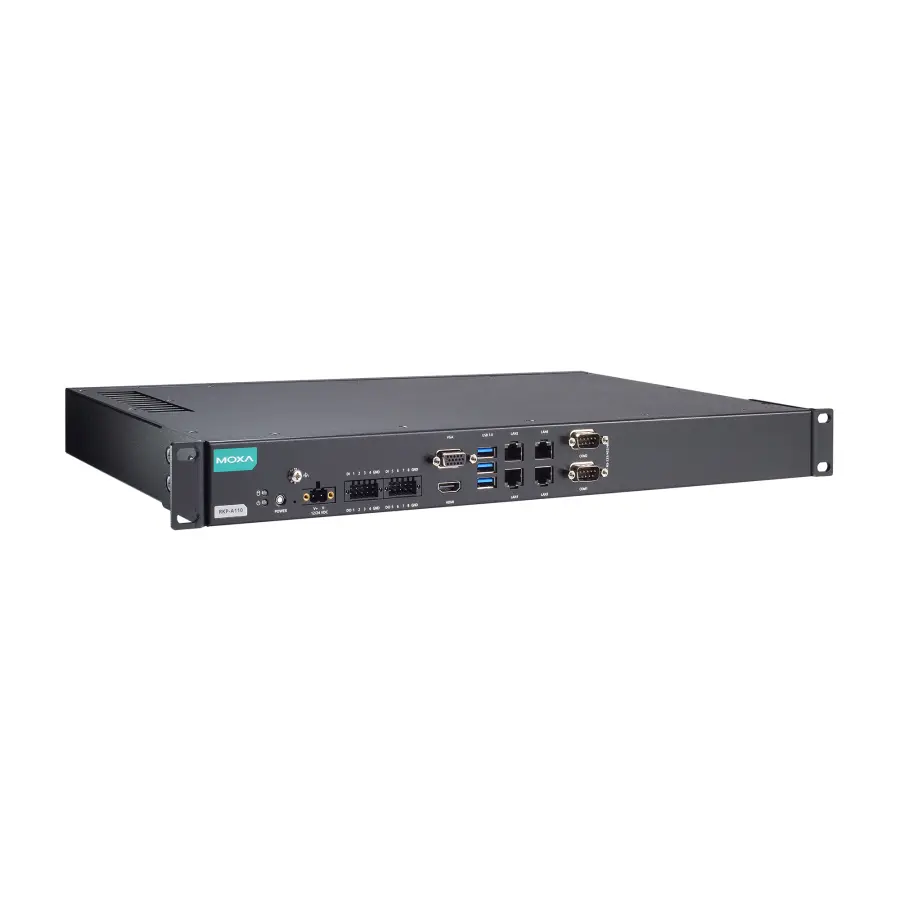

# RKP-A110-E4-T

Industrial computer, CPU: RKP-A110-E2 Models: Intel Atom® x6211E processor (Dual co, RAM: SODIMM DDR4 slots x 1, up to 32 GB max., Storage: 2.5-inch SSD slots x 2 (SATAIII interface), LAN: 2 per p

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 101508123130 |
| Warranty | 36 |
| Warranty for companies | 36 |
| Brand | MOXA |

## Podrobný popis

Industrial computer – Rackmount 1U computer with Intel Atom® x6425E processor, 4 LAN ports, 2 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureComputerCPU: RKP-A110-E2 Models: Intel Atom® x6211E processor (Dual core, 1.5M cache, 1.30 GHz)RKP-A110-E4 Models: Intel Atom® x6425E processor (Quad core, 1.5M cache, 2.00 GHz)System Memory Slot: SODIMM DDR4 slots x 1, up to 32 GB max.System Memory Pre-installed: 8 GB DDR4Storage Slot: 2.5-inch SSD slots x 2 (SATAIII interface)Storage Pre-installed: RKP-A110-E2-T-Win10/E4-T-Win10: 64 GB SSDSupported OS: Windows Images and Drivers Supported:- Windows 10 IoT Enterprise LTSC 2021 64-bit- Windows 11 Professional 64-bit Linux Drivers Supported:- Debian 11 (kernel 5.10)- Ubuntu 22.04 LTS (kernel 5.15)- RHEL 9 (kernel 5.14)Graphics Controller: Intel® UHD GraphicsComputer InterfaceEthernet Ports: RKP-A110-E2-8L-T/E4-8L-T Models:Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 12RKP-A110-E2-2L4C-T/E4-2L4C-T Models:Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 6RKP-A110-E2-T/E4-T/E2-8C-T/E4-8C-T/E2-T-Win10/E4-T-Win10 Models:Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4Serial Ports: RKP-A110-E2-8C-T/E4-8C-T Models:RS-232/422/485 ports x 10, software selectable (DB9 male)RKP-A110-E2-2L4C-T/4-2L4C-T Models:RS-232/422/485 ports x 6, software selectable (DB9 male)RKP-A110-E2-T/E4-T/E2-8L-T/E4-8L-T/E2-T-Win10/E4-T-Win10 Models:RS-232/422/485 ports x 2, software selectable (DB9 male)USB 3.0: USB 3.0 hosts x 3, type-A connectorsDigital Input: DIs x 8Digital Output: DOs x 8TPM: TPM v2.0Video Output: HDMI 2.0b x 1, (type-A connector)VGA x 1, 15-pin D-sub connector (female)Buttons: Reset button Power buttonEthernet InterfaceMagnetic Isolation Protection: 1.5 kV (built-in)Serial InterfaceBaudrate: 50 bps to 115.2 kbpsConnector: DB9 maleData Bits: 5, 6, 7, 8Parity: None, Even, Odd, Space, MarkStop Bits: 1, 1.5, 2Flow Control: RTS/CTS, XON/XOFFSerial SignalsRS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GNDRS-422: Tx+, Tx-, Rx+, Rx-, GNDRS-485-2w: Data+, Data-, GNDRS-485-4w: Tx+, Tx-, Rx+, Rx-, GNDDigital InputsConnector: Spring-type Euroblock terminalSensor Type: Dry contactDry Contact: Logic 0: Short to GND Logic 1: OpenDigital OutputsConnector: Spring-type Euroblock terminalI/O Type: SinkCurrent Rating: 200 mA per channelVoltage: 0 to 24 VDCLED IndicatorsSystem: Power x 1 Storage x 1LAN: 2 per port (10/100/1000 Mbps)Power ParametersInput Voltage: 12/24 VDCPower Connector: Screw-fastened Euroblock terminalPower Consumption: 50 WPhysical CharacteristicsHousing: MetalIP Rating: IP20Dimensions: 440 x 230 x 43.6 m

## Soubory ke stažení

* [Katalog](https://www.elvac.eu/ipc/download/moxa/datasheet/rkp-a110-series-datasheet-v1.2.pdf)
