# RKP-C110-C5-T

Industrial server, CPU: RKP-C110-C1 models: Intel® Celeron® 6305E "(Dual core, 4M, RAM: SODIMM DDR4 slots x 1, up to 32 GB max., Storage: 2.5-inch SSD slots x 2 (SATAIII interface) RAID 0/1 suppor

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 101508123230 |
| Warranty | 36 |
| Warranty for companies | 36 |
| Brand | MOXA |

## Podrobný popis

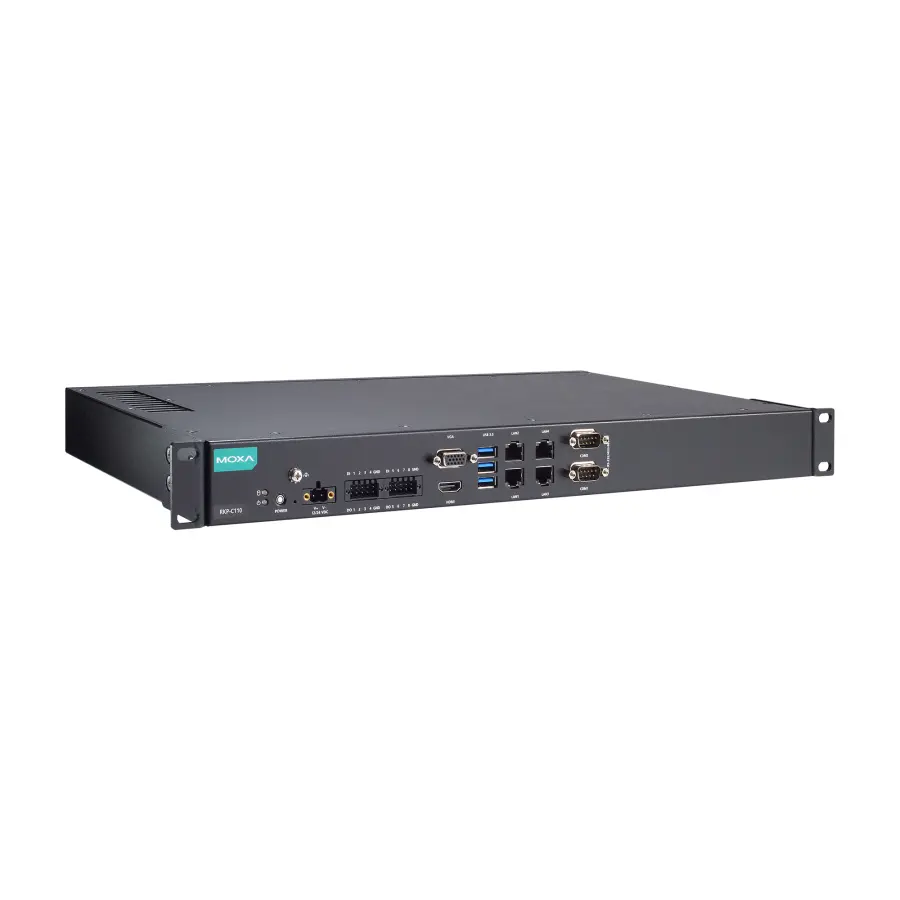

Industrial server – Rackmount 1U computer with Intel® Core™ i5-145G7E processor, 4 LAN ports, 2 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureComputerCPU: RKP-C110-C1 models: Intel® Celeron® 6305E "(Dual core, 4M cache, 1.80 GHz)RKP-C110-C3 models: Intel® Core™ i3-1115G4E (Quad core, 4M cache, 3 GHz, Base: 2.20 GHz)RKP-C110-C5 models: Intel® Core™ i5-1145G7E (Quad core, 8M cache, 2.60 GHz, Base: 1.50 GHz)RKP-C110-C7 models: Intel® Core™ i7-1185G7E (Quad core, 12M cache, 2.80 GHz, Base: 1.80 GHz)System Memory Slot: SODIMM DDR4 slots x 1, up to 32 GB max.System Memory Pre-installed: 8 GB DDR4Storage Slot: 2.5-inch SSD slots x 2 (SATAIII interface) RAID 0/1 supportSupported OS: Windows images and drivers supported:- Windows 11 IoT Ent LTSC 2024 64-bit- Windows 10 IoT Ent LTSC 2021 64-bit- Windows 11 Professional 64-bit- Windows Server 2022 (driver support only)Linux image supported: - Debian 11 (kernel 5.10)Linux drivers supported:- Debian 12 (kernel 6.10)- Ubuntu 22.04 LTS/HWE- RHEL 9 (kernel 5.14)Graphics Controller: Intel® Iris® Xe GraphicsComputer InterfaceEthernet Ports: RKP-C110-C1-8L-T/C3-8L-T/C5-8L-T/C7-8L-T models:Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 12RKP-C110-C1-2L4C-T/C3-2L4C-T/C5-2L4C-T/C7-2L4C-T models:Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 6All other models:Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4Serial Ports: RKP-C110-C1-8C-T/C3-8C-T/C5-8C-T/C7-8C-T models:RS-232/422/485 ports x 10, software selectable (DB9 male)RKP-C110-C1-2L4C-T/C3-2L4C-T/C5-2L4C-T/C7-2L4C-T models:RS-232/422/485 ports x 6, software selectable (DB9 male)All other models:RS-232/422/485 ports x 2, software selectable (DB9 male)USB 3.0: USB 3.0 hosts x 3, type-A connectorsDigital Input: DIs x 8Digital Output: DOs x 8TPM: TPM v2.0Video Output: HDMI 2.0b x 1, (type A connector)VGA x 1, 15-pin D-sub connector (female)Buttons: Reset button Power buttonEthernet InterfaceMagnetic Isolation Protection: 1.5 kV (built-in)Serial InterfaceBaudrate: 50 bps to 115.2 kbpsConnector: DB9 maleData Bits: 5, 6, 7, 8Parity: None, Even, Odd, Space, MarkStop Bits: 1, 1.5, 2Flow Control: RTS/CTS, XON/XOFFSerial SignalsRS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GNDRS-422: Tx+, Tx-, Rx+, Rx-, GNDRS-485-2w: Data+, Data-, GNDRS-485-4w: Tx+, Tx-, Rx+, Rx-, GNDDigital InputsConnector: Spring-type Euroblock terminalSensor Type: Dry contactDry Contact: Logic 0: Short to GND Logic 1: OpenDigital OutputsConnector: Spring-type Euroblock terminalI/O Type: SinkCurrent Rating: 200 mA per channelVoltage: 0 to 24 VDCLED IndicatorsSystem: Power x 1 Storage x 1LAN: 2 per port (10/100/1000 Mbps)Power ParametersInput Voltage: 12/24 VDC 2HV-T models: 100 to 240 VAC/VDCPower Connector: Screw-fastened Euroblock te

## Soubory ke stažení

* [Katalog](https://www.elvac.eu/ipc/download/moxa/datasheet/rkp-c110-series-datasheet-v1.0.pdf)
