RKP-C110-C5-T-Win10

Features and Benefits

•  1U rackmount computer with fanless design
•  11th Gen Intel® Celeron®, or Intel® Core™ i5 or i7 processor
•  Rich interface options for up to 12 LAN ports and up to 10 serial ports
•  Standard form factor that fits most field applications
•  Unified front-panel connectivity design for easy access of interfaces
•  -30 to 60°C operating temperature range

Introduction

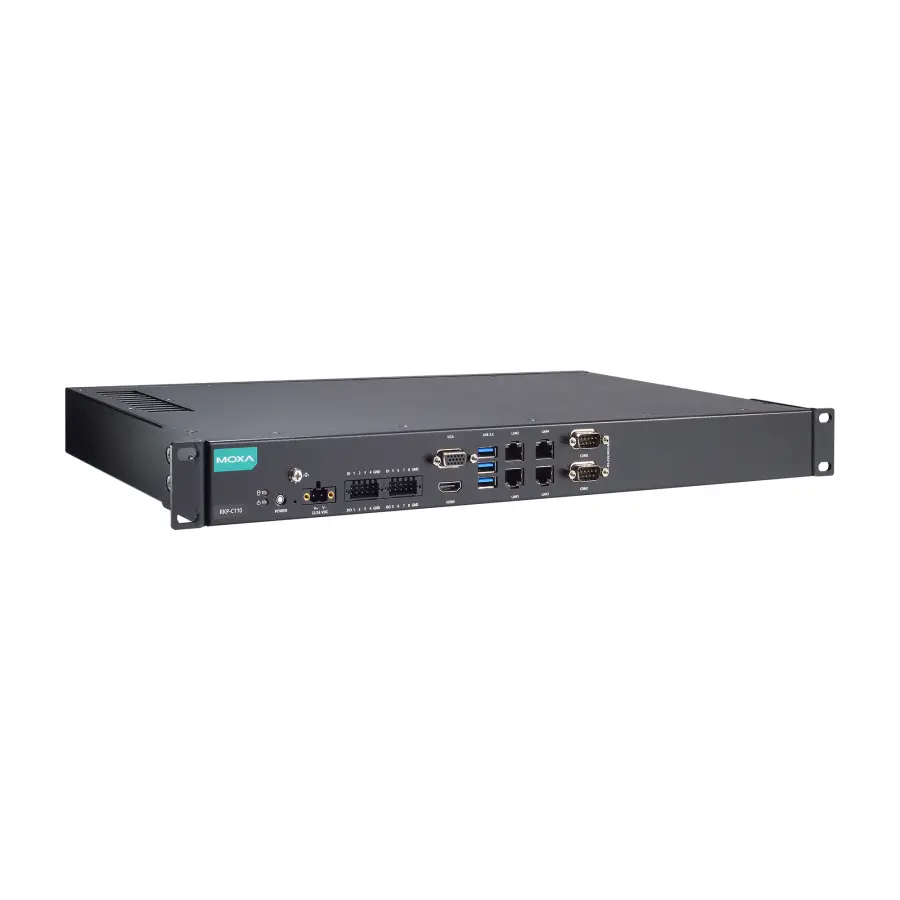

The RKP-C110 rackmount computers are powered by 11th Gen Intel® Celeron®, or Intel® Core™ i5 or i7 processor. The computers come with a rich set of interface options including up to up to 12 Gigabit Ethernet ports, 10 software-selectable RS-232/422/485 serial ports, and 8 digital inputs and 8 digital outputs. The communication interfaces are all located on the front panel for enabling easy access and convenient expansion for industrial applications. Two hand-rotated 2.5” SSD storages and an outer replaceable RTC battery design deliver a reliable, durable, and versatile platform for a more user-friendly option.

Designed as 1U standard form factor fanless rackmount computers with an operating temperature range of -30 to 60°C and a build-in TPM 2.0 module, the RKP-C110 computers are ideal as reliable and secure computing platforms for industrial applications in extreme operating environments.
