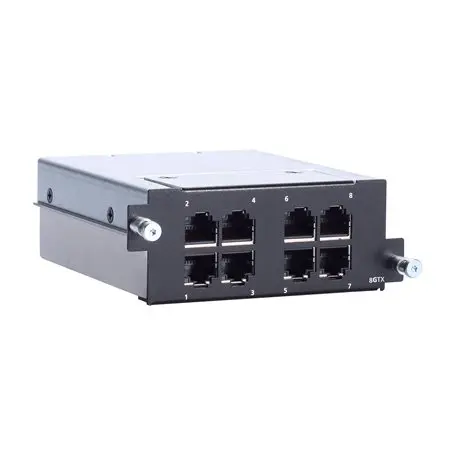

RM-G4000-8GTX

Industrial networking device – Gigabit Ethernet module with 8 10/100/1000BaseT(X) ports

Ethernet Interface

• 10/100/1000BaseT(X) Ports (RJ45 connector): 8
• Optical Fiber: Read more 100BaseFX Multi-Mode Single-Mode Fiber Cable Type OM1 50/125 µm G.652 800 MHz x km Typical Distance 4 km 5 km 40 km Wavelength Typical (nm) 1300 1310 TX Range (nm) 1260 to 1360 1280 to 1340 RX Range (nm) 1100 to 1600 1100 to 1600 Optical Power TX Range (dBm) -10 to -20 0 to -5 RX Range (dBm) -3 to -32 -3 to -34 Link Budget (dB) 12 29 Dispersion Penalty (dB) 3 1 Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Power Parameters

• Power Consumption (Max.): 4.22 W

Physical Characteristics

• Weight: 300 g (0.66 lb)

MTBF

• Time: 12,132,675 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
