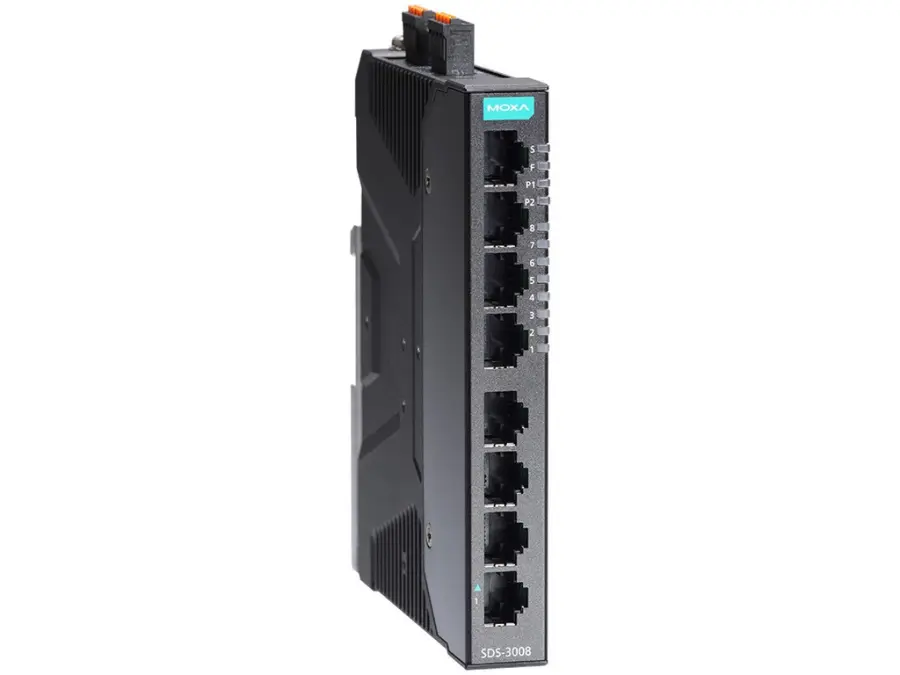

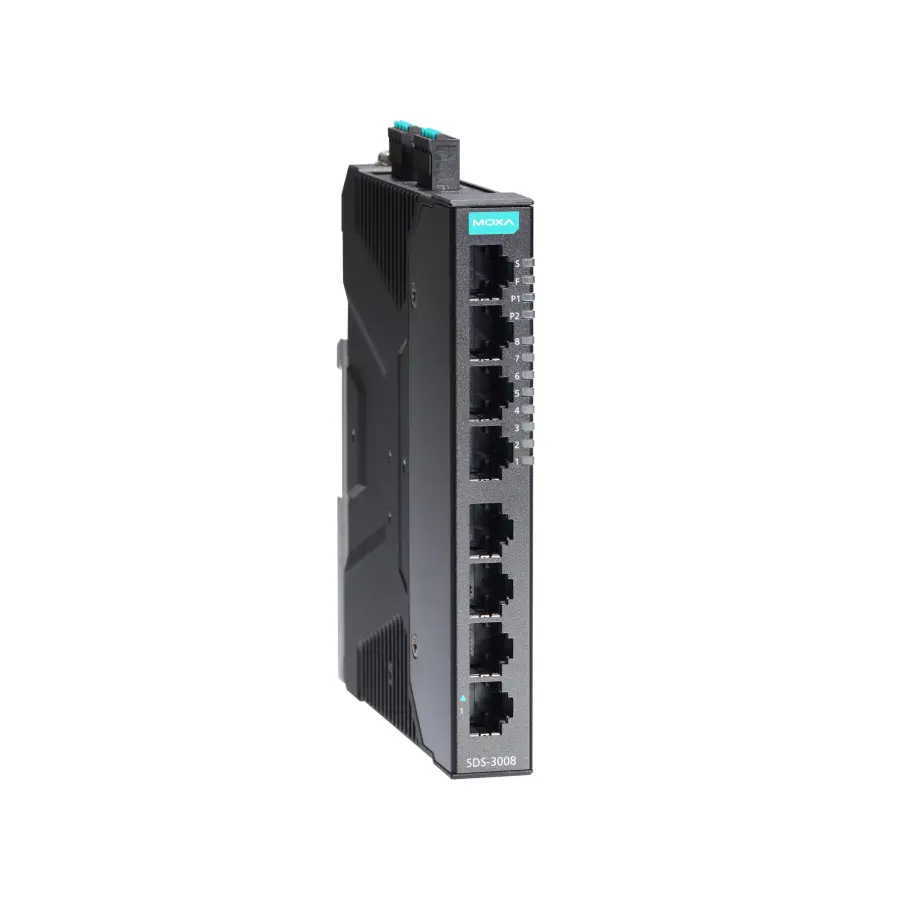

# SDS-3008-T

Industrial Smart Ethernet switch, Ports: 8 Auto negotiation speed Full/Half duplex mode Auto MDI/M, SFP: Back Pressure Flow Control DHCP Client Fiber check Flow c, Temp: -40 to 75°C (-40 to 167

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180408115560 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial Smart Ethernet switch – Compact industrial smart Ethernet switch with 8 10/100BaseT(X) ports, dual 12/24/48 VDC power inputs, -40 to 75°C operating temperatureEthernet Interface10/100BaseT(X) Ports (RJ45 connector): 8 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connectionStandards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of ServiceEthernet Software FeaturesIndustrial Protocols: EtherNet/IP Modbus TCP, PROFINET, IO Device MECHATROLINK-4Management: Back Pressure Flow Control DHCP Client Fiber check Flow control IPv4/IPv6 LLDP Port Mirroring RMON SNMP Inform SNMPv1/v2c/v3 SyslogMIB: RFC1213 Ethernet-like MIB, IF, MIB, LLDP MIB Bridge MIB Q-BRIDGE MIBRedundancy Protocols: RSTP, STP, MRPSecurity: Broadcast storm protection HTTPS/SSL SNMPv3 Port Lock Trust access controlTime Management: NTP Server/Client SNTPFilter: 802.1Q VLANRotary Switch ConfigurationIndustrial Profile: Read more Indicator Mode 0 No function enabled via DIP switch (Default) 1 PROFINET profile enabled 2 PROFINET profile and DHCP client enabled 3 EtherNet/IP profile enabled 4 EtherNet/IP profile and DHCP client enabled 5 Modbus TCP profile enabled 6 Modbus TCP profile and DHCP client enabled 7 MECHATROLINK-4 profile enabled 8-9 Reserved (currently performs the same behavior as indicator 0)Switch PropertiesJumbo Frame Size: 9.6 KBMAC Table Size: 8 KMax. No. of VLANs: 8VLAN ID Range: VID 1 to 4094Packet Buffer Size: 3 MbitsLED InterfaceLED Indicators: PWR1, PWR2, STATE, FAULT, 10/100M (TP Port)USB InterfaceStorage Port: USB Type A (for ABC-02 only)Input/Output InterfaceAlarm Contact Channels: 1 Relay output with current carrying capacity of 1 A @ 24 VDCButtons: Reset buttonDigital Input Channels: 1Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mAPower ParametersConnector: 2 removable 4-contact terminal block(s)Input Voltage: 12-48 VDC Redundant dual inputsOperating Voltage: 9.6 to 60 VDCInput Current: 0.76 max. A @ 12-48 VDCPower Consumption (Max.): 5.54 WOverload Current Protection: SupportedReverse Polarity Protection: SupportedPhysical CharacteristicsHousing: MetalIP Rating: IP40Dimensions: 20 x 135 x 111 mm (0.79 x 5.32 x 4.37 in)Weight: 427 g (0.94 lb)Installation: DIN-rail mounting Wall mounting (with optional kit)Environmental LimitsOperating Temperature: -40 to 75°C (-40 to 167°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and CertificationsEMC: EN 55032/35 EN 61000-6-2/-6-4EMI:

## Technická specifikace

| Vlastnost | Hodnota |
| --- | --- |
| Min. provozní teplota | Min. provozní teplota
-40 °C |
| Max. provozní teplota | Max. provozní teplota
75 °C |
| Celkový počet LAN portů | Celkový počet LAN portů
8 |
| Počet metalických LAN portů | Počet metalických LAN portů
8 |
| Počet portů max 100 Mb | Počet portů max 100 Mb
8 |
| Normy | Normy
UL 508 / UL 60950-1 |
| Způsob montáže | Způsob montáže
DIN/Panel |
