title: "SDS-G3006-4PoE-2GTXSFP-T"
category: "Industrial Communication > Industrial Ethernet > Managed Ethernet Switches"
---

**Kategorie:** Industrial Communication > Industrial Ethernet > Managed Ethernet Switches

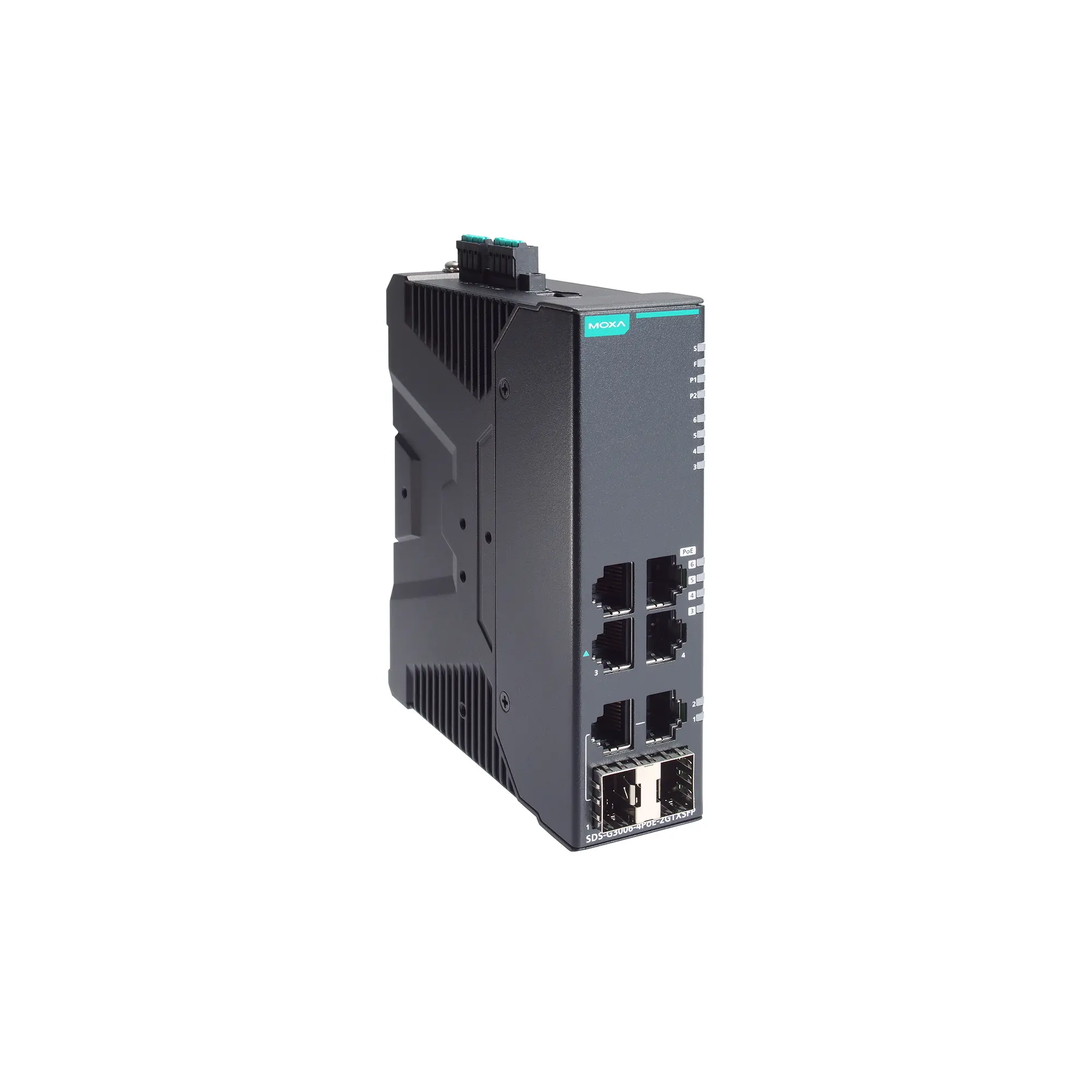

# SDS-G3006-4PoE-2GTXSFP-T

Industrial Managed PoE Ethernet switch, Ports: 4, SFP: 2, PoE: 4, Temp: Standard Models: -10 to 60°C (14 to 140°F)Wide Temp. Mode, Power: 12-48 VDC Redundant dual inputs

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180408115741 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial Managed PoE Ethernet switch – Compact industrial full Gigabit smart Ethernet switch with 4 PoE/PoE+ 10/100/1000BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, dual 12/24/48 VDC power inputs, -40 to 75°C operating temperatureEthernet Interface10/100/1000BaseT(X) Ports (RJ45 connector): 4Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP): 2PoE Ports (10/100/1000BaseT(X), RJ45 connector): 4Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of ServiceEthernet Software FeaturesIndustrial Protocols: EtherNet/IP Modbus TCP, PROFINET, IO Device MECHATROLINK-4Management: Back Pressure Flow Control DHCP Client Fiber check Flow control IPv4/IPv6 LLDP Port Mirroring RMON SNMP Inform SNMPv1/v2c/v3 SyslogMIB: RFC1213 Ethernet-like MIB, IF, MIB, LLDP MIB Bridge MIB Q-BRIDGE MIBRedundancy Protocols: RSTP, STP, MRPSecurity: Broadcast storm protection HTTPS/SSL SNMPv3 Port Lock Trust access controlTime Management: NTP Server/Client SNTPFilter: 802.1Q VLANRotary Switch ConfigurationIndustrial Profile: Read more Indicator Mode 0 No function enabled via DIP switch (Default) 1 PROFINET profile enabled 2 PROFINET profile and DHCP client enabled 3 EtherNet/IP profile enabled 4 EtherNet/IP profile and DHCP client enabled 5 Modbus TCP profile enabled 6 Modbus TCP profile and DHCP client enabled 7 MECHATROLINK-4 profile enabled 8-9 Reserved (currently performs the same behavior as indicator 0)Switch PropertiesJumbo Frame Size: 9.6 KBMAC Table Size: 8 KMax. No. of VLANs: 8VLAN ID Range: VID 1 to 4094Packet Buffer Size: 3 MbitsLED InterfaceLED Indicators: PWR1, PWR2, STATE, FAULT, 10/100M (TP Port), 1000M (TP port), 10/100/1000M (Gigabit Combo port), smart PoE LED (SDS-G3006-4PoE-2GTXSFP(-T) models only)USB InterfaceStorage Port: USB Type A (for ABC-02 only)Input/Output InterfaceAlarm Contact Channels: 1 Relay output with current carrying capacity of 1 A @ 24 VDCButtons: Reset buttonDigital Input Channels: 1Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mAPower ParametersConnection: 2 removable 4-contact terminal block(s)Input Voltage: 12-48 VDC Redundant dual inputsOperating Voltage: 9.6 to 57 VDCInput Current: 0.85 max. A @ 12-48 VDCPower Budget: Max. 120 W for total PD consumption @ 48 VDC inputMax. 90 W for total PD consumption @ 24 VDC inputMax. 45 W for total PD consumption @ 12 VDC inputMax. 36 W for each PoE portPower Consumption (Max.): 11.34 W full loading without PDs’ consumptionOverload Current Protection: SupportedReverse Polarity Protection: SupportedPhysical CharacteristicsHousing: MetalIP Rating: IP40Dimensions: 36 x 135 x 111 mm (1.42 x 5.32 x 4.37 in)Weight:<
