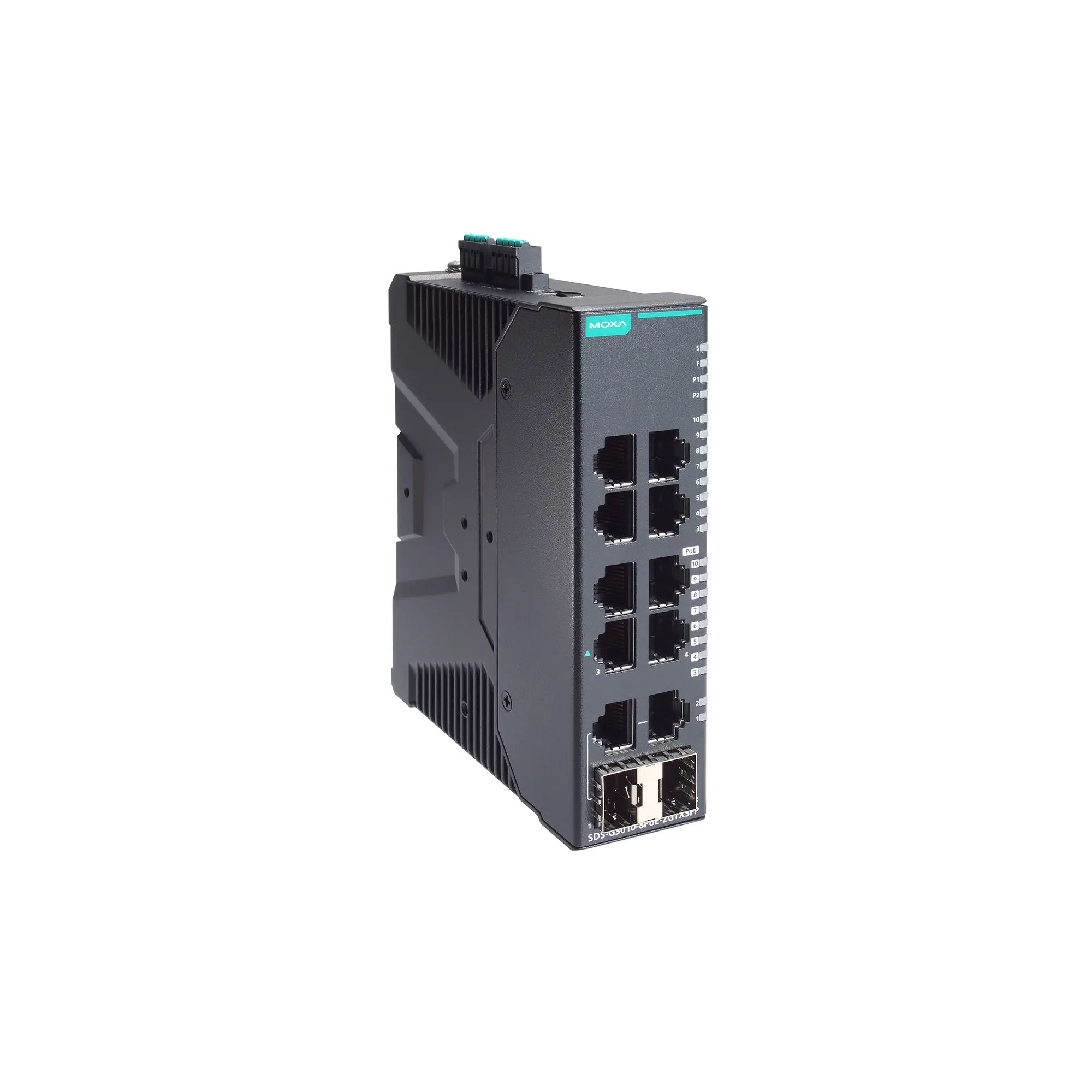

# SDS-G3010-8PoE-2GTXSFP-T

Industrial Managed PoE Ethernet switch, Ports: 8, SFP: 2, PoE: 8, Temp: Standard Models: -10 to 60°C (14 to 140°F)Wide Temp. Mode, Power: 48 VDC

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180408115831 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial Managed PoE Ethernet switch – Compact industrial full Gigabit smart Ethernet switch with 8 PoE/PoE+ 10/100/1000BaseT(X) ports, 2 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, dual 12/24/48 VDC power inputs, -40 to 75°C operating temperatureEthernet Interface10/100/1000BaseT(X) Ports (RJ45 connector): 8Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP): 2PoE Ports (10/100/1000BaseT(X), RJ45 connector): 8Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of ServiceEthernet Software FeaturesIndustrial Protocols: EtherNet/IP Modbus TCP, PROFINET, IO Device MECHATROLINK-4Management: Back Pressure Flow Control DHCP Client Fiber check Flow control IPv4/IPv6 LLDP Port Mirroring RMON SNMP Inform SNMPv1/v2c/v3 SyslogMIB: RFC1213 Ethernet-like MIB, IF, MIB, LLDP MIB Bridge MIB Q-BRIDGE MIBRedundancy Protocols: RSTP, STP, MRPSecurity: Broadcast storm protection HTTPS/SSL Port Lock SNMPv3 Trust access controlTime Management: NTP Server/Client SNTPFilter: 802.1Q VLANRotary Switch ConfigurationIndustrial Profile: Read more Indicator Mode 0 No function enabled via DIP switch (Default) 1 PROFINET profile enabled 2 PROFINET profile and DHCP client enabled 3 EtherNet/IP profile enabled 4 EtherNet/IP profile and DHCP client enabled 5 Modbus TCP profile enabled 6 Modbus TCP profile and DHCP client enabled 7 MECHATROLINK-4 profile enabled 8-9 Reserved (currently performs the same behavior as indicator 0)Switch PropertiesJumbo Frame Size: 9.6 KBMAC Table Size: 8 KMax. No. of VLANs: 8VLAN ID Range: VID 1 to 4094Packet Buffer Size: 3 MbitsLED InterfaceLED Indicators: PWR1, PWR2, STATE, FAULT, 10/100M (TP Port), 1000M (TP port), 10/100/1000M (Gigabit Combo port), smart PoE LED (SDS-G3010-8PoE-2GTXSFP(-T) models only)USB InterfaceStorage Port: USB Type A (for ABC-02 only)Input/Output InterfaceAlarm Contact Channels: 1 Relay output with current carrying capacity of 1 A @ 24 VDCButtons: Reset buttonDigital Input Channels: 1Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mAPower ParametersConnection: 2 removable 4-contact terminal block(s)Input Voltage: 48 VDCOperating Voltage: 44 to 57 VDCInput Current: 0.28 max. A @ 48 VDCPower Budget: Max. 240 W for total PD consumption @ 48 VDC inputMax. 36 W for each PoE portPower Consumption (Max.): 13.15 W full loading without PDs’ consumptionOverload Current Protection: SupportedReverse Polarity Protection: SupportedPhysical CharacteristicsHousing: MetalIP Rating: IP40Dimensions: 36 x 135 x 111 mm (1.42 x 5.32 x 4.37 in)Weight: 795 g (1.75 lb)Installation: DIN-rail mounting Wall mounting (with optional kit)
