Description

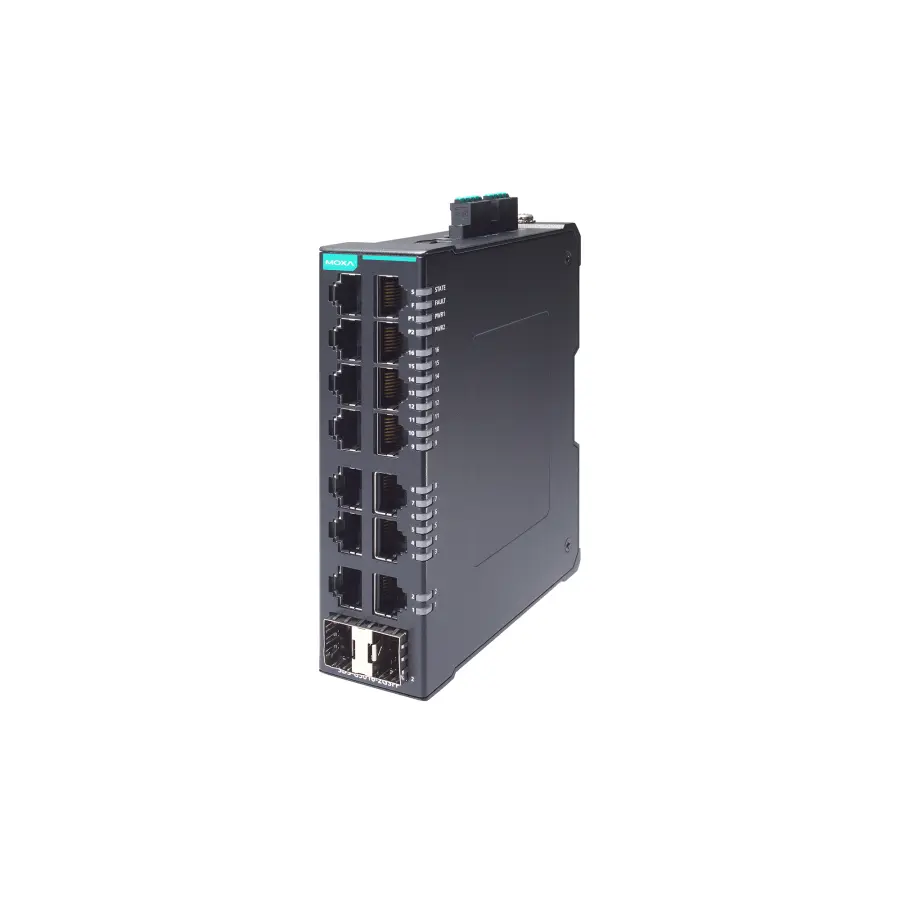

Industrial Managed Ethernet switch – Compact industrial full Gigabit smart Ethernet switch with 14 10/100/1000BaseT(X) ports, 2 100/1000BaseSFP ports, dual 12/24/48 VDC power inputs, -40 to 75°C operating temperature
Ethernet Interface
- 10/100/1000BaseT(X) Ports (RJ45 connector): 14
- 100/1000BaseSFP Slots: 2
- Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service
Ethernet Software Features
- Industrial Protocols: EtherNet/IP Modbus TCP PROFINET IO Device MECHATROLINK-4
- Management: Back Pressure Flow Control DHCP Client Fiber check Flow control IPv4/IPv6 LLDP Port Mirroring RMON SNMP Inform SNMPv1/v2c/v3 Syslog
- MIB: RFC1213 Ethernet-like MIB IF MIB LLDP MIB Bridge MIB Q-BRIDGE MIB
- Redundancy Protocols: RSTP STP MRP
- Security: Broadcast storm protection HTTPS/SSL SNMPv3 Port Lock Trust access control
- Time Management: NTP Server/Client SNTP
- Filter: 802.1Q VLAN
Rotary Switch Configuration
- Industrial Profile: Read more Indicator Mode 0 No function enabled via DIP switch (Default) 1 PROFINET profile enabled 2 PROFINET profile and DHCP client enabled 3 EtherNet/IP profile enabled 4 EtherNet/IP profile and DHCP client enabled 5 Modbus TCP profile enabled 6 Modbus TCP profile and DHCP client enabled 7 MECHATROLINK-4 profile enabled 8-9 Reserved (currently performs the same behavior as indicator 0)
Switch Properties
- Jumbo Frame Size: 9.6 KB
- MAC Table Size: 8 K
- Max. No. of VLANs: 8
- VLAN ID Range: VID 1 to 4094
- Packet Buffer Size: 3 Mbits
LED Interface
- LED Indicators: PWR1, PWR2, STATE, FAULT, 10/100M (TP Port), 1000M (TP port), 100/1000M (SFP port)
USB Interface
- Storage Port: USB Type A (for ABC-02 only)
Input/Output Interface
- Alarm Contact Channels: 1 Relay output with current carrying capacity of 1 A @ 24 VDC
- Buttons: Reset button
- Digital Input Channels: 1
- Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA
Power Parameters
- Connection: 2 removable 4-contact terminal block(s)
- Input Voltage: 12-48 VDC Redundant dual inputs
- Operating Voltage: 9.6 to 60 VDC
- Input Current: 12 to 48 VDC, 1.29 A (max)
- Power Consumption (Max.): 15.49 W
- Overload Current Protection: Supported
- Reverse Polarity Protection: Supported
Physical Characteristics
- Housing: Metal
- IP Rating: IP40
- Dimensions: 36 x 135 x 111 mm (1.42 x 5.32 x 4.37 in)
- Weight: 796 g (1.75 lb)
- Installation: DIN-rail mounting Wall mounting (with optional kit)
Environmental Limits
- Operating Temperature: Standard Models: -10 to 60°C (14 to 140°F)Wide Temp. Models: -40 to 75°C (-40 to 167°F) -10 to 60°C (14 to 140°F) -40 to 75°C (-40 to 167°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35 EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 800 MHz: 10 V/m; 800 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (1.2/50 μs), 1 kV (10/700 μs) IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Safety: EN IEC 62368-1 UL 61010-2-201
- Shock: IEC 60068-2-27
- Freefall: IEC 60068-2-32
- Vibration: IEC 60068-2-6
MTBF
- Time: 2,844,904 hrs
- Standards: Telcordia (Bellcore), GB
