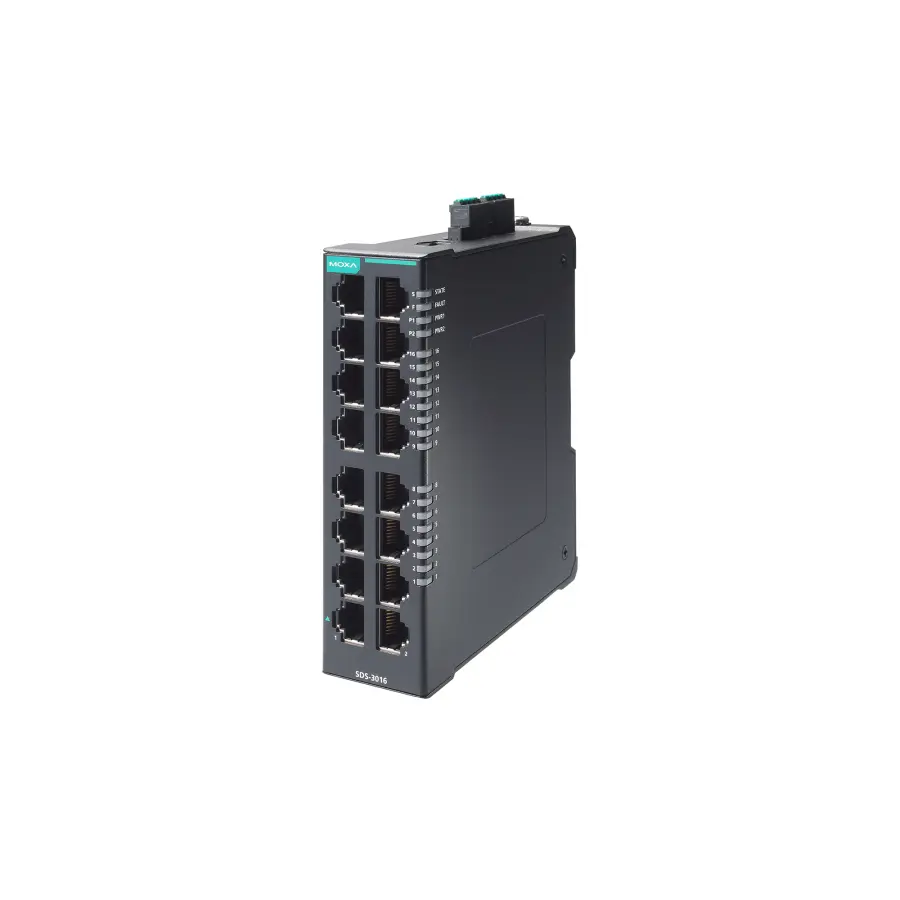

SDS-G3016-T

Industrial Managed Ethernet switch – Compact industrial full Gigabit smart Ethernet switch with 16 10/100/1000BaseT(X) ports, dual 12/24/48 VDC power inputs, -40 to 75°C operating temperature

Ethernet Interface

• 10/100/1000BaseT(X) Ports (RJ45 connector): 16
• Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service

Ethernet Software Features

• Industrial Protocols: EtherNet/IP Modbus TCP, PROFINET, IO Device MECHATROLINK-4
• Management: Back Pressure Flow Control DHCP Client Fiber check Flow control IPv4/IPv6 LLDP Port Mirroring RMON SNMP Inform SNMPv1/v2c/v3 Syslog
• MIB: RFC1213 Ethernet-like MIB, IF, MIB, LLDP MIB Bridge MIB Q-BRIDGE MIB
• Redundancy Protocols: RSTP, STP, MRP
• Security: Broadcast storm protection HTTPS/SSL SNMPv3 Port Lock Trust access control
• Time Management: NTP Server/Client SNTP
• Filter: 802.1Q VLAN

Rotary Switch Configuration

• Industrial Profile: Read more Indicator Mode 0 No function enabled via DIP switch (Default) 1 PROFINET profile enabled 2 PROFINET profile and DHCP client enabled 3 EtherNet/IP profile enabled 4 EtherNet/IP profile and DHCP client enabled 5 Modbus TCP profile enabled 6 Modbus TCP profile and DHCP client enabled 7 MECHATROLINK-4 profile enabled 8-9 Reserved (currently performs the same behavior as indicator 0)

Switch Properties

• Jumbo Frame Size: 9.6 KB
• MAC Table Size: 8 K
• Max. No. of VLANs: 8
• VLAN ID Range: VID 1 to 4094
• Packet Buffer Size: 3 Mbits

LED Interface

• LED Indicators: PWR1, PWR2, STATE, FAULT, 10/100M (TP Port), 1000M (TP port), 100/1000M (SFP port)

USB Interface

• Storage Port: USB Type A (for ABC-02 only)

Input/Output Interface

• Alarm Contact Channels: 1 Relay output with current carrying capacity of 1 A @ 24 VDC
• Buttons: Reset button
• Digital Input Channels: 1
• Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA

Power Parameters

• Connection: 2 removable 4-contact terminal block(s)
• Input Voltage: 12-48 VDC Redundant dual inputs
• Operating Voltage: 9.6 to 60 VDC
• Input Current: 12 to 48 VDC, 1.08 A (max)
• Power Consumption (Max.): 12.95 W
• Overload Current Protection: Supported
• Reverse Polarity Protection: Supported

Physical Characteristics

• Housing: Metal
• IP Rating: IP40
• Dimensions: 36 x 135 x 111 mm (1.42 x 5.32 x 4.37 in)
• Weight: 772 g (1.70 lb)
• Installation: DIN-rail mounting Wall mounting (with optional kit)

Environmental Limits

• Operating Temperature: Standard Models: -10 to 60°C (14 to 140°F)Wide Temp. Models: -40 to 75°C (-40 to 167°F) -10 to 60°C (14 to 140°F) -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)
