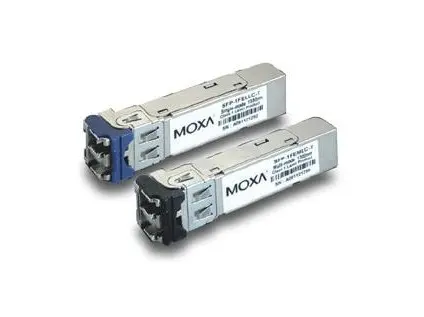

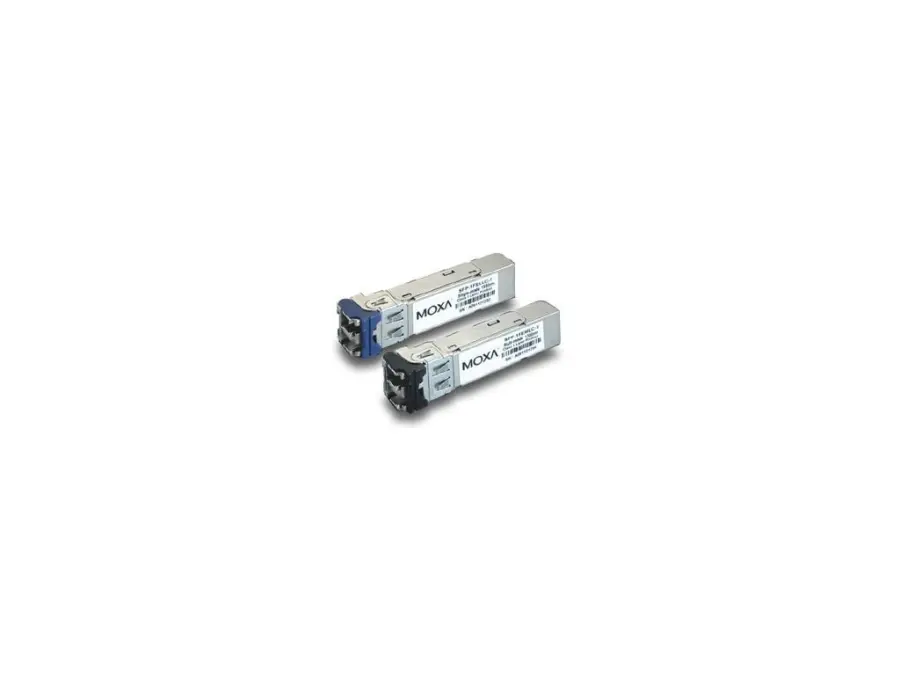

SFP-1FEMLC-T

Power supply – SFP module with 1 100Base multi-mode, LC connector for 2/4 km transmission, -40 to 85°C operating temperature

Ethernet Interface

• Ports: 1
• Connectors: Duplex LC connector
• Optical Fiber: Read more Fast Ethernet SFP SFP-M SFP-S SFP-L Transceiver Type Multi-Mode Single-mode Fiber Cable Type OM1/OM2/OM3/OM4 62.5/125, 50/125 µm G.652 G.652 800 MHz x km Typical Distance 2 km 4 km 40 km 80 km Wavelength Typical (nm) 1310 1310 1550 TX Range (nm) 1280 to 1340 1280 to 1340 1530 to 1570 RX Range (nm) 1100 to 1650 1100 to 1600 1100 to 1600 Optical Power TX Range (dBm) -8 to -18 0 to -5 0 to -5 RX Range (dBm) -3 to -32 -3 to -34 -3 to -34 Link Budget (dB) 14 29 29 Dispersion Penalty (dB) 2 3 1 1 Note: When connecting the SFP-S or L, we recommend using an attenuator to prevent damage caused by excessive optical power.

Power Parameters

• Power Consumption: Max. 1 W

Environmental Limits

• Operating Temperature: -40 to 85°C (-40 to 185°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• Safety: UL 62368-1 IEC 62368-1 IEC 60825-1
• EMC: EN 55032/35
• EMI: FCC Part 15B Class Test Report ICES-003: 2020 Issue 7
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV / 2 kV(AC), 0.5 kV(DC); Signal: 1 kV IEC 61000-4-6 CS: 0.15 MHz to 10 MHz: 3 V, 10 MHz to 30 MHz: 3 to 1 V, 30 MHz to 80 MHz: 1V IEC 61000-4-8 PFMF: 1 A/m at 50 Hz IEC61000-4-11 Voltage Dips and Interruption
• Maritime: DNV

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
