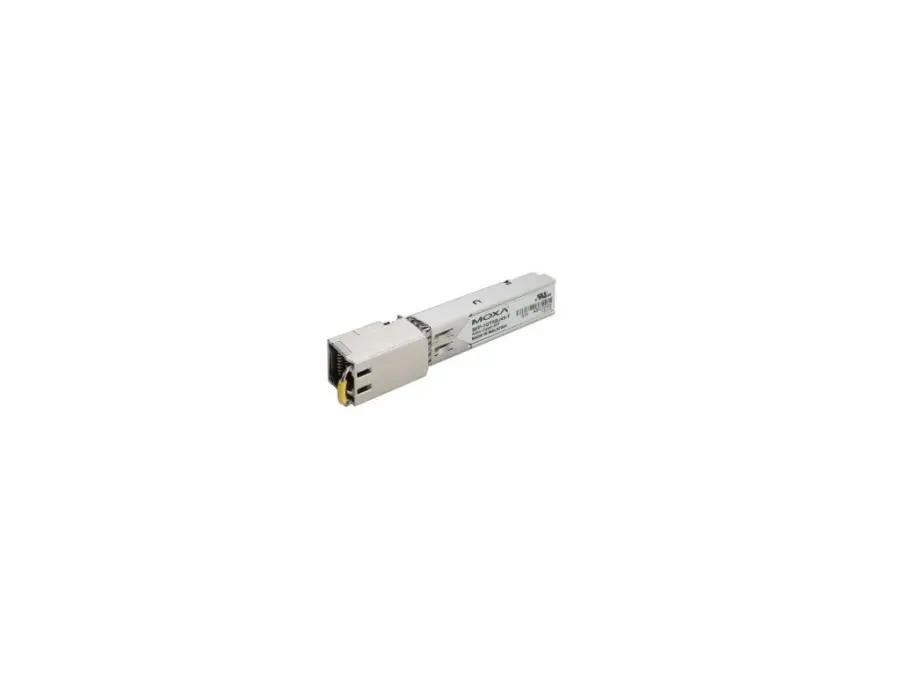

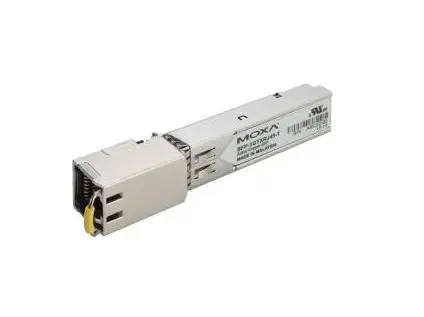

SFP-1GTXRJ45-T

Power supply – SFP module with 1 1000BaseT port with RJ45 connector for 100 m transmission, -40 to 75°C operating temperature

Ethernet Interface

• Ports: 1
• 1000BaseT(X) Ports (RJ45 connector): 1
• Note: The port can not be used for Turbo Ring v1, Turbo Ring v2, and Turbo Chain.

Power Parameters

• Power Consumption: Max. 1.2 W

Environmental Limits

• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)

Standards and Certifications

• Safety: CE, FCC, EN 60825-1 UL 60950-1
• Maritime: DNV

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
