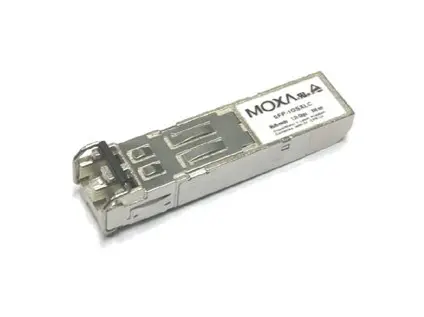

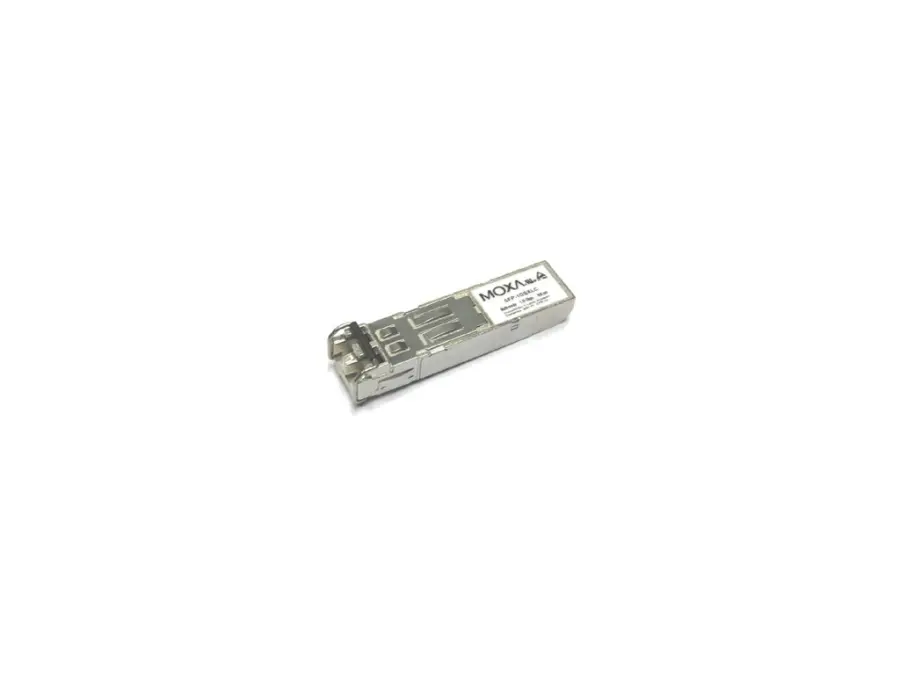

SFP-1GZXLC-T

Power supply – SFP module with 1 1000BaseZX port with LC connector for 80 km transmission, -40 to 85°C operating temperature

Ethernet Interface

• Ports: 1
• Connectors: Duplex LC connector Simplex LC connector (WDM-type only)
• Optical Fiber: Read more Gigabit Ethernet SFP SFP-SX SFP-LSX Transceiver Type Multi-Mode Multi-Mode Fiber Cable Type OM1 OM2 OM3 OM4 OM1 OM2 OM3 OM4 Typical Distance 300 m 550 m 1 km 1 km 500 m/2 km* 500 m/1 km* 500 m 500 m Wavelength Typical (nm) 850 1310 TX Range (nm) 830 to 860 1270 to 1355 RX Range (nm) 770 to 860 1260 to 1610 Optical Power TX Range (dBm) -4 to -9.5 -1 to -9 RX Range (dBm) 0 to -18 -1 to -19 Link Budget (dB) 8.5 10 Dispersion Penalty (dB) 4.3 3.6 4.5 4.5 5 Note: When connecting the SFP-LHX, ZX, EZX, or EZX-120, we recommend using an attenuator to prevent the transceiver from being damaged by excessive optical power.*SFP-LSX OM1 and OM 2 can only reach the listed maximum distance when using fiber cables from specific vendors. When using other fiber cables, the reach is limited to 500 m. Refer to https://www.moxa.com/en/support/product-support/product-faq for a list of supported fiber cable vendors.
• Optical Fiber: Read more Gigabit Ethernet SFP SFP-LX SFP-LH Transceiver Type Single-mode Single-mode Fiber Cable Type G.652 G.652 Typical Distance 10 km 30 km Wavelength Typical (nm) 1310 1310 TX Range (nm) 1280 to 1355 1280 to 1355 RX Range (nm) 1260 to 1610 1260 to 1610 Optical Power TX Range (dBm) -3 to -9 -3 to -8 RX Range (dBm) -3 to -21 -3 to -23 Link Budget (dB) 12 15 Dispersion Penalty (dB) 1 1 Note: When connecting the SFP-LHX, ZX, EZX, or EZX-120, we recommend using an attenuator to prevent the transceiver from being damaged by excessive optical power.
• Optical Fiber: Read more Gigabit Ethernet SFP SFP-LHX SFP-ZX SFP-EZX SFP-EZX-120 Transceiver Type Single-mode Single-mode Single-mode Single-mode Fiber Cable Type G.652 G.652 G.652 G.652 Typical Distance 40 km 80 km 110 km 120 km Wavelength Typical (nm) 1310 1550 1550 1550 TX Range (nm) 1280 to 1340 1530 to 1570 1530 to 1570 1530 to 1570 RX Range (nm) 1260 to 1610 1260 to 1610 1260 to 1610 1100 to 1600 Optical Power TX Range (dBm) +3 to -4 +5 to 0 +5 to 0 +3 to -2 RX Range (dBm) -1 to -24 -1 to -24 -9 to -30 -8 to -33 Link Budget (dB) 20 24 30 31 Dispersion Penalty (dB) 1 1 1 2 Note: When connecting the SFP-LHX, ZX, EZX, or EZX-120, we recommend using an attenuator to prevent the transceiver from being damaged by excessive optical power.
• Optical Fiber: Read more WDM Gigabit Ethernet SFP SFP-10A SFP-10B SFP-20A SFP-20B Transceiver Type Single-mode Single-mode Fiber Cable Type G.652 G.652 Typical Distance 10 km 20 km Wavelength Typical (nm) TX 1310, RX 1550 TX 1550, RX 1310 TX 1310, RX 1550 TX 1550, RX 1310 TX Range (nm) 1270 to 1355 1530 to 1570 1270 to 1355 1530 to 1570 RX Range (nm) 1480 to 1580 1260 to 1360 1480 to 1580 1260 to 1360 Optical Power TX Range (dBm) -3 to -9 -2 to -8 RX Range (dBm) -3 to -21 -2 to -23 Link Budget (dB) 12 15 Dispersion Penalty (dB) 2 3 Note: WDM-type SFP modules must be used in pairs (e.g., SFP-1G10ALC and SFP-1G10BLC). Note: When connecting the SFP-40A and 40B, we recommend using an attenuator to prevent damage caused by excessive optical power.
• Optical Fiber: Read more WDM Gigabit Ethernet SFP SFP-40A SFP-40B Transceiver Type Single-mode Fiber Cable Type G.652 Typical Distance 40 km Wavelength Typical (nm) TX 1310, RX 1550 TX 1550, RX 1310 TX Range (nm) 1290 to 1330 1530 to 1570 RX Range (nm) 1480 to 1580 1260 to 1360 Optical Power TX Range (dBm) +2 to -3 RX Range (dBm) -1 to -23 Link Budget (dB) 20 Dispersion Penalty (dB) 1 Note: WDM-type SFP modules must be used in pairs (e.g., SFP-1G10ALC and SFP-1G10BLC). Note: When connecting the SFP-40A and 40B, we recommend using an attenuator to prevent damage caused by excessive optical power.
• Optical Fiber: Typical Distance: To reach the typical distance of specified fiber transceiver, please refer to formula: Link budget(dB) > dispersion penalty(dB) + total link loss(dB)

Power Parameters

• Power Consumption: Max. 1 W

Environmental Limits

• Operating Temperature: -40 to 85°C (-40 to 185°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• Safety: UL 62368-1 IEC 62368-1 IEC 60825-1
• EMC: EN 55032/35
• EMI: FCC 15B Test Report ICES-003: 2020 Issue 7
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV / 2 kV(AC), 0.5 kV(DC); Signal: 1 kV IEC 61000-4-6 CS: 0.15 MHz to 10 MHz: 3 V, 10 MHz to 30 MHz: 3 to 1 V, 30 MHz to 80 MHz: 1V IEC 61000-4-8 PFMF: 1 A/m at 50 Hz IEC61000-4-11 Voltage Dips and Interruption
• Maritime: DNV

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
