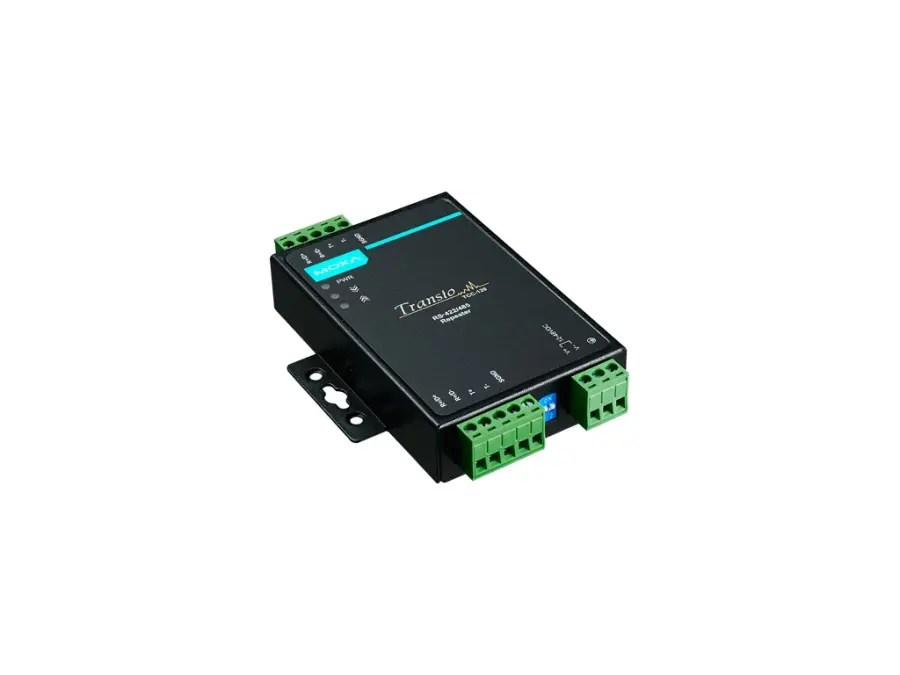

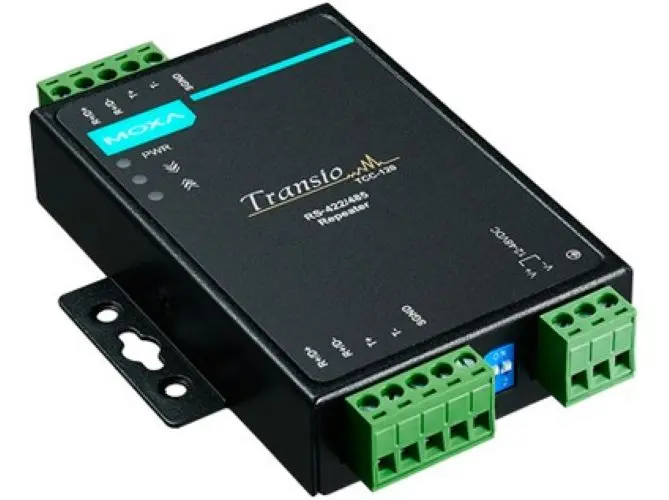

# TCC-120I

Serial converter, Serial: RS-422 RS-485, Temp: -20 to 60°C (-4 to 140°F), Power: 1

**Dostupnost:** In stock (2 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 181612021020 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Serial converter – RS-422/485 converter/repeater with optical isolationSerial InterfaceConnector: Terminal blockNo. of Ports: 2Serial Standards: RS-422 RS-485Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)Isolation: 2 kVPull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohmsRS-485 Data Direction Control: ADDC (automatic data direction control)Terminator for RS-485: N/A, 120 ohms, 120 kilo-ohmsSerial SignalsRS-422: Tx+, Tx-, Rx+, Rx-, GNDRS-485-4w: Tx+, Tx-, Rx+, Rx-, GNDRS-485-2w: Data+, Data-, GNDPower ParametersInput Current: 180 mA @ 12 VDCInput Voltage: 12 to 48 VDCNo. of Power Inputs: 1Overload Current Protection: SupportedPower Connector: Terminal block (for DC models)Power Consumption: 180 mA @ 12 VDCPhysical CharacteristicsHousing: MetalIP Rating: IP30Dimensions: 67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in)Weight: 148 g (0.33 lb)Installation: DIN-rail mounting (with optional kit) Wall mountingEnvironmental LimitsOperating Temperature: -20 to 60°C (-4 to 140°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and CertificationsEMC: EN 55032/35EMI: CISPR 32, FCC Part 15B Class AEMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMFEnvironmental Testing: IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3Safety: UL 60950-1Vibration: IEC 60068-2-6MTBFTime: 1,949,025 hrsStandards: Telcordia (Bellcore), GBWarrantyWarranty Period: 5 yearsDetails: See www.moxa.com/warranty
