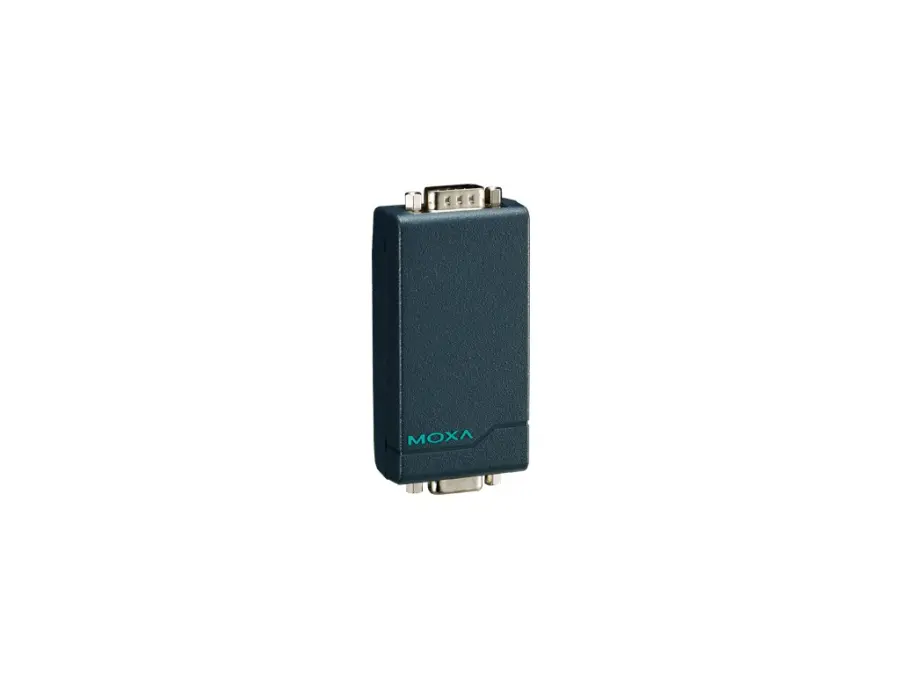

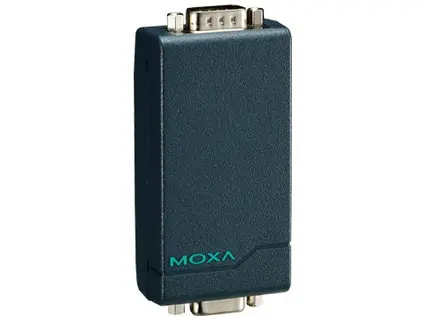

TCC-82

Serial communication device – Port-powered RS-232 isolator with 4 kV isolation and 15 KV serial ESD protection

Serial Interface

• Connector: DB9 male
• No. of Ports: 2
• Serial Standards: RS-232
• Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, GND The DTR, DSR, and DCD pins are internally shorted.

Power Parameters

• Input Current: 5 to 12 VDC, 20 mA (max.)
• Input Voltage: 5 to 12 VDC
• No. of Power Inputs: 1
• Overload Current Protection: Supported
• Source of Input Power: Power input jack

Physical Characteristics

• Housing: Plastic
• IP Rating: IP30
• Dimensions: 42 x 80 x 23.6 mm (1.65 x 3.15 x 0.93 in)
• Weight: 60 g (0.13 lb)
• Installation: Desktop

Environmental Limits

• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature (package included): -20 to 75°C (-4 to 167°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class B
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
• Environmental Testing: IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3
• Safety: UL 60950-1
• Vibration: IEC 60068-2-6

MTBF

• Time: 959,780 hrs
• Standards: MIL-HDBK-217F

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
