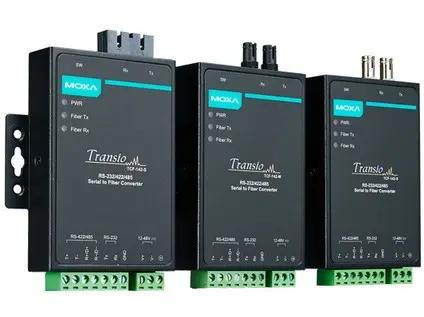

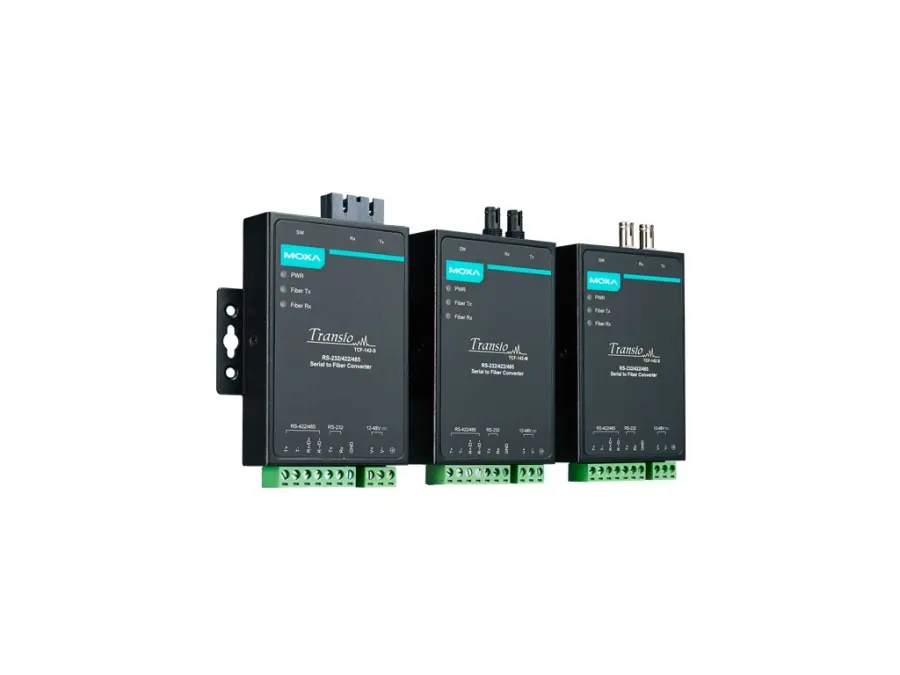

# TCF-142-M-ST

Serial converter, Serial: RS-232 RS-422 RS-485, Temp: 0 to 60°C (32 to 140°F), Power: 1

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 181616021010 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Serial converter – RS-232/422/485 to multi-mode optical fiber media converter with fiber ring support and ST connector, 0 to 60°C operating temperatureSerial InterfaceNo. of Ports: 2Serial Standards: RS-232 RS-422 RS-485Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)Flow Control: ADDC (automatic data direction control) for RS-485Optical Fiber: Read more Low-Speed Fiber Module Multi-Mode Single-Mode Fiber Cable Requirements 50/125 µm, 800 MHz G.652 62.5/125 µm, 500 MHz Typical Distance 5 km 40 km Wavelength Typical (nm) 850 1310 TX Range (nm) 840 to 860 1290 to 1330 RX Range (nm) 800 to 900 1100 to 1650 Optical Power TX Range (dBm) 0 to -5 0 to -5 RX Range (dBm) 0 to -20 0 to -25 Link Budget (dB) 15 20 Dispersion Penalty (dB) 1 1 Note: When using a power meter to measure the fiber TX power, set the baudrate to 9,600 bps and send data (00, ..., 0h) to the serial converter’s serial port.Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohmsRS-485 Data Direction Control: ADDC (automatic data direction control)Terminator for RS-485: N/A, 120 ohms, 120 kilo-ohmsConnector: Multi-mode ST connectorLatency: 300 nsSerial SignalsRS-232: TxD, RxD, GNDRS-422: Tx+, Tx-, Rx+, Rx-, GNDRS-485-4w: Tx+, Tx-, Rx+, Rx-, GNDRS-485-2w: Data+, Data-, GNDPower ParametersNo. of Power Inputs: 1Input Current: 70 to 140 mA @ 12 to 48 VDCInput Voltage: 12 to 48 VDCOverload Current Protection: SupportedPower Connector: Terminal blockPower Consumption: 70 to 140 mA @ 12 to 48 VDCReverse Polarity Protection: SupportedPhysical CharacteristicsIP Rating: IP30Housing: MetalDimensions (with ears): 90 x 100 x 22 mm (3.54 x 3.94 x 0.87 in)Dimensions (without ears): 67 x 100 x 22 mm (2.64 x 3.94 x 0.87 in)Weight: 320 g (0.71 lb)Installation: Wall mountingEnvironmental LimitsOperating Temperature: 0 to 60°C (32 to 140°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and CertificationsEMC: EN 55032/35EMI: CISPR 32, FCC Part 15B Class AEMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMFEnvironmental Testing: IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3Safety: UL 60950-1Vibration: IEC 60068-2-6MTBFTime: 780,480 hrsStandards: Telcordia (Bellcore), GBWarrantyWarranty Period: 5 yearsDetails: See www.moxa.com/warranty

## Soubory ke stažení

* [Manual TCF-142_QIG_v13_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/TCF-142_QIG_v13_ELVAC15.pdf)
* [Katalog TCF-142_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/TCF-142_Series_ELVAC15.pdf)
