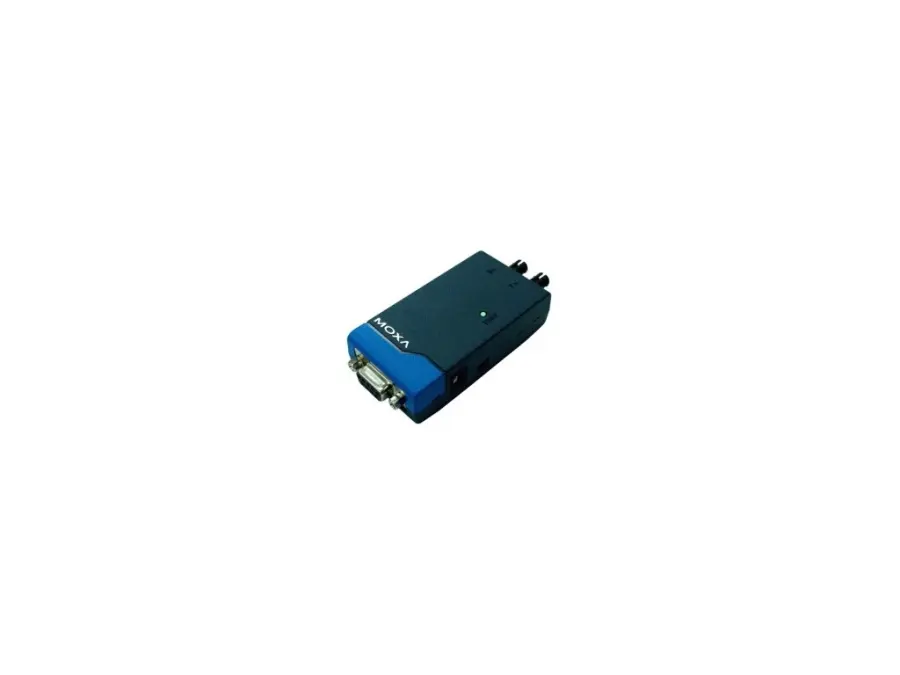

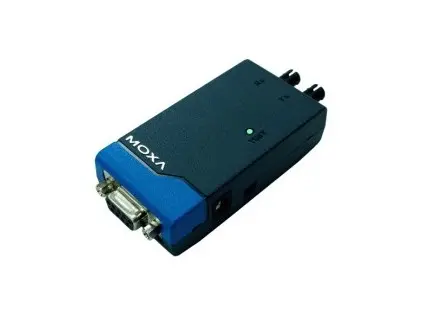

TCF-90-S-ST

Serial converter – RS-232 to single-mode ST fiber optic converter, port powered

Serial Interface

• No. of Ports: 2
• Serial Standards: RS-232
• Flow Control: ADDC (automatic data direction control) for RS-485
• Connector: Single-mode ST connector
• Optical Fiber
• Optical Fiber: Read more Low-Speed Fiber Module Multi-Mode Single-Mode Fiber Cable Requirements 50/125 µm, 800 MHz G.652 62.5/125 µm, 500 MHz Typical Distance 5 km 40 km Wavelength Typical (nm) 850 1310 TX Range (nm) 840 to 860 1290 to 1330 RX Range (nm) 800 to 900 1100 to 1650 Optical Power TX Range (dBm) 0 to -5 0 to -5 RX Range (dBm) 0 to -20 0 to -25 Link Budget (dB) 15 20 Dispersion Penalty (dB) 1 1 Note: When using a power meter to measure the fiber TX power, set the baudrate to 9,600 bps and send data (00, ..., 0h) to the serial converter’s serial port.
• Baudrate: 300 bps to 115.2 kbps

Serial Signals

• RS-232: TxD, RxD, GND The DTR, DSR, DCD, CTS, and RTS pins are internally shorted.

Power Parameters

• Input Current: 5 to 12 VDC, 20 mA (max.)
• Input Voltage: 5 to 12 VDC
• No. of Power Inputs: 1
• Overload Current Protection: Supported
• Source of Input Power: Power input jack

Physical Characteristics

• Housing: Plastic
• IP Rating: IP30
• Dimensions: 42 x 80 x 22 mm (1.65 x 3.15 x 0.87 in)
• Weight: 150 g (0.33 lb)
• Installation: Desktop

Environmental Limits

• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature (package included): -20 to 75°C (-4 to 167°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
• Environmental Testing: IEC 60068-2-1 IEC 60068-2-14 IEC 60068-2-2 IEC 60068-2-3
• Safety: UL 60950-1
• Vibration: IEC 60068-2-6

MTBF

• Time: 2,272,562 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
