Description

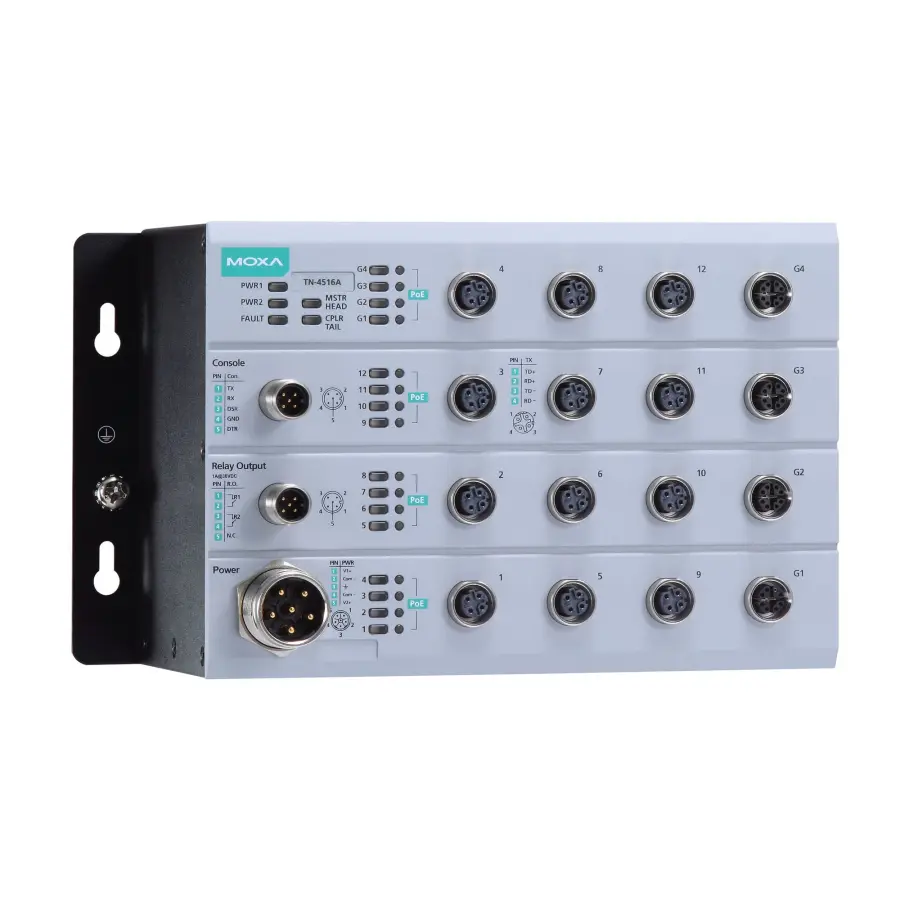

TN-4516A-4GTX-WV-T is a EN 50155 railway Ethernet switch in the TN-4500A Series. Managed Ethernet switch with 12 10/100BaseT(X) ports, and 4 10/100/1000BaseT(X) ports with M12 connectors, dual redundant power inputs (24-110 VDC), -40 to 75°C operating temperature
Specifications:
- 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector): 4
- 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): 12
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Broadcast Forwarding: Broadcast forwarding
- Console Port: M12 A-coded male connector
- Details: See www.moxa.com/warranty
- Dimensions: 229.6 x 115 x 92.3 mm (9.04 x 4.53 x 3.63 in)
- Filter: GMRP GVRP 802.1Q VLAN Port-based VLAN Static Multicast Multicast Filtering IGMP Snooping v1/v2/v3 IGMP Querier DHCP Filter
- LED Indicators: PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet ports, PoE ports
- Max. No. of VLANs: 64
- Power Connector: M23 connector
- Radio Frequency: FCC
- Railway: EN 50121-4 EN 50155 IEC 60571
- Railway Fire Protection: EN 45545-2
- VLAN ID Range: VID 1 to 4094
- Jumbo Frame Size: 9.712 KB
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- IGMP Groups: 512 (shared with static multicast)
- MIB: Bridge MIB Ethernet-like MIB MIB-II P-BRIDGE MIB Q-BRIDGE MIB RMON MIB Groups 1, 2, 3, 9 RSTP MIB
- Redundancy Protocols: MSTP RSTP STP Turbo Chain Turbo Ring v1/v2 Turbo Ring with DRC Static Port Trunk LACP
- Security: Access control list Trust access control Broadcast storm protection TACACS+ RADIUS HTTPS/SSL SSH Rate Limit SCP
- Input Current: 0.62 A @ 24 VDC
- Input Voltage: 24/36/48/72/96/110 VDC
- No. of Power Inputs: 2
- Operating Voltage: 16.8 to 137.5 VDC
- Overload Current Protection: Supported
- Power Consumption (Max.): 12.1 W @ 110 VDC
- Reverse Polarity Protection: Supported
- Altitude: 3000 m
- EMC: EN 55032/35
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Operating Temperature: -40 to 70°C (-40 to 158°F)
- Shock: IEC 60068-2-27, IEC 61373, EN 50155
- Vibration: IEC 60068-2-64, IEC 61373, EN 50155
- Housing: Metal
- Installation: Wall mounting
- Weight: 1,248 g (2.75 lb)
- Standards: IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
- Management: IPv4/IPv6 Flow control LLDP ICMP Port Mirroring QoS/CoS/ToS RMON SMTP SNMP Inform SNMP Trap SNMPv1/v2c/v3 Syslog Account Management Loop Protection DNS Server DHCP option 82 (relay agent) Port-based DHCP Server DHCP Server (options 1/3/12/15/42/50/55) DHCP Client (options 1/3/50/51/53/54/55/57/61/66/67)
- Time Management: IEEE 1588 PTP v1/v2 NTP Server/Client SNTP Server/Client
- Alarm Contact Channels: 2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC
- Configuration Options: Command Line Interface (CLI) through Serial/Telnet/SSH Web Console (HTTP/HTTPS) Windows Utility
- Freefall: IEC 60068-2-31
- Green Product: RoHS, CRoHS, WEEE
- IP Rating: IP42
- Safety: UL 62368-1 IEC 62368-1 EN 62368-1
- Time: 755,975 hrs
- Warranty Period: 5 years
