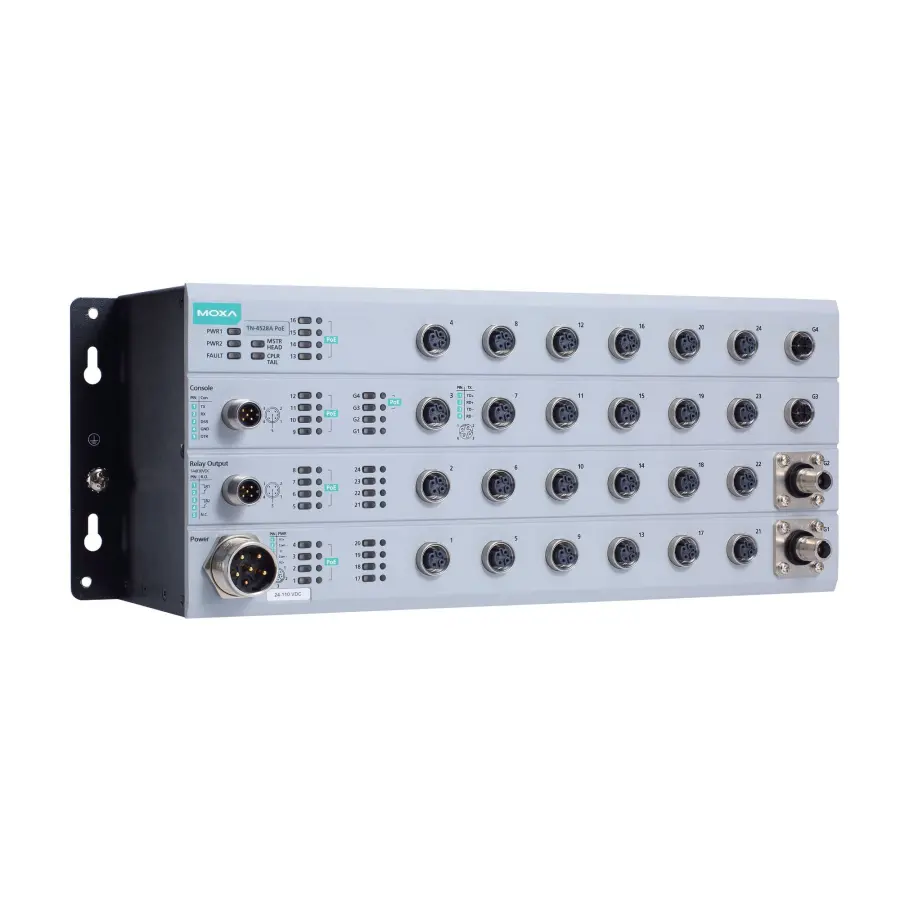

# TN-4528A-16PoE-2GPoE-2GODC-WV-CT-T

Industrial networking device, Ports: 8, SFP: 2, PoE: 16, Temp: -40 to 70°C (-40 to 158°F), Power: 2

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180414112290 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial networking device – 16 PoE 10/100BaseT(X) ports with M12 connector, 8 10/100BaseT(X) ports with M12 connector, 2 PoE 10/100/1000BaseT(X) ports with M12 connector, 2 1000BaseLSX fiber optic ports with Q-ODC® interface, 1 (dual input) 24 to 110 VDC power supply, -40 to 75°C operating temperature, conformal coatingInput/Output InterfaceAlarm Contact Channels: 2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDCEthernet Interface10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): 8PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector): 16PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector): 210/100/1000BaseT(X) Ports, Q-ODC Fiber Connector: 2Standards: IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3af/at for PoE/PoE+ output IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/ZXEthernet Software FeaturesBroadcast Forwarding: Broadcast forwardingConfiguration Options: Command Line Interface (CLI) through Serial/Telnet/SSH Web Console (HTTP/HTTPS) Windows UtilityFilter: GMRP GVRP 802.1Q VLAN Port-based VLAN Static Multicast Multicast Filtering IGMP Snooping v1/v2/v3 IGMP Querier DHCP FilterManagement: IPv4/IPv6 Flow control LLDP ICMP Port Mirroring QoS/CoS/ToS RMON, SMTP, SNMP Inform SNMP Trap SNMPv1/v2c/v3 Syslog Account Management Loop Protection DNS Server DHCP option 82 (relay agent) Port-based DHCP Server DHCP Server (options 1/3/12/15/42/50/55) DHCP Client (options 1/3/50/51/53/54/55/57/61/66/67)MIB: Bridge MIB Ethernet-like MIB MIB-II P-BRIDGE MIB Q-BRIDGE, MIB, RMON, MIB Groups 1, 2, 3, 9 RSTP MIBRedundancy Protocols: MSTP, RSTP, STP Turbo Chain Turbo Ring v1/v2 Turbo Ring with DRC Static Port Trunk LACPSecurity: Access control list Trust access control Broadcast storm protection TACACS+ RADIUS HTTPS/SSL SSH Rate Limit SCPTime Management: IEEE 1588 PTP v1/v2 NTP Server/Client SNTP Server/ClientSwitch PropertiesMax. No. of VLANs: 64VLAN ID Range: VID 1 to 4094Jumbo Frame Size: 9.712 KBIGMP Groups: 512 (shared with static multicast)LED InterfaceLED Indicators: PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet ports, PoE portsSerial InterfaceConsole Port: M12 A-coded male connectorPower ParametersInput Current: 7.0 A @ 24 VDCInput Voltage: 24/36/48/72/96/110 VDCNo. of Power Inputs: 2Power Connector: M23 connectorOperating Voltage: 16.8 to 137.5 VDCOverload Current Protection: SupportedReverse Polarity Protection: SupportedPower Consumption (Max.): With PoE disabled:17.8 W @ 24 VDC, 17.7 W @ 110 VDCWith PoE enabled:35.7 W @ 24 VDC, 25.3 W @ 110 VDCTotal PoE Power Budget: 120 WPhysical CharacteristicsDimensions: 347.8 x 115 x 122.3 mm (13.69 x 4.53 x 4.82 in
