Description

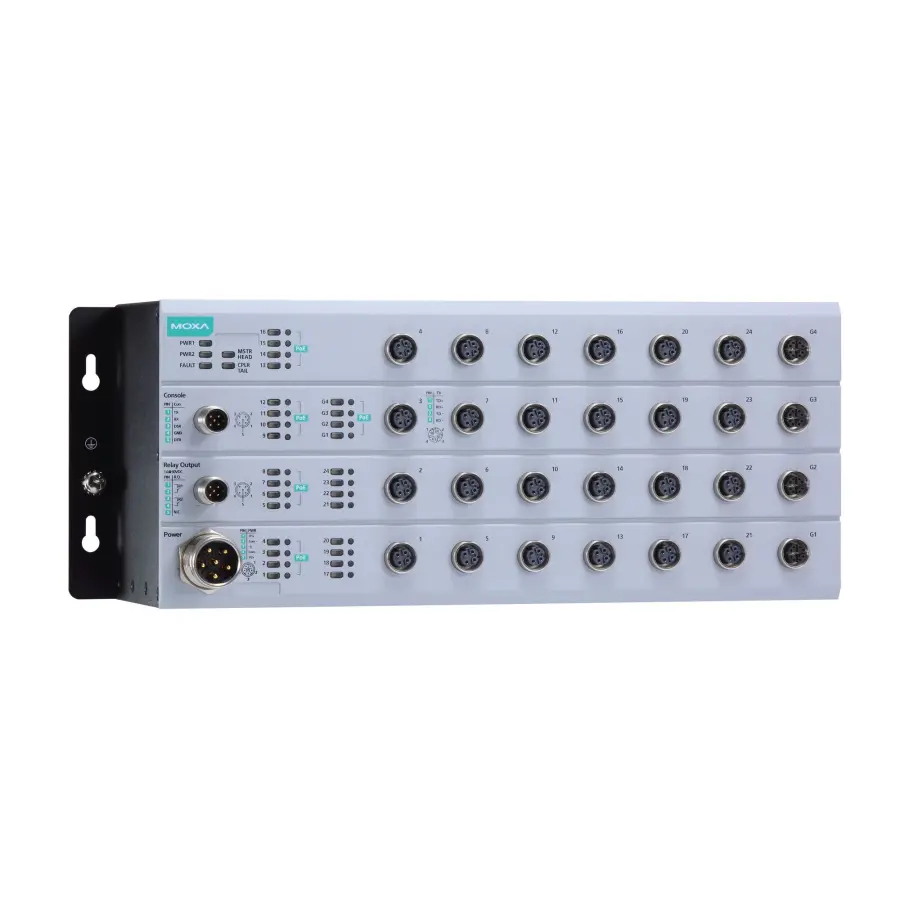

Industrial networking device – 16 PoE 10/100BaseT(X) ports with M12 connector, 8 10/100BaseT(X) ports with M12 connector, 4 PoE 10/100/1000BaseT(X) ports with M12 connector, 1 (dual input) 24 to 110 VDC power supply, -40 to 75°C operating temperature, conformal coating
Input/Output Interface
- Alarm Contact Channels: 2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC
Ethernet Interface
- 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): 8
- PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector): 16
- PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector): 4
- Standards: IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3af/at for PoE/PoE+ output IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Ethernet Software Features
- Broadcast Forwarding: Broadcast forwarding
- Configuration Options: Command Line Interface (CLI) through Serial/Telnet/SSH Web Console (HTTP/HTTPS) Windows Utility
- Filter: GMRP GVRP 802.1Q VLAN Port-based VLAN Static Multicast Multicast Filtering IGMP Snooping v1/v2/v3 IGMP Querier DHCP Filter
- Management: IPv4/IPv6 Flow control LLDP ICMP Port Mirroring QoS/CoS/ToS RMON, SMTP, SNMP Inform SNMP Trap SNMPv1/v2c/v3 Syslog Account Management Loop Protection DNS Server DHCP option 82 (relay agent) Port-based DHCP Server DHCP Server (options 1/3/12/15/42/50/55) DHCP Client (options 1/3/50/51/53/54/55/57/61/66/67)
- MIB: Bridge MIB Ethernet-like MIB MIB-II P-BRIDGE MIB Q-BRIDGE, MIB, RMON, MIB Groups 1, 2, 3, 9 RSTP MIB
- Redundancy Protocols: MSTP, RSTP, STP Turbo Chain Turbo Ring v1/v2 Turbo Ring with DRC Static Port Trunk LACP
- Security: Access control list Trust access control Broadcast storm protection TACACS+ RADIUS HTTPS/SSL SSH Rate Limit SCP
- Time Management: IEEE 1588 PTP v1/v2 NTP Server/Client SNTP Server/Client
Switch Properties
- Max. No. of VLANs: 64
- VLAN ID Range: VID 1 to 4094
- Jumbo Frame Size: 9.712 KB
- IGMP Groups: 512 (shared with static multicast)
LED Interface
- LED Indicators: PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet ports, PoE ports
Serial Interface
- Console Port: M12 A-coded male connector
Power Parameters
- Input Current: 7.0 A @ 24 VDC
- Input Voltage: 24/36/48/72/96/110 VDC
- No. of Power Inputs: 2
- Power Connector: M23 connector
- Operating Voltage: 16.8 to 137.5 VDC
- Overload Current Protection: Supported
- Reverse Polarity Protection: Supported
- Power Consumption (Max.): With PoE disabled:18.7 W @ 24 VDC, 18.2 W @ 110 VDCWith PoE enabled:36.5 W @ 24 VDC, 25.8 W @ 110 VDC
- Total PoE Power Budget: 120 W
Physical Characteristics
- Dimensions: 347.8 x 115 x 122.3 mm (13.69 x 4.53 x 4.82 in)
- Housing: Metal
- IP Rating: IP42
- Weight: 3,304 g (7.27
