Description

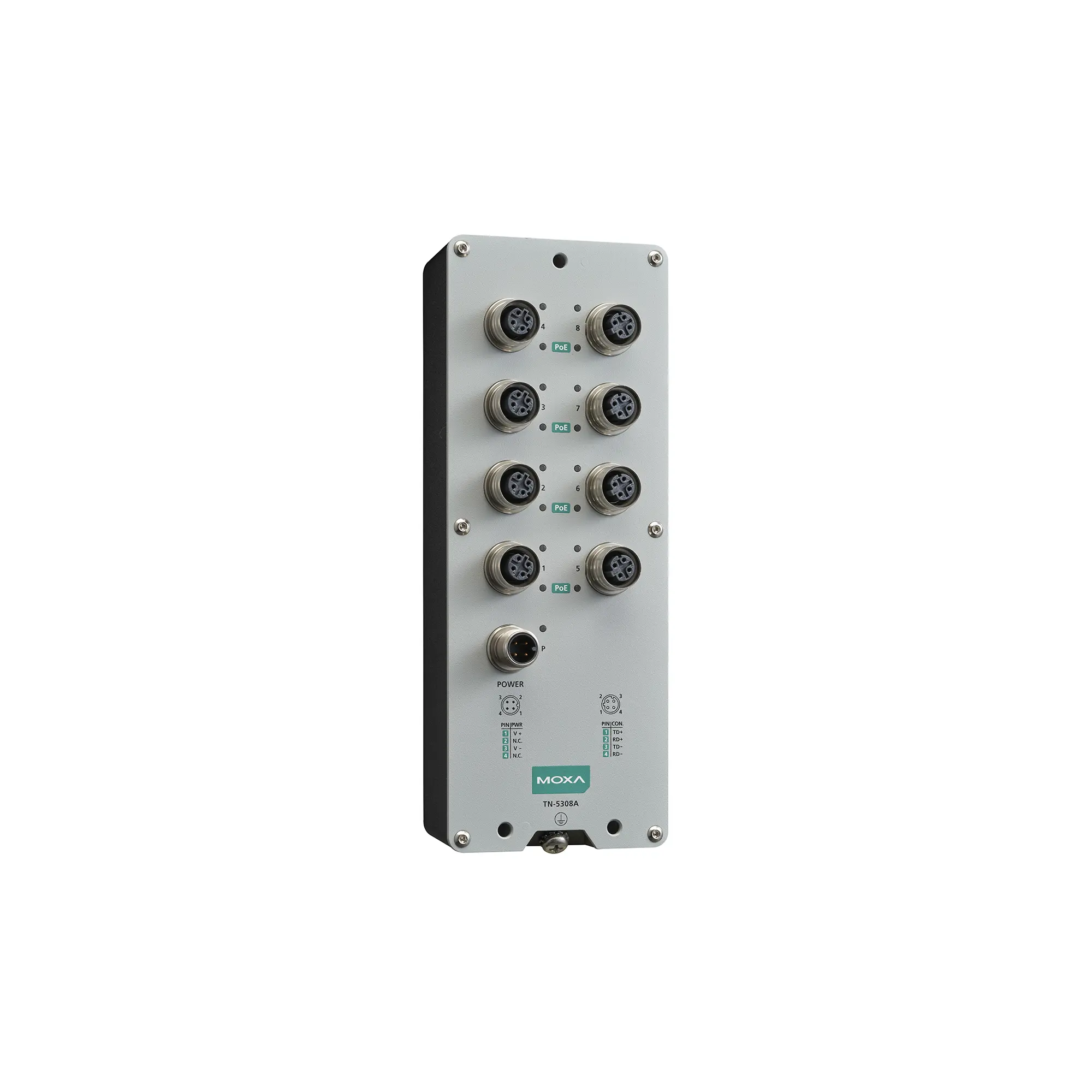

Industrial Unmanaged PoE Ethernet switch – EN 50155 unmanaged Ethernet switch with 8 10/100BaseT(X) ports, M12 connector, single power input, 24 to 110 VDC, -40 to 70°C operating temperature
Ethernet Interface
- 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): 8
- Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control
LED Interface
- LED Indicators: PWR, Ethernet ports, PoE ports
Switch Properties
- Packet Buffer Size: 768 kbits
- MAC Table Size: 2 K
Power Parameters
- Input Current: max. 0.1 A A @ 24 VDC
- Input Voltage: 24/36/48/72/96/110 VDC
- Total PoE Power Budget: 50.2 W
- No. of Power Inputs: 1
- Operating Voltage: 16.8 to 137.5 VDC
- Power Connector: M12 A-coded male connector
- Overload Current Protection: Supported
- Reverse Polarity Protection: Supported
Physical Characteristics
- Housing: Metal
- IP Rating: IP54
- Dimensions: 62.4 x 190.4 x 37.5 mm (2.46 x 7.50 x 1.48 in)
- Weight: 455 g (1.00 lb)
- Installation: Wall mounting DIN-rail mounting (with optional kit)
Environmental Limits
- Operating Temperature: -40 to 70°C (-40 to 158°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Altitude: 3000 m
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Radio Frequency: FCC
- Environmental Testing: IEC 60068-2-1, EN 50155 IEC 60068-2-14, EN 50155 IEC 60068-2-2, EN 50155 IEC 60068-2-30, EN 50155 IEC 60068-2-78
- Railway: EN 50121-4 EN 50155 IEC 60571
- Railway Fire Protection: EN 45545-2
- Safety: IEC 62368-1 UL 62368-1 EN 62368-1
- Salt Spray Test: EN 50155
- Shock: IEC 60068-2-27, IEC 61373, EN 50155
- Vibration: IEC 60068-2-64, IEC 61373, EN 50155
- Package Vibration Test: ISTA 1A
- Package Drop Test: ISTA 1A
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 5,260,454 hrs
- Standards: Telcordia SR332 Issue 4
