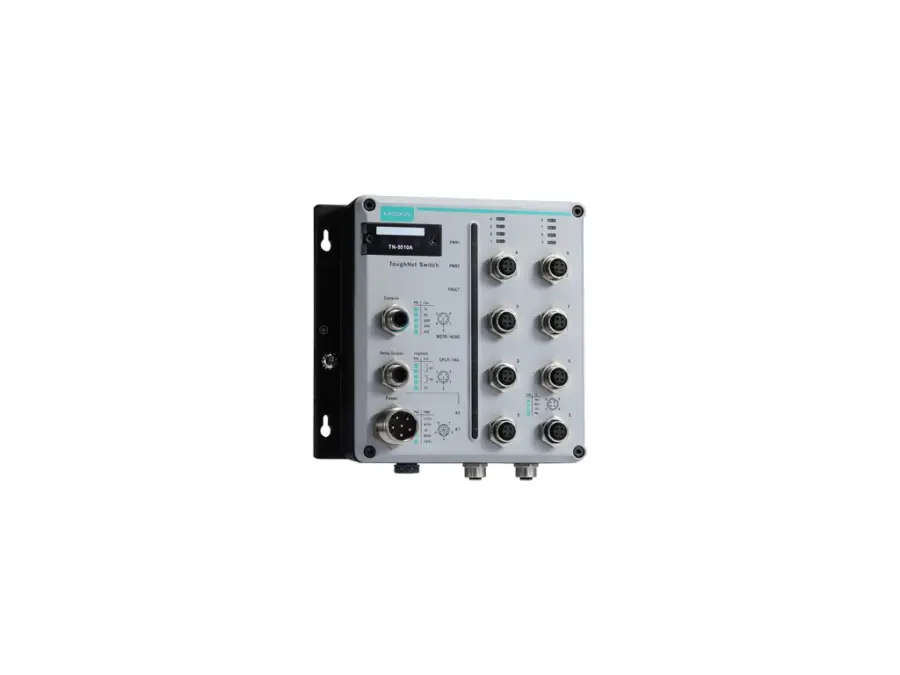

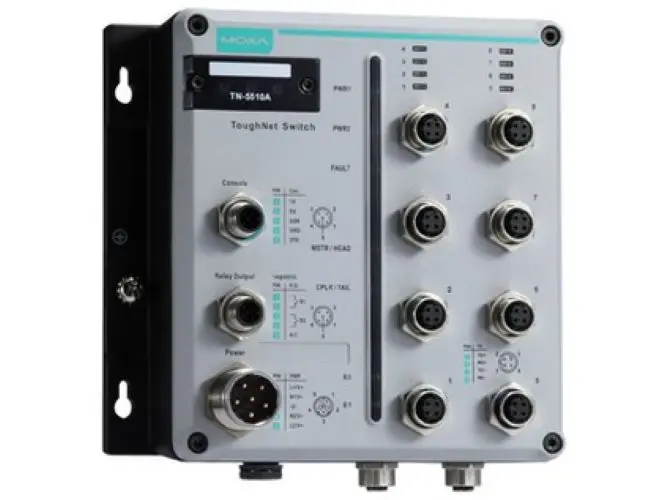

TN-5510A-2GTXBP-WV-T

Industrial Layer 2 Managed PoE Ethernet switch – Layer 2 managed Ethernet switch with 8 10/100BaseT(X) and 2 10/100/1000BaseT(X) ports with M12 connector with bypass relay function, 24 to 110 VDC dual power input, -40 to 75°C operating temperature

Input/Output Interface

• Alarm Contact Channels: 2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC

Ethernet Interface

• 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay): 2
• 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): 8
• Standards: IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control

Ethernet Software Features

• Broadcast Forwarding: Broadcast forwarding
• Configuration Options: Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility
• Filter: 802.1Q GMRP GVRP IGMP Snooping v1/v2/v3 IGMP Querier Port-based VLAN Static Multicast
• Management: Account Management Back Pressure Flow Control DHCP Client (options 1/3/50/51/53/54/55/57/66/67) DHCP option 82 (relay agent) DHCP Server (options 1/3/12/15/42/50/55) Flow control HTTP ICMP IPv4/IPv6 LLDP Loop Protection Port-based DHCP Server Port Mirroring QoS/CoS/ToS RARP RMON SMTP SNMP Inform SNMP Trap SNMPv1/v2c/v3 Syslog Telnet
• MIB: Bridge MIB Ethernet-like MIB MIB-II P-BRIDGE MIB Q-BRIDGE MIB RMON MIB Groups 1, 2, 3, 9 RSTP MIB
• Redundancy Protocols: LACP MSTP RSTP Static Port Trunk STP Turbo Chain Turbo Ring v2 Turbo Ring with DRC
• Security: Broadcast storm protection HTTPS/SSL Local Account Accessibility TACACS+ Port Lock RADIUS Rate Limit SSH
• Time Management: NTP Server/Client SNTP

Switch Properties

• IGMP Groups: 256
• Max. No. of VLANs: 64
• VLAN ID Range: VID 1 to 4094

LED Interface

• LED Indicators: PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet, PoE

Serial Interface

• Console Port: M12 A-coded male connector

Power Parameters

• Input Current: 24 to 110 VDC, 0.5 A max.
• Input Voltage: Redundant dual inputs 24/36/48/72/96/110 VDC
• No. of Power Inputs: 2
• Operating Voltage: 16.8 to 137.5 VDC
• Power Consumption (Max.): 10.2 W @ 110 VDC 10.5 W @ 24 VDC
• Power Connector: M23 connector
• Overload Current Protection: Supported
• Reverse Polarity Protection: Supported

Physical Characteristics

• Housing: Metal
• IP Rating: IP54
• Dimensions: 185 x 178.1 x 76 mm (7.28 x 7.01 x 2.99 in)
• Weight: 1,805 g (3.97 lb)
• Installation: DIN-rail mounting (optional) Wall mounting

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Altitude: 2000 m

Standards and Certifications

• EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
• Freefall: IEC 60068-2-31
• Radio Frequency: FCC
• Railway: EN 50121-4 EN 50155
• Railway Fire Protection: EN 45545-2
• Safety: EN 62368-1
• Shock: IEC 60068-2-27, IEC 61373, EN 50155
• Vibration: IEC 60068-2-64, IEC 61373, EN 50155
• EMC: EN 55032/35

Declaration

• Green Product: RoHS, CRoHS, WEEE

MTBF

• Time: 770,064 hrs
• Standards: Telcordia Standard SR-332

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
