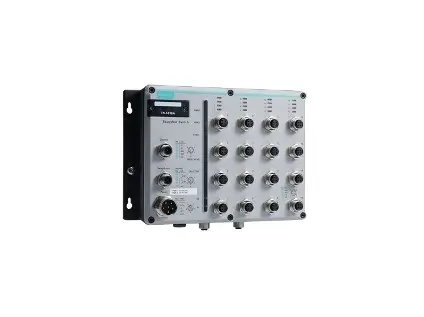

# TN-5518A-2GTX-WV-CT-T

Industrial Layer 2 Managed PoE Ethernet switch, Ports: 16, PoE: PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet, PoE, Temp: -40 to 75°C (-40 to 167°F), Power: 2

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 180414111190 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial Layer 2 Managed PoE Ethernet switch – Layer 2 managed switch with 16 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) ports with M12 connectors, dual power input, 24 to 110 VDC, -40 to 75°C operating temperature, conformal coatingInput/Output InterfaceAlarm Contact Channels: 2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDCEthernet Interface10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): 16Standards: IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector): 2Ethernet Software FeaturesBroadcast Forwarding: Broadcast forwardingConfiguration Options: Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows UtilityFilter: 802.1Q GMRP, GVRP, IGMP Snooping v1/v2/v3 IGMP Querier Port-based VLAN Static MulticastManagement: Account Management Back Pressure Flow Control DHCP Client (options 1/3/50/51/53/54/55/57/66/67) DHCP option 82 (relay agent) DHCP Server (options 1/3/12/15/42/50/55) Flow control HTTP ICMP IPv4/IPv6 LLDP Loop Protection Port-based DHCP Server Port Mirroring QoS/CoS/ToS RARP, RMON, SMTP, SNMP Inform SNMP Trap SNMPv1/v2c/v3 Syslog TelnetMIB: Bridge MIB Ethernet-like MIB MIB-II P-BRIDGE MIB Q-BRIDGE, MIB, RMON, MIB Groups 1, 2, 3, 9 RSTP MIBRedundancy Protocols: LACP, MSTP, RSTP Static Port Trunk STP Turbo Chain Turbo Ring v2 Turbo Ring with DRCSecurity: Broadcast storm protection HTTPS/SSL Local Account Accessibility TACACS+ Port Lock RADIUS Rate Limit SSHTime Management: NTP Server/Client SNTPSwitch PropertiesIGMP Groups: 256Max. No. of VLANs: 64VLAN ID Range: VID 1 to 4094LED InterfaceLED Indicators: PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet, PoESerial InterfaceConsole Port: M12 A-coded male connectorPower ParametersInput Current: 24 to 110 VDC, 0.75 A max.Input Voltage: Redundant dual inputs 24/36/48/72/96/110 VDCNo. of Power Inputs: 2Operating Voltage: 16.8 to 137.5 VDCPower Consumption (Max.): 14.3 W @ 110 VDC 14.5 W @ 24 VDCPower Connector: M23 connectorOverload Current Protection: SupportedReverse Polarity Protection: SupportedPhysical CharacteristicsHousing: MetalIP Rating: IP54Dimensions: 250 x 178.6 x 75 mm (9.84 x 7.03 x 2.95 in)Weight: 2,250 g (4.96 lb)Installation: DIN-rail mounting (optional) Wall mountingProtection: PCB conformal coatingEnvironmental LimitsOperating Temperature: -40 to 75°C (-40 to 167°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)Ambient Relative Humidity:

## Soubory ke stažení

* [Katalog TN-5510A_5518A_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/TN-5510A_5518A_Series_ELVAC15.pdf)
* [Manual TN_Series_Managed_Switches_UM_1e_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/TN_Series_Managed_Switches_UM_1e_ELVAC15.pdf)
