Description

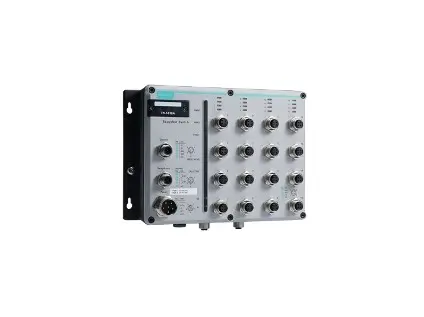

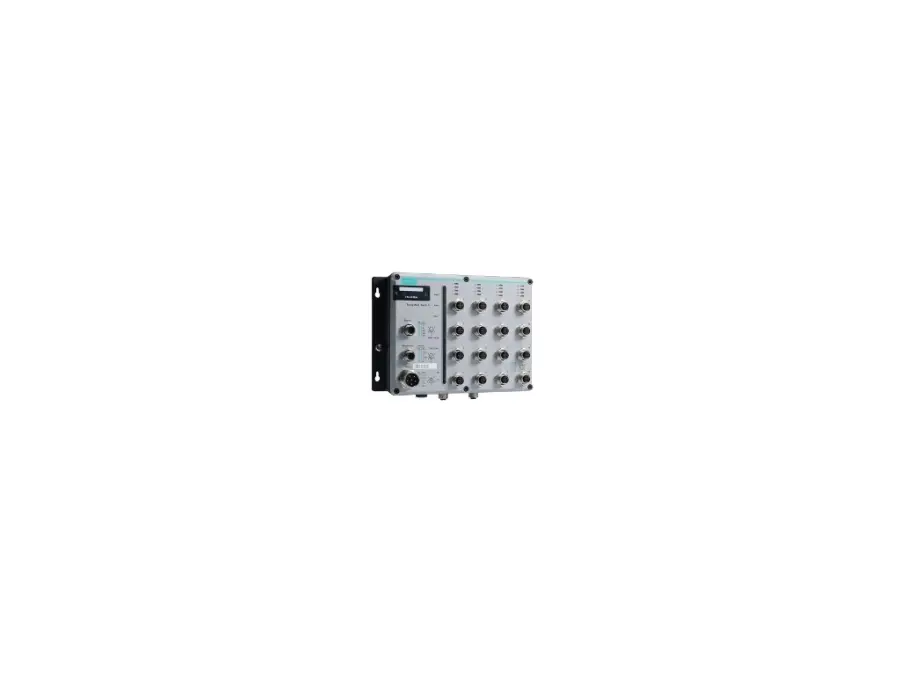

Industrial Layer 2 Managed PoE Ethernet switch – Layer 2 managed switch with 16 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) ports with M12 connectors, 2 Gigabit Ethernet ports with bypass relay function, dual power input, 24 to 110 VDC, -40 to 75°C operating temperature
Input/Output Interface
- Alarm Contact Channels: 2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC
Ethernet Interface
- 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay): 2
- 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): 16
- Standards: IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3x for flow control
Ethernet Software Features
- Broadcast Forwarding: Broadcast forwarding
- Configuration Options: Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility
- Filter: 802.1Q GMRP GVRP IGMP Snooping v1/v2/v3 IGMP Querier Port-based VLAN Static Multicast
- Management: Account Management Back Pressure Flow Control DHCP Client (options 1/3/50/51/53/54/55/57/66/67) DHCP option 82 (relay agent) DHCP Server (options 1/3/12/15/42/50/55) Flow control HTTP ICMP IPv4/IPv6 LLDP Loop Protection Port-based DHCP Server Port Mirroring QoS/CoS/ToS RARP RMON SMTP SNMP Inform SNMP Trap SNMPv1/v2c/v3 Syslog Telnet
- MIB: Bridge MIB Ethernet-like MIB MIB-II P-BRIDGE MIB Q-BRIDGE MIB RMON MIB Groups 1, 2, 3, 9 RSTP MIB
- Redundancy Protocols: LACP MSTP RSTP Static Port Trunk STP Turbo Chain Turbo Ring v2 Turbo Ring with DRC
- Security: Broadcast storm protection HTTPS/SSL Local Account Accessibility TACACS+ Port Lock RADIUS Rate Limit SSH
- Time Management: NTP Server/Client SNTP
Switch Properties
- IGMP Groups: 256
- Max. No. of VLANs: 64
- VLAN ID Range: VID 1 to 4094
LED Interface
- LED Indicators: PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet, PoE
Serial Interface
- Console Port: M12 A-coded male connector
Power Parameters
- Input Current: 24 to 110 VDC, 0.75 A max.
- Input Voltage: Redundant dual inputs 24/36/48/72/96/110 VDC
- No. of Power Inputs: 2
- Operating Voltage: 16.8 to 137.5 VDC
- Power Consumption (Max.): 14.3 W @ 110 VDC 14.5 W @ 24 VDC
- Power Connector: M23 connector
- Overload Current Protection: Supported
- Reverse Polarity Protection: Supported
Physical Characteristics
- Housing: Metal
- IP Rating: IP54
- Dimensions: 250 x 178.6 x 75 mm (9.84 x 7.03 x 2.95 in)
- Weight: 2,250 g (4.96 lb)
- Installation: DIN-rail mounting (optional) Wall mounting
Environmental Limits
- Operating Temperature: -40 to 75°C (-40 to 167°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Altitude: 2000 m
Standards and Certifications
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Freefall: IEC 60068-2-31
- Radio Frequency: FCC
- Railway: EN 50121-4 EN 50155
- Railway Fire Protection: EN 45545-2
- Safety: EN 62368-1
- Shock: IEC 60068-2-27, IEC 61373, EN 50155
- Vibration: IEC 60068-2-64, IEC 61373, EN 50155
- EMC: EN 55032/35
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 635,900 hrs
- Standards: Telcordia Standard SR-332
Warranty
