Description

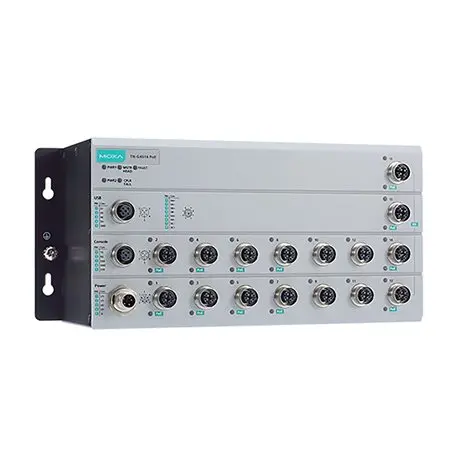

Industrial Layer 2 Managed PoE Ethernet switch – EN 50155 Layer 2 multi-Gigabit switch with 4 Gigabit Ethernet ports, 8 Gigabit Ethernet PoE+ ports, 4 10G Ethernet PoE+ ports, 120 W PoE power budget, 24 to 110 VDC power input, -40 to 70°C operating temperature, IP40, conformal coating
Ethernet Interface
- 10GBaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay): TN-G4516 BP models: 2
- 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector): 4
- PoE Ports (10GBaseT(X), M12 X-coded 8-pin female connector): TN-G4516 non-BP models: 4TN-G4516 BP models: 2
- PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector): 8
- Standards: IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3u for 100BaseT(X) IEEE 802.3bz for 5GBaseT and 2.5GBaseT IEEE 802.3an for 10GBaseT IEEE 802.3ad for Port Trunk with LACP IEEE 802.3af/at for PoE/PoE+ output IEEE 802.3x for flow control
Ethernet Software Features
- Broadcast Forwarding: Broadcast forwarding
- Configuration Options: Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility
- Filter: 802.1Q DHCP Filter GMRP, GVRP, IGMP Snooping v1/v2/v3 IGMP Querier Port-based VLAN Static Multicast
- Industrial Protocols: SNMPv1/v2c/v3
- Management: Account Management Back Pressure Flow Control DHCP Client (options 1/3/50/51/53/54/55/57/66/67) DHCP option 82 (relay agent) DHCP Server (options 1/3/12/15/42/50/55) DNS Server Flow control HTTP ICMP IPv4/IPv6 Loop Protection LLDP Port-based DHCP Server Port Mirroring QoS/CoS/ToS RARP, RMON, SMTP, SNMP Inform Syslog Telnet SNMP Trap
- MIB: Bridge MIB Ethernet-like MIB MIB-II P-BRIDGE MIB Q-BRIDGE, MIB, RMON, MIB Groups 1, 2, 3, 9 RSTP MIB
- Redundancy Protocols: LACP, MSTP, RSTP, STP Static Port Trunk Turbo Chain Turbo Ring v2 Turbo Ring with DRC
- Security: Access control list TACACS+ Broadcast storm protection HTTPS/SSL Local Account Accessibility Port Lock RADIUS Rate Limit SSH Trust access control
- Time Management: NTP Server/Client SNTP
Switch Properties
- IGMP Groups: 256
- Max. No. of VLANs: 256
- Priority Queues: 4
- VLAN ID Range: VID 1 to 4094
- Jumbo Frame Size: 9.216 KB
LED Interface
- LED Indicators: PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet, PoE
Serial Interface
- Console Port: RS-232 (M12 B-coded 5-pin female connector)
Power Parameters
- No. of Power Inputs: 2
- Input Voltage: 24/36/48/72/96/110 VDC
- Operating Voltage: 16.8 to 137.5 VDC
- Input Current: 7.5 A @ 24 VDC
- Power Consumption (Max.): With PoE disabled:21.9 W @ 24 VDC21.8 W @ 110 VDCWith PoE enabled:49.1 W @ 24 VDC38.2 W @ 110 VDC
- Total PoE Power Budget: 120 W
- Overload Current Protection: Supported
- Reverse Polarity Protection: Supported
- Power Connector: M12 K-coded 5-pin male connector
Physical Characteristics
- Housing: Metal
- IP Rating: IP40
