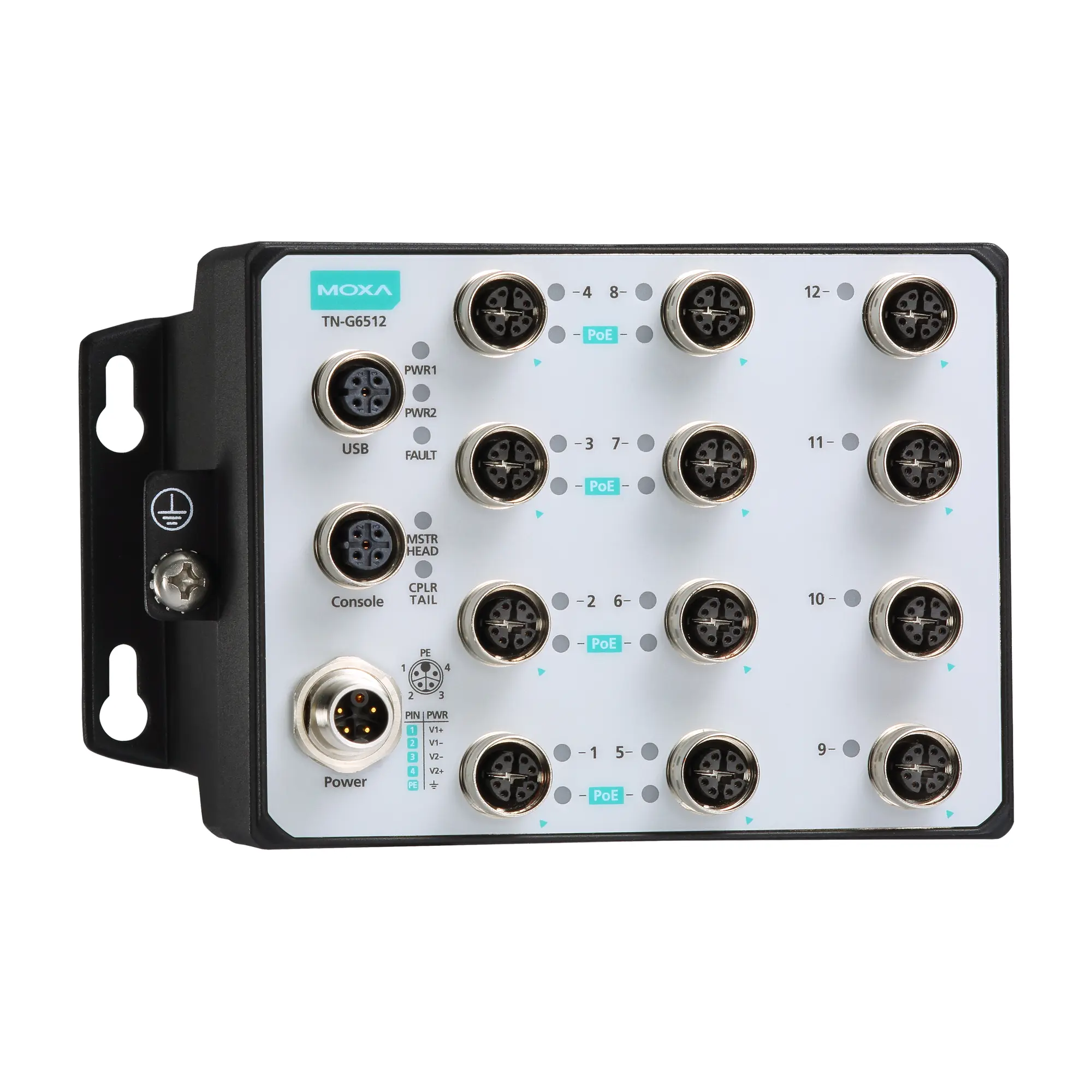

Industrial Layer 2 Managed PoE Ethernet switch – Layer 2 Managed Ethernet switch, 8 10/100/1000BaseT(X) with 802.3at PoE+, 4 10/100/1000BaseT(X) M12 connectors, 24 to 110 VDC power input, -40 to 70°C operating temperature, conformal coating model
Ethernet Interface
- 10/100/1000BaseT(X) Ports (M12 A-coded 8-pin female connector): 4
- PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector): 8
- Standards: IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3af/at for PoE/PoE+ output IEEE 802.3x for flow control IEEE 802.3u for 100BaseT(X)
Ethernet Software Features
- Broadcast Forwarding: Broadcast forwarding
- Configuration Options: Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility
- Filter: 802.1Q GMRP GVRP Port-based VLAN Static Multicast IGMP Querier DHCP Filter IGMP Snooping v1/v2/v3
- Industrial Protocols: SNMPv1/v2c/v3
- Management: Account Management Back Pressure Flow Control Flow control HTTP IPv4/IPv6 LLDP Port Mirroring QoS/CoS/ToS RARP, RMON, SMTP, SNMP Inform Syslog Telnet SNMP Trap DHCP Client (options 1/3/50/51/53/54/55/57/66/67) DHCP Server (options 1/3/12/15/42/50/55) DNS Server Port-based DHCP Server DHCP option 82 (relay agent) Loop Protection ICMP
- MIB: Bridge MIB Ethernet-like MIB MIB-II P-BRIDGE MIB Q-BRIDGE, MIB, RMON, MIB Groups 1, 2, 3, 9 RSTP MIB
- Redundancy Protocols: Static Port Trunk MSTP RSTP Turbo Ring v2 STP LACP Turbo Chain Turbo Ring with DRC
- Security: Trust access control TACACS+ Broadcast storm protection HTTPS/SSL Local Account Accessibility Port Lock RADIUS Rate Limit Access control list SSH
- Time Management: NTP Server/Client SNTP
Switch Properties
- IGMP Groups: 256
- Max. No. of VLANs: 256
- Priority Queues: 4
- VLAN ID Range: VID 1 to 4094
- Jumbo Frame Size: 9.216 KB
LED Interface
- LED Indicators: PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet, PoE
Serial Interface
- Console Port: RS-232 (M12 B-coded 5-pin female connector)
Power Parameters
- No. of Power Inputs: 2
- Input Voltage: 24/36/48/72/96/110 VDC
- Operating Voltage: 16.8 to 137.5 VDC
- Input Current: 5.8 A @ 24 VDC
- Power Consumption (Max.): With PoE disabled:16.1 W @ 24 VDC16.9 W @ 110 VDCWith PoE enabled:33.5 W @ 24 VDC26.8 W @ 110 VDC
- Total PoE Power Budget: 96 W
- Overload Current Protection: Supported
- Reverse Polarity Protection: Supported
- Power Connector: M12 K-coded 5-pin male connector
Physical Characteristics
- Housing: Metal
- IP Rating: IP67
- Dimensions: 159 x 97 x 100 mm (6.26 x 3.82 x 3.94 in)
- Weight: 1,750 g (3.86 lb)
- Installation: Wall mounting
- Protection: PCB conformal coating
Environmental Limits
- Operating Temperature: -40 to 70°C (-40 to 158°F)
