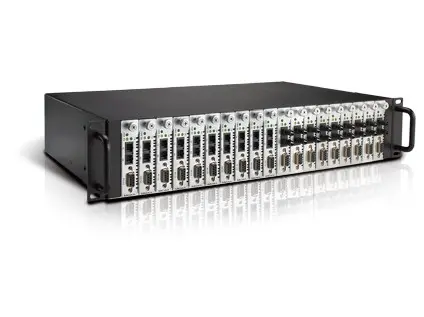

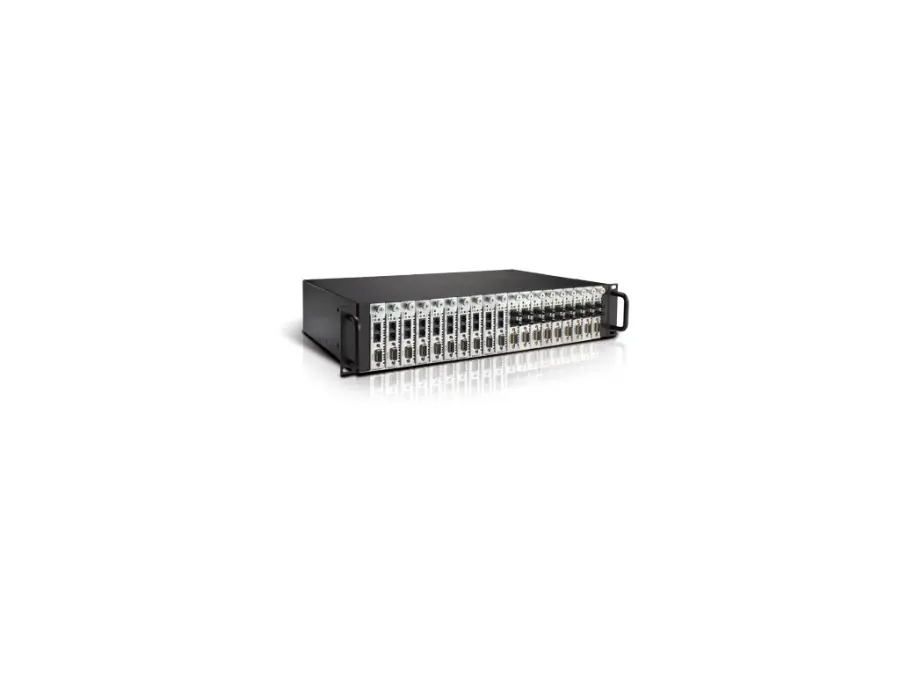

TRC-190-AC

Industrial networking device – Rack chassis, 2U, single 110 to 240 VAC input, with 19 slots on front panel

Power Parameters

• Input Voltage: 100 to 240 VAC
• No. of Power Inputs: 2
• Overload Current Protection: Supported
• Power Consumption: 1.5 A @ 100 to 240 VAC

Physical Characteristics

• Dimensions: 440 x 260 x 88 mm (17.32 x 10.24 x 3.46 in)
• Installation: 19-inch rack mounting
• IP Rating: IP30
• Weight: 5200 g (11.4 lb)

Environmental Limits

• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature (package included): -20 to 75°C (-4 to 167°F)

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC) IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
• Environmental Testing: IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3
• Safety: IEC 62368-1, UL 62368-1
• Vibration: IEC 60068-2-6

MTBF

• Time: 1,055,112 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
