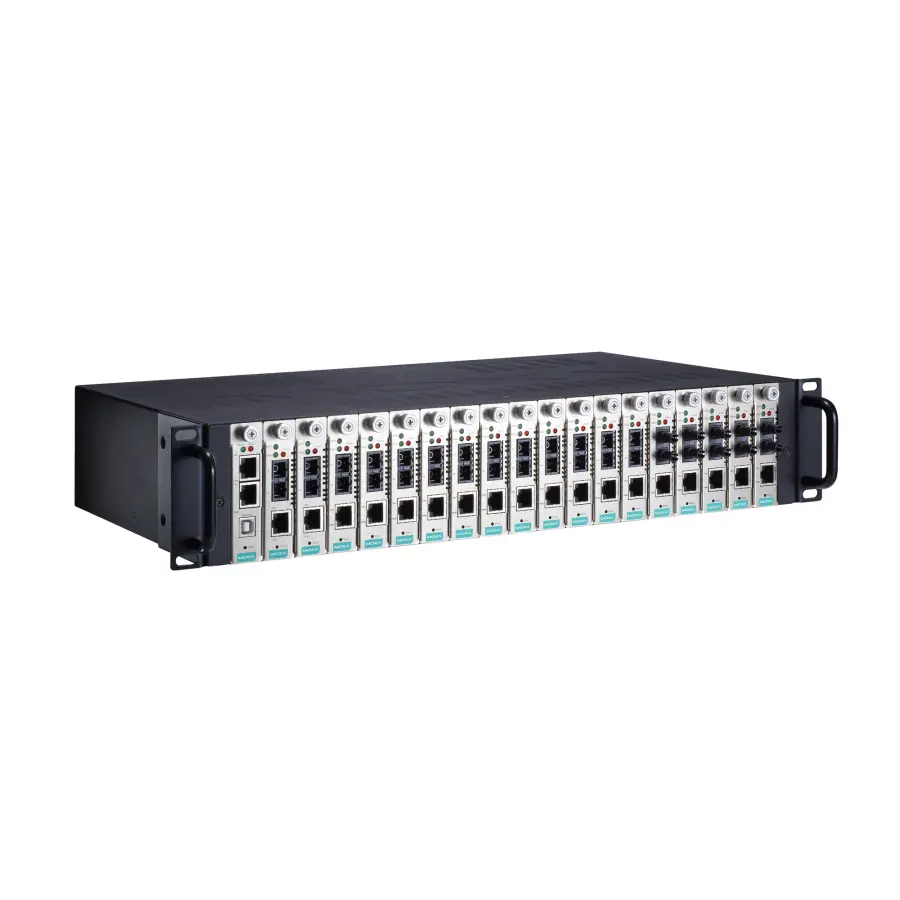

TRC-2190-DC-48V

Industrial networking device – 2U rackmount chassis, with a single 36 to 53 VDC input, 18 slots on the front panel, and CSM-MN01 managed module

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): 2

Ethernet Software Features

• Industrial Protocols: SNMPv1/v2c, SNMPv1/v2c Trap
• Management: DHCP Client, IPv4/IPv6, SNMPv1/v2c, Syslog, TCP/IP, Telnet, TFTP, UDP, Web Console
• MIB: MIB-II
• Security: HTTPS/SSL, Local Account Accessibility, TACACS+, RADIUS, SSH
• Time Management: NTP Client

Security Functions

• Authentication: Local database (password only) RADIUS TACACS+
• Encryption: HTTPS, AES-128, AES-256, RSA-1024, SHA-1, SHA-256, SHA-384
• Security Protocols: SNMPv3 SSHv2 HTTPS (TLS 1.2)

Power Parameters

• Input Voltage: 48 VDC
• No. of Power Inputs: 2
• Overload Current Protection: Supported
• Power Consumption: 3.2 A @ 48 VDC

Physical Characteristics

• IP Rating: IP30
• Dimensions: 440 x 260 x 77 mm (18.6 x 11 x 3.3 in)
• Weight: 5.2 g (11.4 lb)
• Installation: 19-inch rack mounting

Environmental Limits

• Operating Temperature: -20 to 55°C (-4 to 131°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC); Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
• Environmental Testing: IEC 60068-2-1 IEC 60068-2-14 IEC 60068-2-2 IEC 60068-2-3
• Safety: UL 62368-1, IEC 62368-1
• Vibration: IEC 60068-2-6

MTBF

• Time: 1,055,112 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
