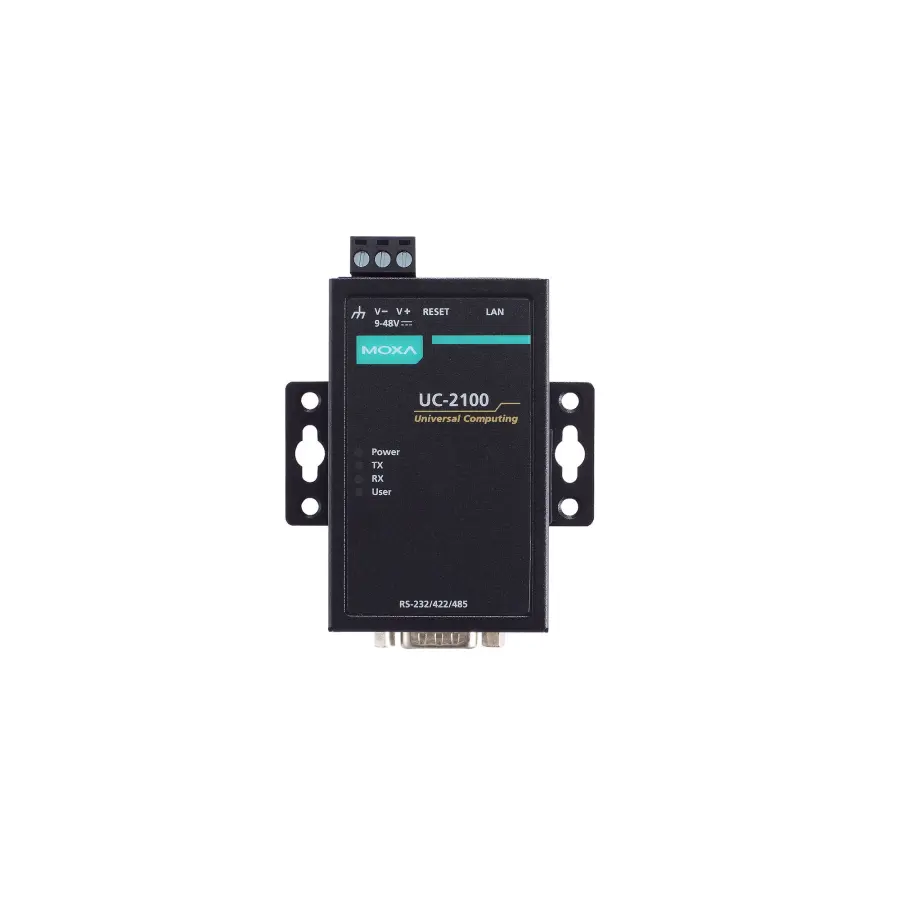

UC-2112-LX

Industrial embedded computer – Compact RISC-based embedded computer with 1 GHz processor, 2 serial ports, 2 LAN ports (1 Gb Ethernet), and microSD slot

Computer

• CPU: Armv7 Cortex-A8 1 GHz
• DRAM: 512 MB DDR3
• Storage Pre-installed: 8 GB eMMC
• Supported OS: Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOLSee www.moxa.com/MIL
• Storage Slot: Micro SD slots x 1

Computer Interface

• Ethernet Ports: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 1 Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 1
• Serial Ports: RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)
• Console Port: RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
• Buttons: Reset button DIP switch for serial port configuration

Ethernet Interface

• Magnetic Isolation Protection: 1.5 kV (built-in)

Serial Interface

• Baudrate: 50 bps to 921.6 kbps
• Data Bits: 5, 6, 7, 8
• Stop Bits: 1, 1.5, 2
• Parity: None, Even, Odd, Space, Mark
• Flow Control: RTS/CTS, XON/XOFF ADDC (automatic data direction control) for RS-485 RTS Toggle (RS-232 only)
• Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
• ESD Protection: 4 kV, for all signals

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-2w: Data+, Data-, GND

LED Indicators

• System: Power x 1
• LAN: 2 per port (10/100 Mbps) 2 per port (10/100/1000 Mbps)
• Serial: 2 per port (Tx, Rx)
• User Programmable: User x 1

Physical Characteristics

• Housing: Metal
• Dimensions (with ears): 99 x 111 x 25.5 mm (3.90 x 4.37 x 1.00 in)
• Dimensions (without ears): 77 x 111 x 25.5 mm (3.03 x 4.37 x 1.00 in)
• Weight: 290 g (0.64 lb)
• Installation: Wall mounting DIN-rail mounting (with optional kit)

Environmental Limits

• Operating Temperature: -10 to 60°C (14 to 140°F)
• Storage Temperature: -20 to 70°C (-4 to 158°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Shock: IEC 60068-2-27
• Vibration: 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)

Power Parameters

• Input Voltage: 9 to 48 VDC
• Input Current: 0.45 A @ 9 VDC, 0.084 A @ 48 VDC
• Power Consumption: 4 W

MTBF

• Time: 982,882 hrs
• Standards: Telcordia (Bellcore) Standard TR/SR

Reliability

• Alert Tools: External RTC (real-time clock)
• Automatic Reboot Trigger: External WDT (watchdog timer)

Standards and Certifications

• EMC: EN 55032/35 UKCA, VCCI, BIS
• EMI: FCC Part 15B Class A ICES-003 Class A EN 55032 Class A EN 61000-6-4 Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
• Safety: IEC 60950-1 UL 60950-1
• International Approval: FCC, CE, UKCA, VCCI BIS
• Hazardous Locations: Class I Division 2 ATEX Zone 2
• Green Product: RoHS, CRoHS, WEEE

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
