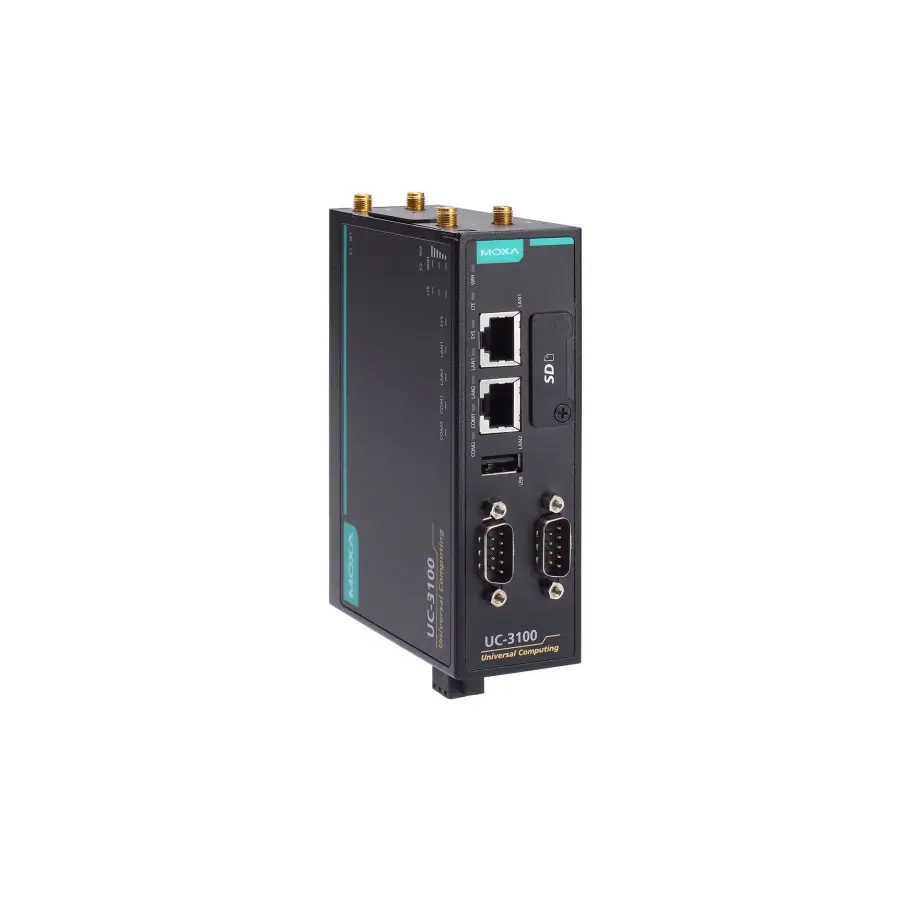

# UC-3121-T-EU-LX

Industrial computer, CPU: Armv7 Cortex-A8 1 GHz, RAM: 1 GB DDR3, Storage: 8 GB eMMC, LAN: 1 per port (10/100 Mbps), OS: Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOLS, Temp: -40 to 70°C

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 182008121155 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial computer – Arm-based computer for the EU region with built-in LTE Cat. 1 and Wi-Fi a/b/g/n modules, 1 GHz processor, 1 GB RAM, 8 GB eMMC, 2 Ethernet ports, 1 serial port, 1 CAN port, 1 USB port, 1 SD slot, -40 to 70°C operating temperatureComputerCPU: Armv7 Cortex-A8 1 GHzDRAM: 1 GB DDR3Supported OS: Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOLSee www.moxa.com/MILStorage Pre-installed: 8 GB eMMCStorage Slot: SD slots x 1Computer InterfaceEthernet Ports: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2Serial Channels: RS-232/422/485 ports x 1 (software-selectable, DB9 male connector)CAN Ports: CAN 2.0 A/B x 1 (DB9 male)Wi-Fi Antenna Connector: RP-SMA x 2Cellular Antenna Connector: SMA x 2SIM Format: NanoNumber of SIMs: 2GPS Antenna Connector: SMA x 1USB 2.0: USB 2.0 hosts x 1, type-A connectorsConsole Port: RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)TPM: TPM v2.0Ethernet InterfaceMagnetic Isolation Protection: 1.5 kV (built-in)Serial InterfaceNo. of Ports: 1Baudrate: 50 bps to 921.60 kbpsData Bits: 5, 6, 7, 8Stop Bits: 1, 1.5, 2Parity: None, Even, Odd, Space, MarkFlow Control: RTS/CTS, XON/XOFF ADDC (automatic data direction control) for RS-485 RTS Toggle (RS-232 only)Serial SignalsRS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GNDRS-422: Tx+, Tx-, Rx+, Rx-, GNDRS-485-2w: Data+, Data-, GNDCAN InterfaceNo. of Ports: 1Baudrate: 10 to 1000 kbpsConnector: DB9 maleIsolation: 2 kV (built-in)Signals: CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GNDCellular InterfaceBand Options: LTE Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) / Band 7 (2600 MHz) / Band 8 (900 MHz) / Band 20 (800 MHz) / Band 28A (700 MHz)UMTS Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) Band 8 (900 MHz)WLAN InterfaceFrequency Band: 2.4 GHz/5 GHzLED IndicatorsSystem: Power x 1CAN: 1 per port (Tx, Rx)Serial: 1 per port (Tx, Rx)LAN: 1 per port (10/100 Mbps)Wireless Signal Strength: Cellular x 3 and Wi-Fi x 3Power ParametersInput Current: 0.83 A @ 9 VDC, 0.21 A @ 36 VDCInput Voltage: 9 to 36 VDCPower Consumption: 7.56 WPhysical CharacteristicsHousing: MetalDimensions (without ears): 128.5 x 89.1 x 41 mm (5.06 x 3.51 x 1.61 in)Weight: Product Only: 550 g (1.22 lb)Installation: DIN-rail mounting Wall mounting (with optional kit)Environmental LimitsOperating Temperature: -40 to 70°C (-40 to 158°F)Storage Temperature (package included): -40 to 85°C (-40 to 185°F)<
