title: "UC-3434A-T-LTE-WiFi"
category: "Industrial Communication > Communication Converters and Controllers > Programmable Communication Controllers with LAN"
---

**Kategorie:** Industrial Communication > Communication Converters and Controllers > Programmable Communication Controllers with LAN

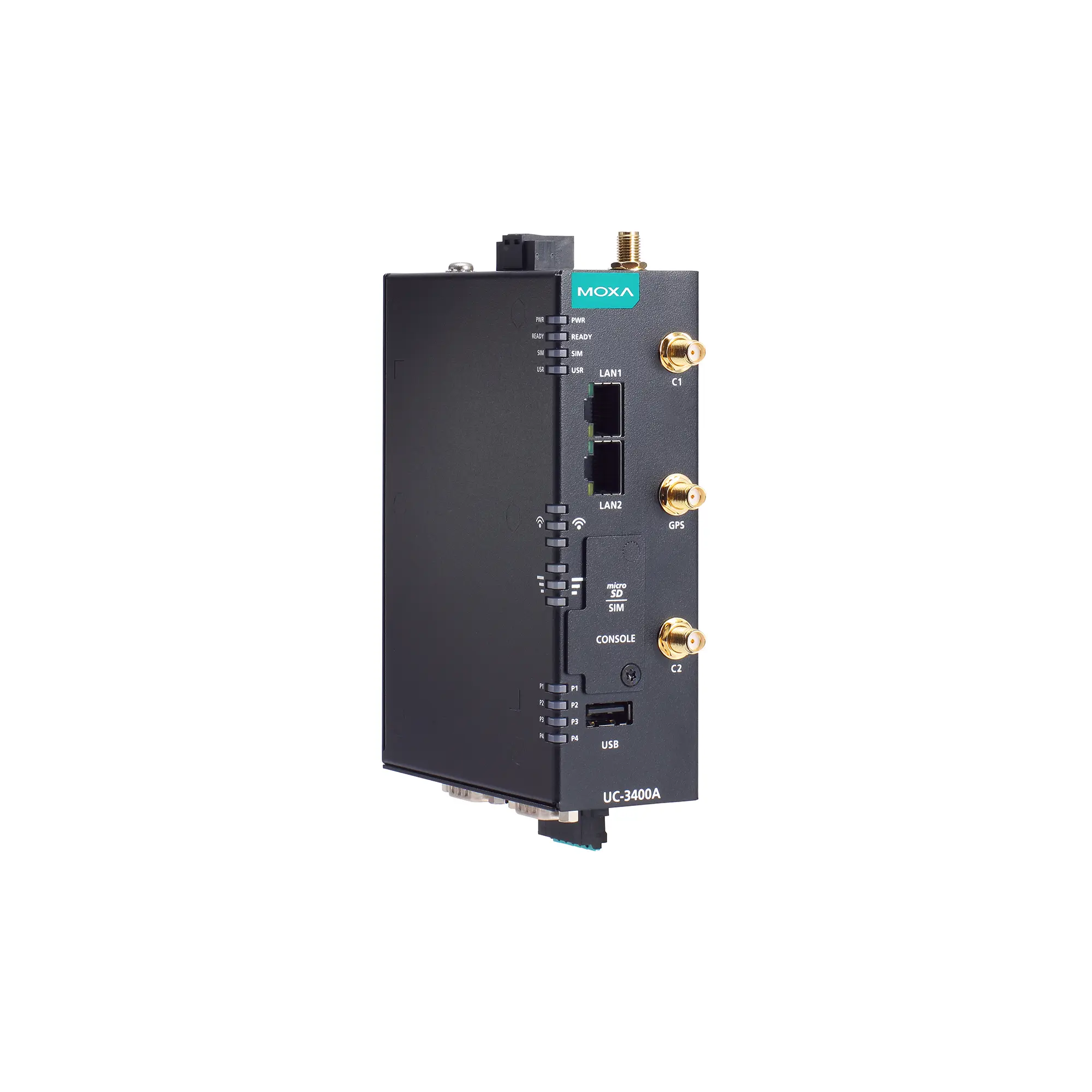

# UC-3434A-T-LTE-WiFi

Industrial computer, CPU: Arm Cortex-A53 quad-core 1.4 GHz, RAM: 4 GB DDR4, Storage: 16 GB eMMC, LAN: 802.11a/b/g/n/ac/ax, OS: Moxa Industrial Linux 3 (Debian 11, kernel 5.10), 2031 EO, Temp: -40

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 182008121215 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial computer – Arm® Cortex®-A53 quad-core 64-bit 1.4 GHz industrial computer with 2 Ethernet ports, 2 RS-232/422/485 serial ports, 2 CAN ports, 1 USB 2.0 port, built-in LTE Cat. 4 and Wi-Fi modules, 9 to 48 VDC, TPM v2.0 module, Moxa Industrial Linux (Debian 11, kernel 5.10), -40 to 70°C operating temperatureComputerCPU: Arm Cortex-A53 quad-core 1.4 GHzDRAM: 4 GB DDR4Supported OS: Moxa Industrial Linux 3 (Debian 11, kernel 5.10), 2031 EOL See www.moxa.com/MILStorage Pre-installed: 16 GB eMMCExpansion Slots: microSD socket x 1Computer InterfaceEthernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2Serial Ports: RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)CAN Ports: CAN 2.0 A/B x 2 (DB9 male)USB 2.0: USB 2.0 hosts x 1, type-A connectorsCellular Antenna Connector: SMA x 2SIM Format: NanoNumber of SIMs: 2GPS Antenna Connector: SMA x 1Wi-Fi Antenna Connector: RP-SMA x 2Console Port: RS-232 (TxD, RxD, GND), 3-pin header output (115200, n, 8, 1)Bluetooth: v5.3TPM: TPM v2.0Ethernet InterfaceNo. of Ports: 2Magnetic Isolation Protection: 1.5 kV (built-in)Serial InterfaceNo. of Ports: 2Baudrate: 50 bps to 921.60 kbpsData Bits: 5, 6, 7, 8Stop Bits: 1, 1.5, 2Parity: None, Even, Odd, Space, MarkFlow Control: RTS/CTS, XON/XOFF ADDC (automatic data direction control) for RS-485Serial SignalsRS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GNDRS-422: Tx+, Tx-, Rx+, Rx-, GNDRS-485-2w: Data+, Data-, GNDRS-485-4w: Tx+, Tx-, Rx+, Rx-, GNDCAN InterfaceNo. of Ports: 2Baudrate: 10 to 1000 kbpsIndustrial Protocols: CAN 2.0A CAN 2.0BConnector: 6-pin terminal blockIsolation: 2 kV (built-in)Signals: CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GNDCellular InterfaceBand Options: LTE bands: Band 1 (2100 MHz) / Band 2 (1900 MHz) / Band 3 (1800 MHz) / Band 4 (1700MHz) / Band 5 (850 MHz) / Band 7 (2600 MHz) / Band 8 (700 MHz) / Band 9 (1800 MHz) /Band 12 (700 MHz) / Band 13 (700 MHz) / Band 14 (700 MHz) / Band 18 (850 MHz) /Band 19 (850 MHz) / Band 20 (800 MHz) / Band 25 (1900 MHz) / Band 26 (850 MHz) /Band 28 (700 MHz)3G bands: Band 1 (2100 MHz) / Band 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850MHz) / Band 6 (800 MHz) / Band 8 (700 MHz) / Band 19 (850 MHz)2G bands: Band 2 (1900 MHz) / Band 3 (1800 MHz) / Band 5 (850 MHz) / Band 8 (700MHz)GPS InterfaceReceiver Types: GPS/GLONASS/BeiDou/Galileo/QZSSAccuracy: Position: < 2.0 m @CEP50Time to First Fix (TTFF): Hot start: 1.1 s Warm start: 22.1 s Cold start: 29.9 sSensitivity: Tracking: -160 dBm Acquisition: -147 dBm Cold starts: -145 dBmUpdate Rate: Minimum 1 HzWLAN InterfaceWLAN Standards: 802.11a/
