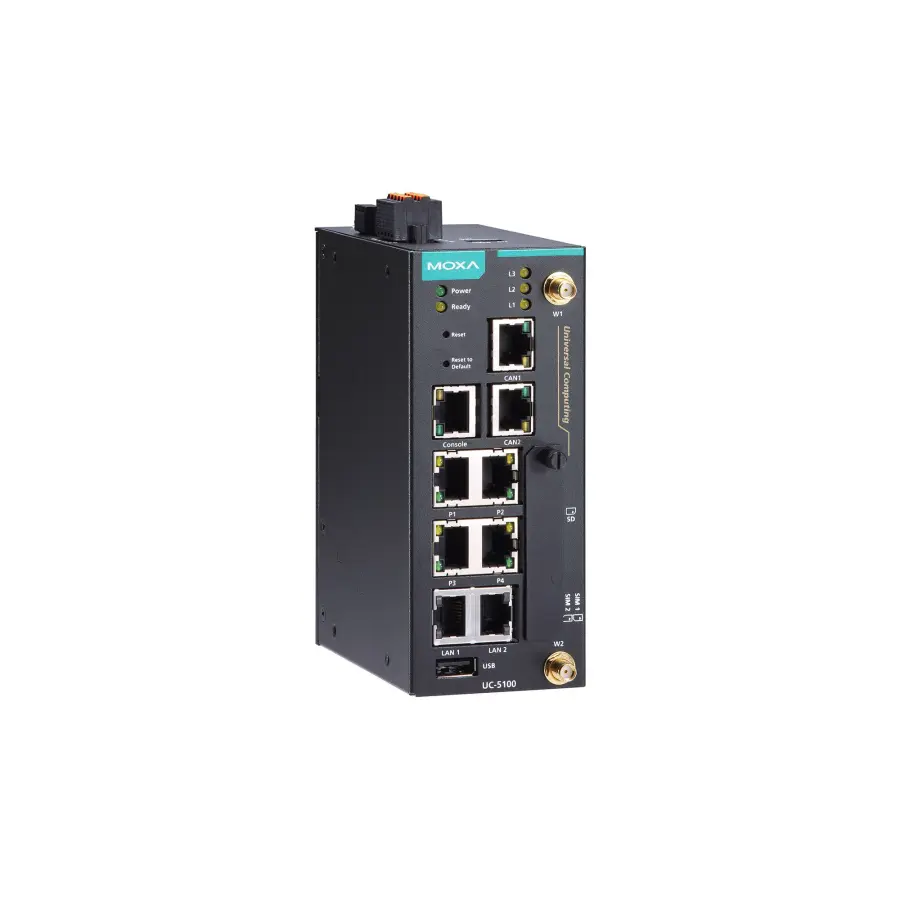

# UC-5111-T-LX

Industrial computer, CPU: Armv7 Cortex-A8 1 GHz, RAM: 512 MB DDR3, Storage: 8 GB eMMC, LAN: 2 per port (10/100 Mbps), OS: Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOLS, Temp: -40 to 85

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 182008121335 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial computer – Arm-based industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, 1 SD slot, 2 CAN ports, 4 DIs, 4 DOs, 1 USB port, -40 to 85°C operating temperature rangeComputerCPU: Armv7 Cortex-A8 1 GHzDRAM: 512 MB DDR3Supported OS: Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOLSee www.moxa.com/MILStorage Pre-installed: 8 GB eMMCStorage Slot: SD slots x 1Computer InterfaceEthernet Ports: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2Serial Ports: RS-232/422/485 ports (software-selectable, RJ45 connector) x 4Digital Input: DIs x 4Digital Output: DOs x 4USB 2.0: USB 2.0 hosts x 1, type-A connectorsNumber of SIMs: 2SIM Format: MicroButtons: Reset button DIP switch for serial and CAN port configurationConsole Port: RS-232 (TxD, RxD, GND), RJ45 output (115200, n, 8, 1)Ethernet InterfaceMagnetic Isolation Protection: 1.5 kV (built-in)Serial InterfaceBaudrate: 50 bps to 921.60 kbpsData Bits: 7, 8Stop Bits: 1, 2Parity: None, Even, Odd, Space, MarkFlow Control: RTS/CTS, XON/XOFF ADDC (automatic data direction control) for RS-485 RTS Toggle (RS-232 only)Serial SignalsRS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GNDRS-422: Tx+, Tx-, Rx+, Rx-, GNDRS-485-2w: Data+, Data-, GNDCAN InterfaceNo. of Ports: 2Signals: CAN_L, CAN_H, CAN Signal GNDTerminator: N/A, 120 ohms (by DIP)Digital InputsVoltage: 0 to 0.8 VDC 2.0 to 5.5 VDCDigital OutputsCurrent Rating: 24 mA per channelVoltage: 0 to 0.55 VDC 2.5 to 3.3 VDCLED IndicatorsSystem: Programmable x 3LAN: 2 per port (10/100 Mbps)Serial: 2 per port (Tx, Rx)CAN: 2 per port (Tx, Rx)Physical CharacteristicsDimensions: 57 x 136 x 100 mm (2.24 x 5.35 x 3.94 in)Weight: 600 g (1.32 lb)Housing: MetalInstallation: DIN-rail mounting Wall mounting (with optional kit)Power ParametersInput Voltage: 9 to 48 VDCInput Current: 0.95 A @ 9 VDC, 0.23 A @ 48 VDCPower Consumption: 11 WEnvironmental LimitsOperating Temperature: -40 to 85°C (-40 to 185°F)Storage Temperature: -40 to 85°C (-40 to 185°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Vibration: 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)Shock: IEC 60068-2-27Standards and CertificationsEMC: EN 55032/35 EN 61000-6-2/-6-4 UKCA VCCIEMI: EN 55032 Class A EN 61000-6-4 Class A FCC Part 15B Class A ICES-003 Class AEMS: IEC 61000-4-2 ESD: Contact
