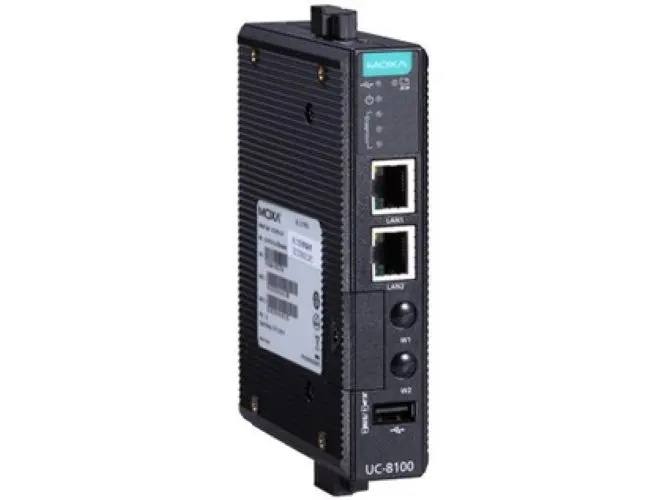

UC-8132-LX

Industrial computer – Arm-based wireless-enabled DIN-rail industrial computer with 300 MHz CPU, 2 Ethernet ports, 2 serial ports, 1 Mini PCIe slot

Computer

• CPU: Armv7 Cortex-A8 300 MHz
• DRAM: 256 MB DDR3
• Supported OS: Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOLSee www.moxa.com/MIL
• Storage Pre-installed: 8 GB eMMC
• Storage Slot: SD slots x 1

Computer Interface

• Ethernet Ports: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
• Serial Ports: RS-232/422/485 ports x 2 (software-selectable, [X2] connector)
• USB 2.0: USB 2.0 hosts x 1, type-A connectors
• Expansion Slots: mPCIe slots x 1
• Number of SIMs: 1
• SIM Format: Mini
• Buttons: Reset button
• Console Port: RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)

Ethernet Interface

• Magnetic Isolation Protection: 1.5 kV (built-in)

Serial Interface

• Baudrate: 300 bps to 921.6 kbps
• Data Bits: 5, 6, 7, 8
• Stop Bits: 1, 1.5, 2
• Parity: None, Even, Odd, Space, Mark
• Flow Control: RTS/CTS, XON/XOFF ADDC (automatic data direction control) for RS-485 RTS Toggle (RS-232 only)

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-2w: Data+, Data-, GND

LED Indicators

• System: Power x 1 SD slots x 1 Programmable x 3 USB x 1
• Wireless Signal Strength: Cellular/Wi-Fi x 3

Power Parameters

• Input Voltage: 12 to 24 VDC
• Input Current: 480 mA @ 12 VDC 225 mA @ 24 VDC
• Power Consumption: 5.4 W

Reliability

• Alert Tools: RTC (real-time clock)
• Automatic Reboot Trigger: Built-in WDT

Physical Characteristics

• Dimensions: 101 x 27 x 128 mm (3.98 x 1.06 x 5.04 in)
• Weight: 224 g (0.5 lb)
• Housing: Plastic
• Installation: DIN-rail mounting Wall mounting (with optional kit)

Environmental Limits

• Operating Temperature: -10 to 60°C (14 to 140°F)
• Storage Temperature (package included): -20 to 80°C (-4 to 176°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Shock: IEC 60068-2-27
• Vibration: 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)

Standards and Certifications

• EMC: EN 55032/35 BIS UKCA UC-8162 KC UC-8112 BSMI
• EMI: EN 55032 Class A EN 61000-6-4 Class A FCC Part 15B Class A ICES-003 Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF
• Safety: UL 60950-1
• International Approval: BIS CE FCC ISED UKCA UC-8162 KC UC-8112 BSMI
• Green Product: RoHS, CRoHS, WEEE

MTBF

• Time: 1,195,173 hrs
• Standards: Telcordia (Bellcore) Standard

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
