title: "UC-8410A-LX"
category: "Industrial Communication > Communication Converters and Controllers > Programmable Communication Controllers with LAN"
---

**Kategorie:** Industrial Communication > Communication Converters and Controllers > Programmable Communication Controllers with LAN

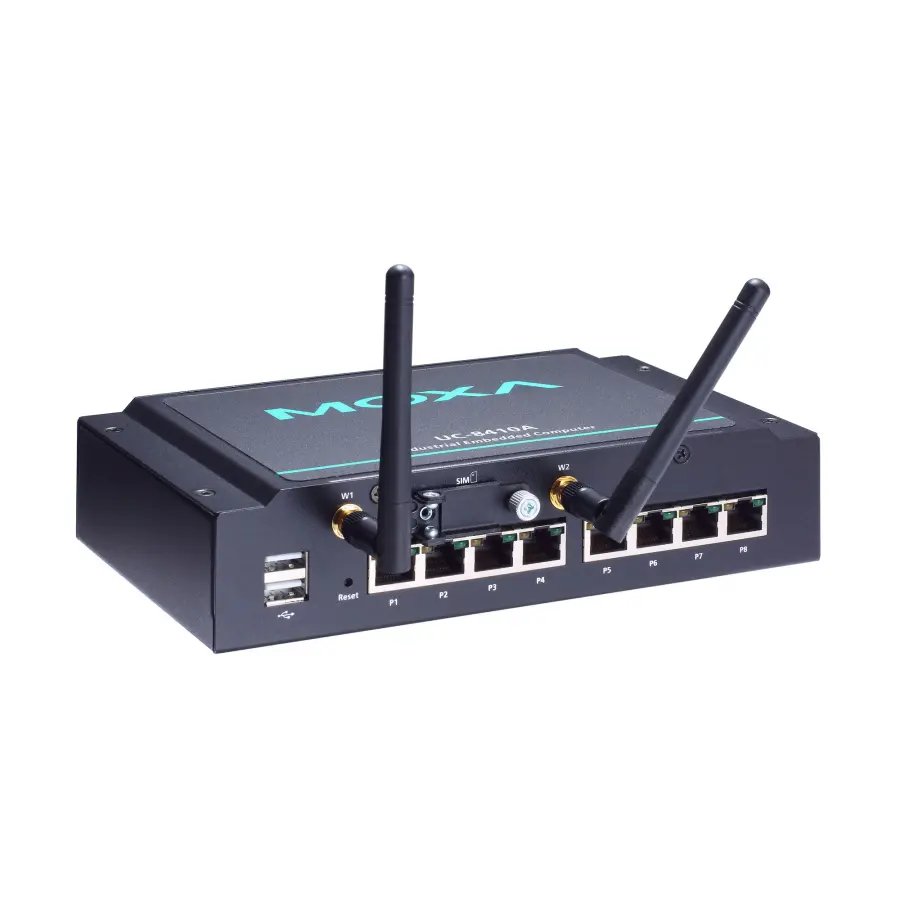

# UC-8410A-LX

Industrial computer, CPU: Armv7 Cortex-A7 dual-core 1 GHz, RAM: Power x 1 System ready x 1 Storage x 1 Programmable x 10, Storage: 8 GB eMMC, LAN: 2 per port (10/100/1000 Mbps), OS: Linux Debian 8

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 182008122083 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial computer – Arm-based wireless-enabled wall-mount industrial computer with Cortex-A7 1 GHz dual-core, 1 SD slot with 1 GB card preinstalled, 512 MB DDR3L RAM, 8 serial ports, 4 DIs, 4 DOs, 3 Ethernet ports, wireless enabled, 1 mSATA slot, 1 USB port, Debian 8, -10 to 60°C operating temperatureComputerCPU: Armv7 Cortex-A7 dual-core 1 GHzSystem Memory Pre-installed: 1 GB DDR3LStorage Pre-installed: 8 GB eMMCStorage Slot: SD slots x 1 mSATA slots x 1, internal mini-PCIe socketSupported OS: Linux Debian 8 (Linux kernel v4.1), 2022 EOLMoxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOLSee www.moxa.com/MILComputer InterfaceEthernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 3Serial Ports: RS-232/422/485 ports x 8, software selectable (RJ45)USB 2.0: USB 2.0 hosts x 2, type-A connectorsDigital Input: DIs x 4Digital Output: DOs x 4Expansion Slots: mPCIe slots x 1Cellular Antenna Connector: SMA x 2Number of SIMs: 1SIM Format: MiniConsole Port: 1 x 4-pin header to DB9 console portEthernet InterfaceMagnetic Isolation Protection: 1.5 kV (built-in)Serial InterfaceBaudrate: 50 bps to 115.2 kbpsData Bits: 5, 6, 7, 8Stop Bits: 1, 1.5, 2Parity: None, Even, Odd, Space, MarkFlow Control: RTS/CTS, XON/XOFF ADDC (automatic data direction control) for RS-485 RTS Toggle (RS-232 only)Serial SignalsRS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GNDRS-422: Tx+, Tx-, Rx+, Rx-, GNDRS-485-2w: Data+, Data-, GNDRS-485-4w: Tx+, Tx-, Rx+, Rx-, GNDDigital InputsChannel-to-Channel Isolation: 3000 VDCConnector: Screw-fastened Euroblock terminalDry Contact: On: short to GND Off: openSensor Type: Dry contact Wet contact (NPN or PNP)Wet Contact (DI to COM): On: 10 to 30 VDC Off: 0 to 3 VDCDigital OutputsConnector: Screw-fastened Euroblock terminalCurrent Rating: 200 mA per channelI/O Type: SinkVoltage: Open-drain to 30 VDCLED IndicatorsSystem: Power x 1 System ready x 1 Storage x 1 Programmable x 10LAN: 2 per port (10/100/1000 Mbps)Serial: 2 per port (Tx, Rx)Power ParametersInput Current: 1.57A @ 12 VAC max.Input Voltage: 12 to 48 VDCPower Consumption: 19 W (max.)Power Connector: Terminal block (for DC models)Physical CharacteristicsDimensions: 200 x 120 x 48.6 mm (7.87 x 4.72 x 1.91 in)Weight: 1,000 g (2.21 lb)Housing: MetalIP Rating: IP30Installation: Wall mounting (standard)Environmental LimitsOperating Temperature: -10 to 60°C (14 to 140°F)Storage Temperature (package
