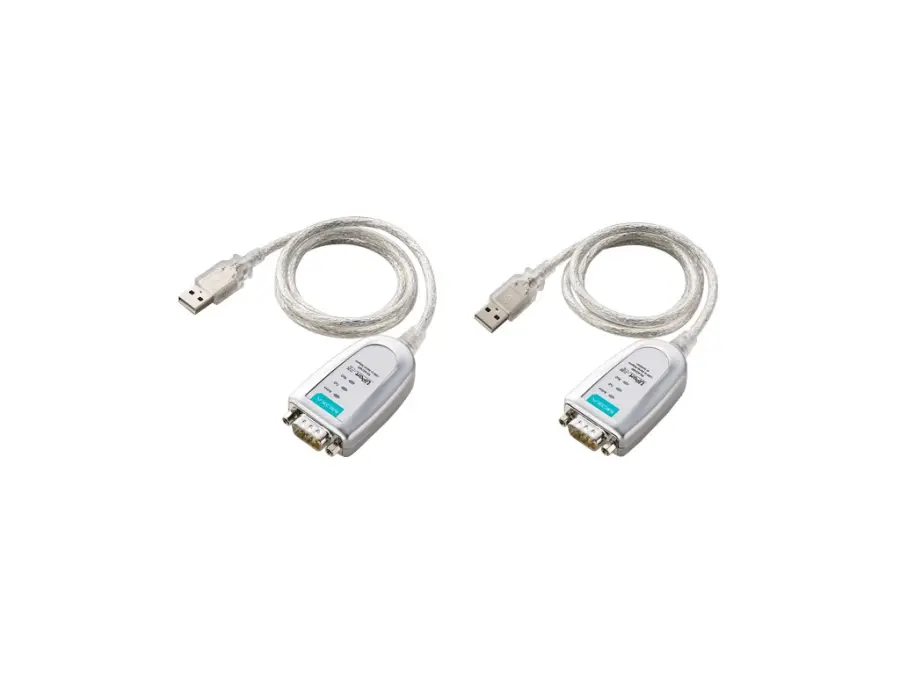

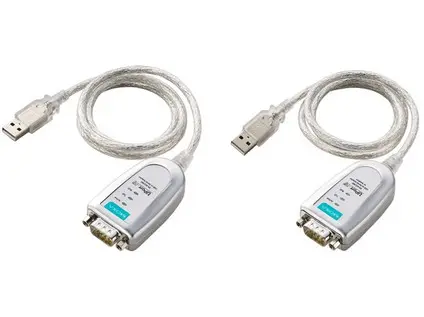

# UPort 1130I

Serial converter, Serial: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, Temp: 0 to 55°C (32 to 131°F), Power: 5 VDC

**Dostupnost:** In stock (2 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 181608021225 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Serial converter – 1-port RS-422/485 USB-to-serial converter with 2 kV optical isolationUSB InterfaceSpeed: 12 MbpsUSB Connector: USB Type AUSB Standards: USB 2.0 compatible, USB 1.0/1.1 compliantSerial InterfaceNo. of Ports: 1Connector: DB9 maleBaudrate: 50 bps to 921.6 kbpsData Bits: 5, 6, 7, 8Stop Bits: 1, 1.5, 2Parity: None, Even, Odd, Space, MarkFlow Control: None RTS/CTS XON/XOFFIsolation: 2 kVSerial Standards: RS-422/485Serial SignalsRS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GNDRS-422: Tx+, Tx-, Rx+, Rx-, GNDRS-485-4w: Tx+, Tx-, Rx+, Rx-, GNDRS-485-2w: Data+, Data-, GNDSerial Software FeaturesWindows Drivers: Windows 11, 10, 8.1, 8, 7, Vista, ME, and XP Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NTLinux Drivers: Kernel 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.xMac Drivers: macOS 10.12 to 10.15Arm®-based Platform Support: Linux kernel 6.x, 5.x, and 4.x Windows 11Virtual Machine: VMware Fusion (Windows on macOS 10.12 to 10.15) VMWare ESXi (Windows 7 to 10, Windows Server 2008 R2 to 2019) VMWare ESXi (Linux kernel 5 and 4) Parallels Desktop (Windows on macOS 10.12 to 10.15)Android API: Android 3.1.x and laterPower ParametersInput Voltage: 5 VDCInput Current: 65 mAPhysical CharacteristicsHousing: ABS + PolycarbonateDimensions: 37.5 x 20.5 x 60 mm (1.48 x 0.81 x 2.36 in)Weight: 200 g (0.44 lb)Environmental LimitsOperating Temperature: 0 to 55°C (32 to 131°F)Storage Temperature (package included): -20 to 70°C (-4 to 158°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and CertificationsEMC: EN 55032/35EMI: CISPR 32, FCC Part 15B Class 1EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVIEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/mIEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kVIEC 61000-4-5 Surge: Power: 2 kVIEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/mIEC 61000-4-8 PFMFDeclarationGreen Product: RoHS, CRoHS, WEEEMTBFTime: 1,949,025 hrsStandards: MIL-HDBK-217F Telcordia (Bellcore), GB

## Technická specifikace

| Vlastnost | Hodnota |
| --- | --- |
| Max. provozní teplota | Max. provozní teplota
55 °C |
| Počet portů RS-422/485 | Počet portů RS-422/485
1 |
| Funkce převodníku | Funkce převodníku
USB-to-serial převodník |
| Galvanické oddělení portů | Galvanické oddělení portů
Ano |

## Soubory ke stažení

* [Katalog UPort_1100_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/UPort_1100_Series_ELVAC15.pdf)
* [Manual UPort_1100_Series_Users_Manual_v6_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/UPort_1100_Series_Users_Manual_v6_ELVAC15.pdf)
