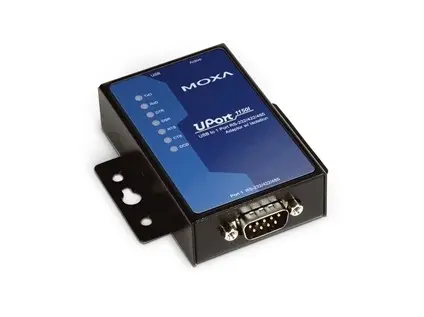

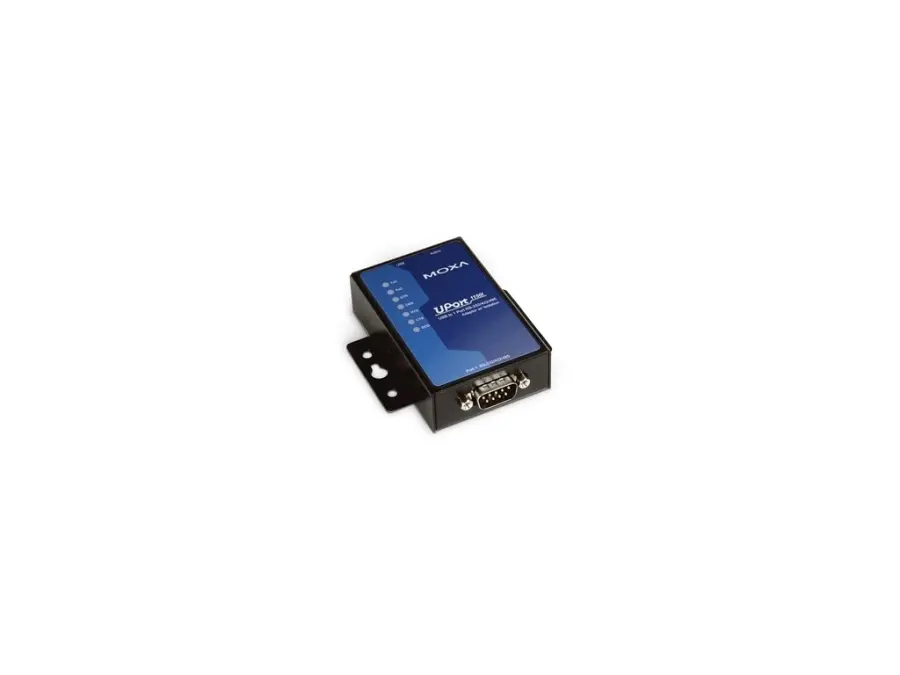

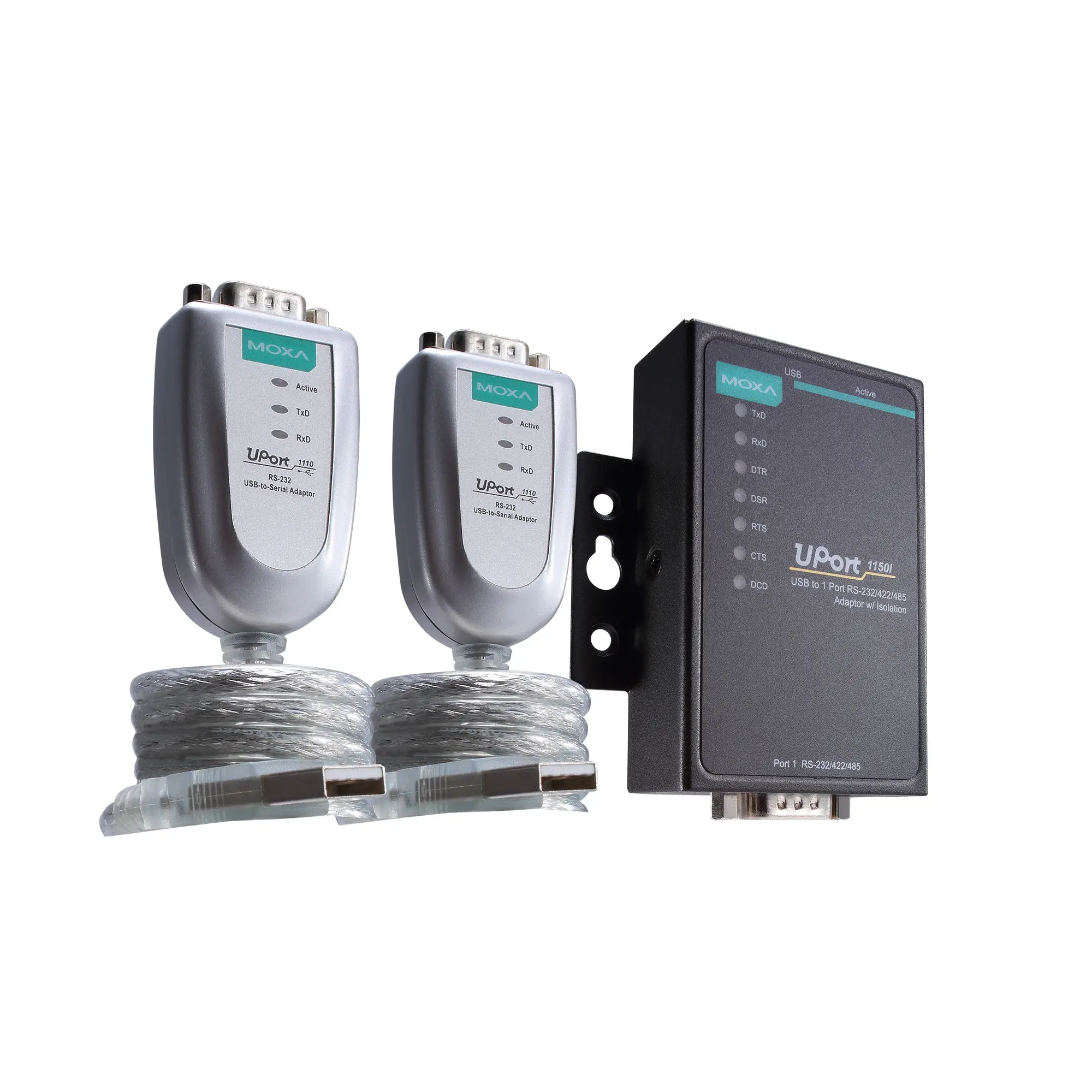

UPort 1150I

Serial converter – 1-port RS-232/422/485 USB-to-serial converter with optical isolation protection

USB Interface

• Speed: 12 Mbps
• USB Connector: USB Type B
• USB Standards: USB 2.0 compatible, USB 1.0/1.1 compliant

Serial Interface

• No. of Ports: 1
• Connector: DB9 male
• Baudrate: 50 bps to 921.6 kbps
• Data Bits: 5, 6, 7, 8
• Stop Bits: 1, 1.5, 2
• Parity: None, Even, Odd, Space, Mark
• Flow Control: None RTS/CTS XON/XOFF
• Isolation: 2 kV
• Serial Standards: RS-232/422/485

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-2w: Data+, Data-, GND

Serial Software Features

• Windows Drivers: Windows 11, 10, 8.1, 8, 7, Vista, ME, and XP Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT
• Linux Drivers: Kernel 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
• Mac Drivers: macOS 10.12 to 10.15
• Arm®-based Platform Support: Linux kernel 6.x, 5.x, and 4.x Windows 11
• Virtual Machine: VMware Fusion (Windows on macOS 10.12 to 10.15) VMWare ESXi (Windows 7 to 10, Windows Server 2008 R2 to 2019) VMWare ESXi (Linux kernel 5 and 4) Parallels Desktop (Windows on macOS 10.12 to 10.15)
• Android API: Android 3.1.x and later

Power Parameters

• Input Voltage: 5 VDC
• Input Current: 260 mA

Physical Characteristics

• Housing: Metal
• Dimensions: 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in)
• Weight: 320 g (0.71 lb)

Environmental Limits

• Operating Temperature: 0 to 55°C (32 to 131°F)
• Storage Temperature (package included): -20 to 70°C (-4 to 158°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class 1
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kVIEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/mIEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kVIEC 61000-4-5 Surge: Power: 2 kVIEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/mIEC 61000-4-8 PFMF
• Safety: UL 60950-1

Declaration

• Green Product: RoHS, CRoHS, WEEE

MTBF

• Time: 1,949,025 hrs
• Standards: MIL-HDBK-217F Telcordia (Bellcore), GB
