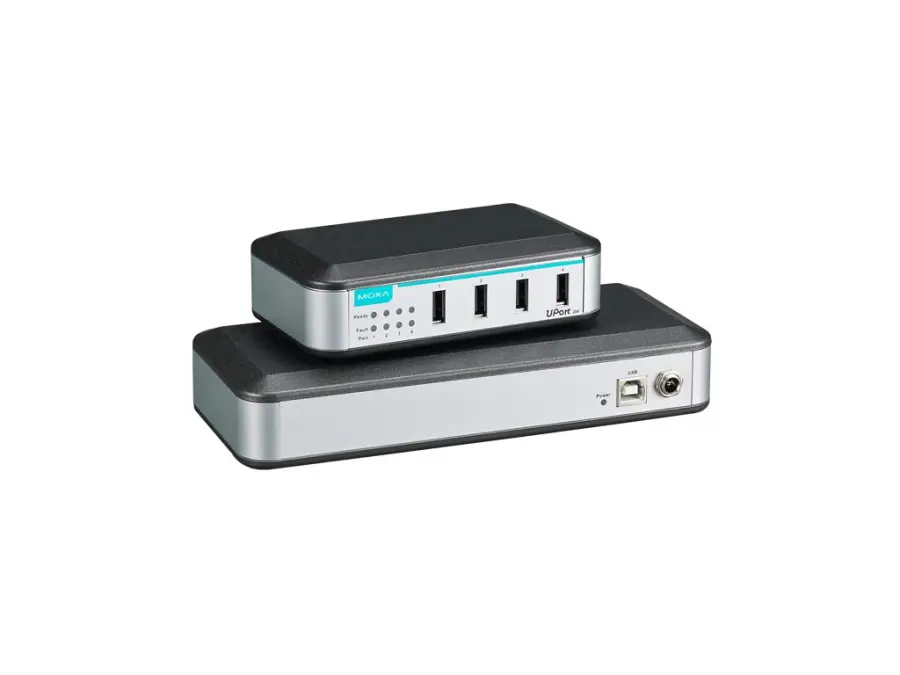

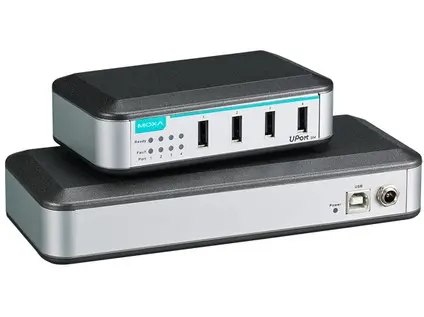

# UPort 204

Industrial edge connectivity device, Temp: 0 to 60°C (32 to 140°F), Power: 12 to 40 VDC

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 181608026320 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial edge connectivity device – 4-port entry-level USB hub, adaptor includedUSB InterfaceSpeed: 12 Mbps, 480 MbpsUSB Connector: USB Type BUSB Standards: USB 1.1/2.0 compliantNo. of USB Ports: 4Power ParametersInput Voltage: 12 to 40 VDCInput Current: 1.21 A @ 12 VDCPhysical CharacteristicsHousing: Polycarbonate (PC)Dimensions: 70 x 35 x 120 mm (2.76 x 1.38 x 4.72 in)Weight: Packaged: 805 g (1.77 lb) Product only: 800 g (1.76 lb)Environmental LimitsOperating Temperature: 0 to 60°C (32 to 140°F)Storage Temperature (package included): -20 to 75°C (-4 to 167°F)Standards and CertificationsEMC: EN 55032/24EMI: CISPR 32, FCC Part 15B Class AEMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 0 V/m IEC 61000-4-8 PFMFEnvironmental Testing: IEC 60068-2-1 IEC 60068-2-3Freefall: IEC 60068-2-34DeclarationGreen Product: RoHS, CRoHS, WEEEMTBFTime: 1,577,573 hrsStandards: Telcordia (Bellcore), GBWarrantyWarranty Period: 5 yearsDetails: See www.moxa.com/warranty

## Technická specifikace

| Vlastnost | Hodnota |
| --- | --- |
| Max. provozní teplota | Max. provozní teplota
60 °C |
| Funkce převodníku | Funkce převodníku
USB rozbočovač |
| Počet portů USB Host | Počet portů USB Host
4 |
| Galvanické oddělení portů | Galvanické oddělení portů
Ne |

## Soubory ke stažení

* [Katalog UPort_204_207_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/UPort_204_207_ELVAC15.pdf)
* [Manual UPort_200_400_QIG_v3_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/UPort_200_400_QIG_v3_ELVAC15.pdf)
