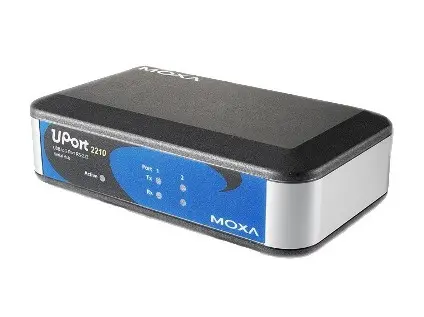

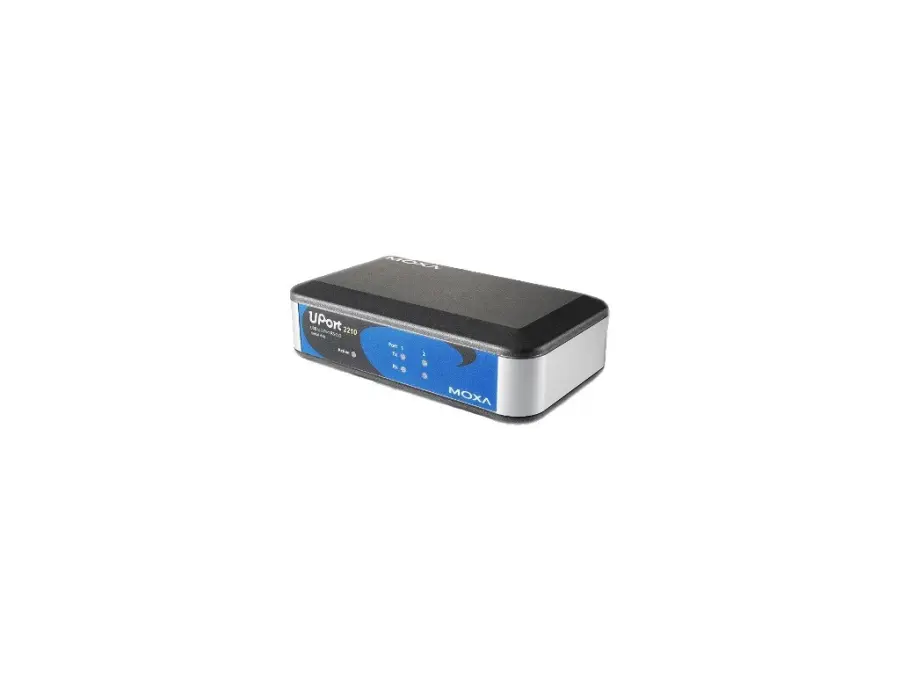

# UPort 2210

Serial converter, Serial: RS-232, Temp: 0 to 55°C (32 to 131°F), Power: 5 VDC

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 181608021120 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Serial converter – 2-port RS-232 USB-to-serial converterUSB InterfaceSpeed: 12 Mbps, 480 MbpsUSB Connector: USB Type BUSB Standards: USB 1.1/2.0 compliantSerial InterfaceSerial Standards: RS-232No. of Ports: 2Connector: DB9 maleBaudrate: 50 bps to 921.6 kbpsData Bits: 5, 6, 7, 8Stop Bits: 1, 1.5, 2Parity: None, Even, Odd, Space, MarkFlow Control: None, RTS/CTS, XON/XOFFSerial SignalsRS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GNDPower ParametersInput Voltage: 5 VDCInput Current: 140 mA @ 5 VDCPhysical CharacteristicsHousing: Polycarbonate (PC)Dimensions: 70 x 35 x 120 mm (2.76 x 1.38 x 4.72 in)Weight: Packaged: 325 g (0.72 lb) Product only: 120 g (0.26 lb)Environmental LimitsOperating Temperature: 0 to 55°C (32 to 131°F)Storage Temperature (package included): -20 to 75°C (-4 to 167°F)Ambient Relative Humidity: 5 to 95% (non-condensing)Standards and CertificationsEMC: EN 55032/24EMI: CISPR 32, FCC Part 15B Class BEMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 4 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMFSafety: UL 60950-1Vibration: IEC 60068-2-6Freefall: IEC 60068-2-32DeclarationGreen Product: RoHS, CRoHS, WEEEMTBFTime: 4,221,778 hrsStandards: Telcordia (Bellcore), GBWarrantyWarranty Period: 5 yearsDetails: See www.moxa.com/warranty

## Technická specifikace

| Vlastnost | Hodnota |
| --- | --- |
| Max. provozní teplota | Max. provozní teplota
55 °C |
| Počet portů RS-232 | Počet portů RS-232
2 |
| Funkce převodníku | Funkce převodníku
USB-to-serial převodník |
| Galvanické oddělení portů | Galvanické oddělení portů
Ne |

## Soubory ke stažení

* [Katalog UPort_2210_2410_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/UPort_2210_2410_ELVAC15.pdf)
* [Manual UPort_2000_Series_Users_Manual_v3_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/UPort_2000_Series_Users_Manual_v3_ELVAC15.pdf)
