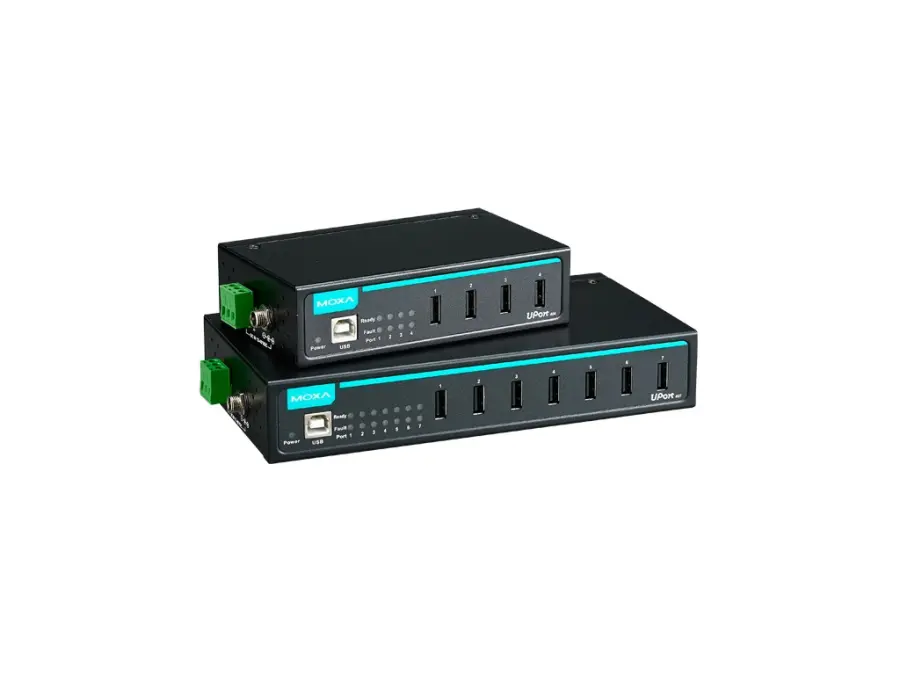

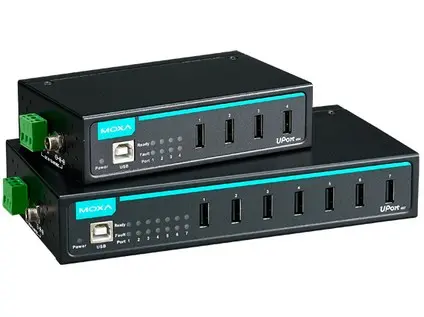

UPort 404-T w/o Adapter

Industrial edge connectivity device – 4-port industrial USB hub, without adatper, -40 to 85°C operating temperature

USB Interface

• Speed: 12 Mbps, 480 Mbps
• USB Connector: USB Type B
• USB Standards: USB 1.1/2.0 compliant
• No. of USB Ports: 4

Power Parameters

• Input Current: 1.3 A @ 12 VDC
• Input Voltage: 12 to 40 VDC

Physical Characteristics

• Housing: Aluminum
• Dimensions: 80 x 35 x 130 mm (3.15 x 1.38 x 5.12 in)
• Weight: Product With Package: 855 g (1.88 lb) Product Only: 850 g (1.87 lb)
• Installation: Wall mounting DIN-rail mounting (optional)

Environmental Limits

• Operating Temperature: -40 to 85°C (-40 to 185°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 61000-6-2/-6-4
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 0 V/m IEC 61000-4-8 PFMF
• Environmental Testing: IEC 60068-2-1
• Safety: UL 508
• Freefall: IEC 60068-2-34

Declaration

• Green Product: RoHS, CRoHS, WEEE

MTBF

• Time: 1,490,340 hrs
• Standards: Telcordia (Bellcore), GB

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty
