Description

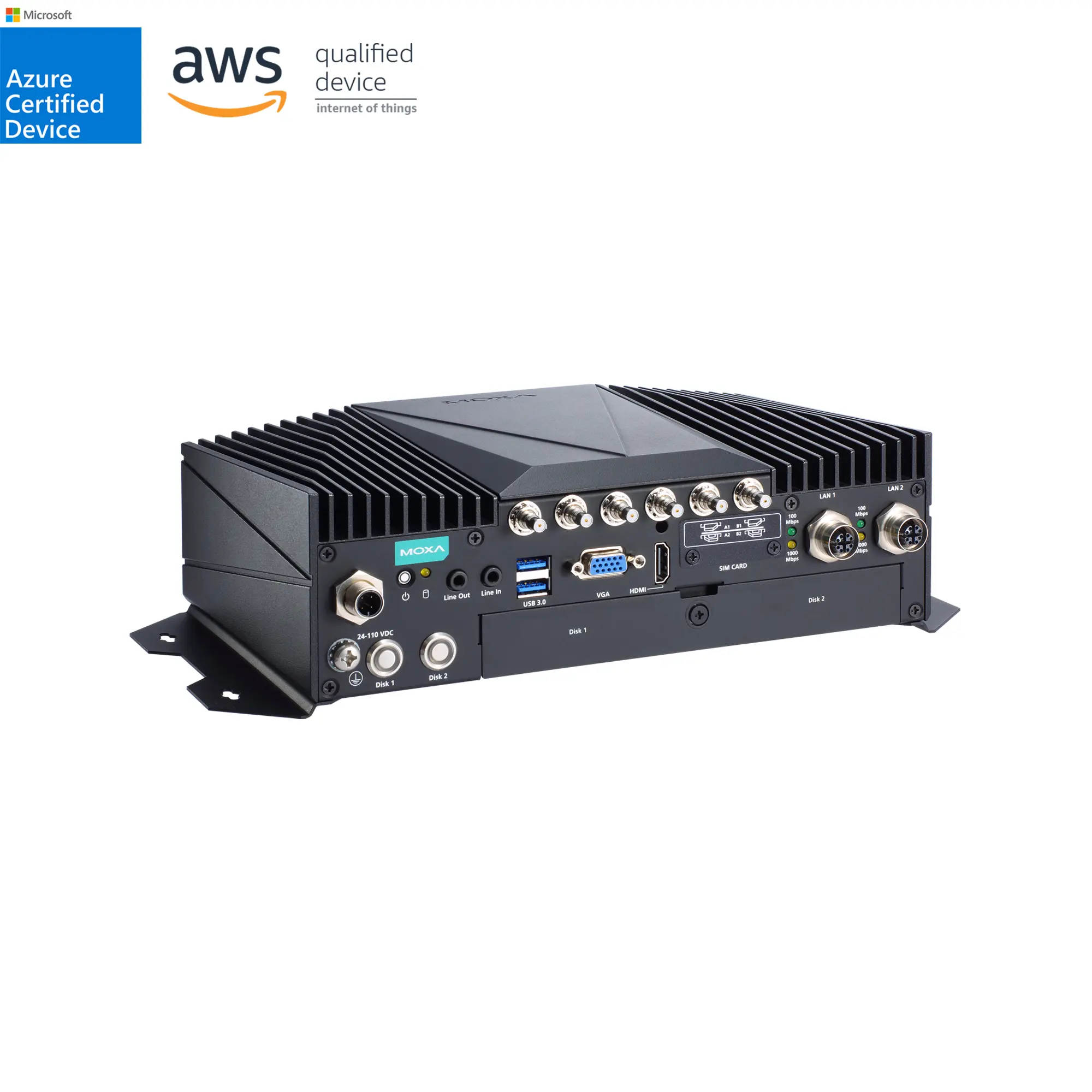

Industrial embedded computer – x86 computer with Intel 8th Celeron 4305UE 2.0 GHz processor, 1 HDMI port, 1 VGA port, 2 GbE ports, 4 COM ports, 6 DIs, 2 DOs, 1 mSATA slot, dual 2.5-inch SSD/HDD slots, 2 mPCIe slots, 4 USB ports, 1 QMA connector, 24 to 110 VDC with isolation, -40 to 70°C operating temperature, conformal coating
Computer
- CPU: Intel® Celeron® 4305UE processor (2M cache, 2 GHz)
- Storage Slot: 2.5-inch HDD/SSD slots x 2 mSATA slots x 1
- Supported OS: Order via the Moxa Computer Configuration System (CCS):Windows 10 Embedded IoT Ent 2019 LTSC 64-bitWindows 10 Embedded IoT Ent 2021 LTSC 64-bitWL Models: Moxa Industrial Linux 2.x (Debian 10, kernel 4.19)KL Models: Debian 9 (kernel 4.9) Download Drivers From Website:Linux Debian 11/Ubuntu 20.04/CentOS 7.9 drivers
- System Memory Slot: SODIMM DDR4 slots x 2
- DRAM: 32 GB max
- Graphics Controller: Intel® HD Graphics 620
Computer Interface
- Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2
- Digital Output: DOs x 2
- Serial Ports: RS-232/422/485 ports x 4 (software-selectable, DB9 male connector)
- Digital Input: DIs x 6
- USB 3.0: USB 3.0 hosts x 4, type-A connectors
- Audio Input/Output: Line in x 1, Line out x 1, 3.5 mm phone jack
- Video Output: VGA x 1, 15-pin D-sub connector (female) HDMI x 1, HDMI connector (type A)
- Expansion Slots: mPCIe slots x 2
Digital Inputs
- Connector: Screw-fastened Euroblock terminal
- I/O Mode: DI
- Isolation: 3k VDC
- Sensor Type: Wet contact (NPN) Dry contact
- Dry Contact: Logic 0: Close to GND Logic 1: Open
- Wet Contact (COM to DI): Logic 0: 10 to 30 VDC Logic 1: 0 to 3 VDC
Digital Outputs
- Connector: Screw-fastened Euroblock terminal 10-pin terminal block
- Current Rating: 200 mA per channel
- I/O Type: Sink
- Voltage: 0 to 30 VDC
- Isolation: 3k VDC
LED Indicators
- System: Power x 1 Storage x 1
- LAN: 2 per port (10/100/1000 Mbps)
- Serial: 2 per port (Tx, Rx)
Serial Interface
- Baudrate: 50 bps to 115.2 kbps
- Connector: DB9 male
- ESD: Contact: 6 kV; Air: 8 kV (level 3)
- Isolation: 2 kV
- Data Bits: 5, 6, 7, 8
- Flow Control: RTS/CTS, XON/XOFF, Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only)
- Parity: None, Even, Odd, Space, Mark
- Stop Bits: 1, 1.5, 2
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
- Input Voltage: 24 to 110 VDC
- Power Connector: M12 A-coded male connector
- Power Consumption (Max.): 70 W (max.)
Physical Characteristics
- Housing: Aluminum
- IP Rating: IP20
- Dimensions (without ears): 250 x 75 x 150 mm (9.84 x 2.95 x 5.91 in)
- Weight: 2,70
