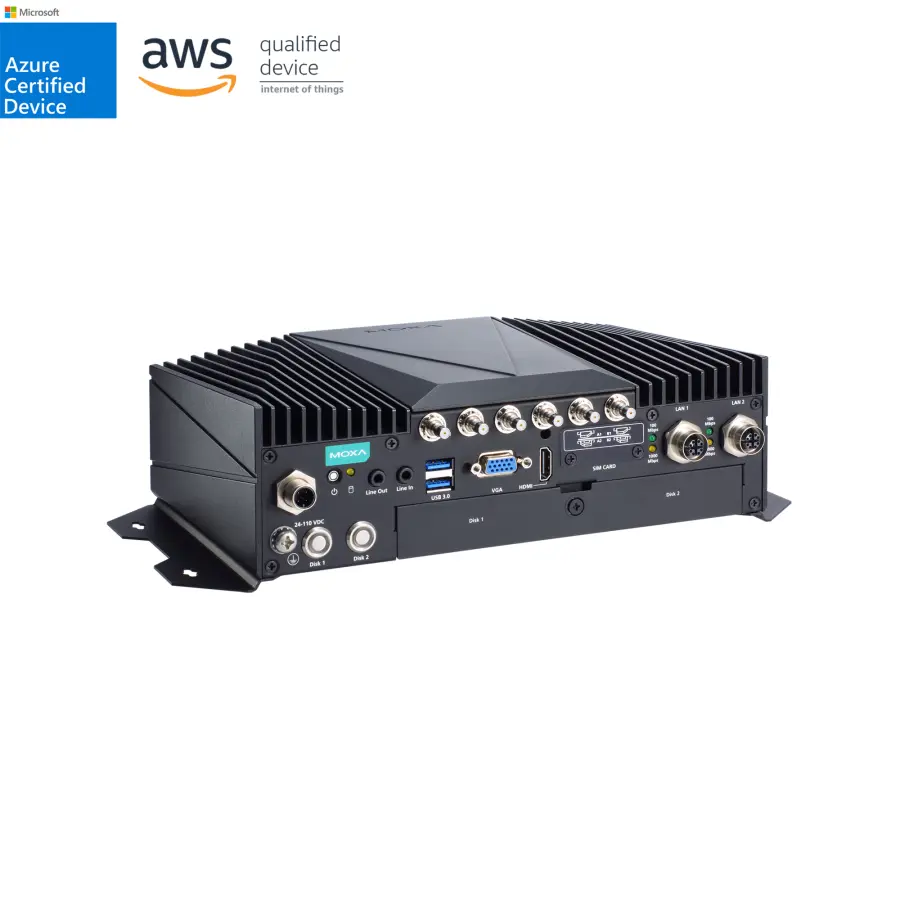

Industrial embedded computer – x86 computer with Intel 8th Gen Celeron 4305UE 2.0 GHz processor, 1 HDMI port, 1 VGA port, 2 GbE ports, 4 COM ports, 6 DIs, 2 DOs, 1 mSATA slot, dual 2.5-inch SSD/HDD slots, 2 mPCIe slots, 4 USB ports, 1 QMA connector, 24 to 110 VDC with isolation, -40 to 70°C operating temperature
Computer
- CPU: Intel® Celeron® 4305UE processor (2M cache, 2 GHz)
- Storage Slot: 2.5-inch HDD/SSD slots x 2 mSATA slots x 1
- Supported OS: Order via the Moxa Computer Configuration System (CCS):Windows 10 Embedded IoT Ent 2019 LTSC 64-bitWindows 10 Embedded IoT Ent 2021 LTSC 64-bitWL Models: Moxa Industrial Linux 2.x (Debian 10, kernel 4.19)KL Models: Debian 9 (kernel 4.9) Download Drivers From Website:Linux Debian 11/Ubuntu 20.04/CentOS 7.9 drivers
- System Memory Slot: SODIMM DDR4 slots x 2
- DRAM: 32 GB max
- Graphics Controller: Intel® HD Graphics 610
Computer Interface
- Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2
- Digital Output: DOs x 2
- Serial Ports: RS-232/422/485 ports x 4 (software-selectable, DB9 male connector)
- Digital Input: DIs x 6
- USB 3.0: USB 3.0 hosts x 4, type-A connectors
- Audio Input/Output: Line in x 1, Line out x 1, 3.5 mm phone jack
- Video Output: VGA x 1, 15-pin D-sub connector (female) HDMI x 1, HDMI connector (type A)
- Expansion Slots: mPCIe slots x 2
Digital Inputs
- Connector: Screw-fastened Euroblock terminal
- I/O Mode: DI
- Isolation: 3k VDC
- Sensor Type: Wet contact (NPN) Dry contact
- Dry Contact: Logic 0: Close to GND Logic 1: Open
- Wet Contact (COM to DI): Logic 0: 10 to 30 VDC Logic 1: 0 to 3 VDC
Digital Outputs
- Connector: Screw-fastened Euroblock terminal 10-pin terminal block
- Current Rating: 200 mA per channel
- I/O Type: Sink
- Voltage: 0 to 30 VDC
- Isolation: 3k VDC
LED Indicators
- System: Power x 1 Storage x 1
- LAN: 2 per port (10/100/1000 Mbps)
- Serial: 2 per port (Tx, Rx)
Serial Interface
- Baudrate: 50 bps to 115.2 kbps
- Connector: DB9 male
- ESD: Contact: 6 kV; Air: 8 kV (level 3)
- Isolation: 2 kV
- Data Bits: 5, 6, 7, 8
- Flow Control: RTS/CTS, XON/XOFF, Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only)
- Parity: None, Even, Odd, Space, Mark
- Stop Bits: 1, 1.5, 2
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
- Input Voltage: 24 to 110 VDC
- Power Connector: M12 A-coded male connector
- Power Consumption (Max.): 70 W (max.)
Physical Characteristics
- Housing: Aluminum
- IP Rating: IP20
- Dimensions (without ears): 250 x 75 x 150 mm (9.84 x 2.95 x 5.91 in)
- Weight: 2,700 g (5.95 lb)
- Installation: Wall mounting (standard)
- Protection: PCB conformal coating Available on request
Environmental Limits
- Operating Temperature: -40 to 70°C (-40 to 158°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Railway Fire Protection: EN 45545-2
- EMC: EN 55032/35
- Safety: EN 62368-1 IEC 62368-1 UL 62368-1
- Railway: EN 50121-4 EN 50121-3-2 EN 50155:2017
- Shock: IEC 60068-2-27, IEC 61373
- Vibration: IEC 60068-2-64, IEC 61373
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 369,408 hrs
- Standards: Telcordia (Bellcore), GB
Warranty
- Warranty Period: Product: 3 years Battery: 1 year Batteries supplied by Moxa have a warranty of one year. We highly recommend contacting Moxa RMA team when you want to replace batteries in Moxa products. If you must replace batteries on your own, please follow instructions in the product manual.
- Details: See www.moxa.com/warranty
