# V2406C-WL5-T

Industrial embedded computer, CPU: Intel® Core™ i5-8365UE processor (6M cache, 1.6 GHz), RAM: 32 GB max, Storage: 2.5-inch HDD/SSD slots x 2 mSATA slots x 1, LAN: 2 per port (10/100/1000 Mbps), OS:

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 101550122595 |
| Warranty | 36 |
| Warranty for companies | 36 |
| Brand | MOXA |

## Podrobný popis

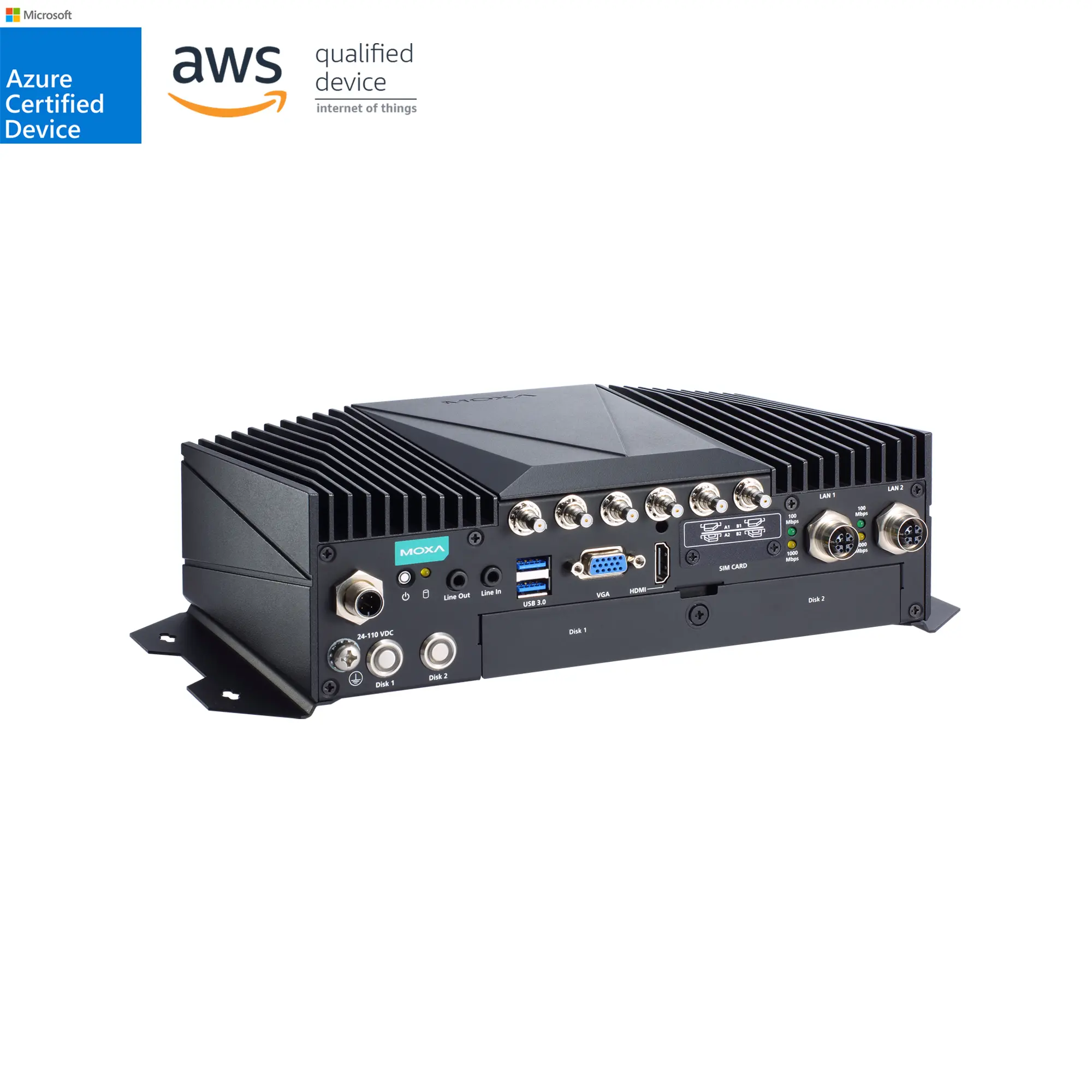

Industrial embedded computer – x86 computer with Intel 8th Gen Core™ i5-8365UE 4.1 GHz processor, 1 HDMI port, 1 VGA port, 2 GbE ports, 4 COM ports, 6 DIs, 2 DOs, 1 mSATA slot, dual 2.5-inch SSD/HDD slots, 2 mPCIe slots, 4 USB ports, 1 QMA connector, 24 to 110 VDC with isolation, -40 to 70°C operating temperatureComputerCPU: Intel® Core™ i5-8365UE processor (6M cache, 1.6 GHz)Storage Slot: 2.5-inch HDD/SSD slots x 2 mSATA slots x 1Supported OS: Order via the Moxa Computer Configuration System (CCS):Windows 10 Embedded IoT Ent 2019 LTSC 64-bitWindows 10 Embedded IoT Ent 2021 LTSC 64-bitWL Models: Moxa Industrial Linux 2.x (Debian 10, kernel 4.19)KL Models: Debian 9 (kernel 4.9) Download Drivers From Website:Linux Debian 11/Ubuntu 20.04/CentOS 7.9 driversSystem Memory Slot: SODIMM DDR4 slots x 2DRAM: 32 GB maxGraphics Controller: Intel® HD Graphics 620Computer InterfaceEthernet Ports: Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2Digital Output: DOs x 2Serial Ports: RS-232/422/485 ports x 4 (software-selectable, DB9 male connector)Digital Input: DIs x 6USB 3.0: USB 3.0 hosts x 4, type-A connectorsAudio Input/Output: Line in x 1, Line out x 1, 3.5 mm phone jackVideo Output: VGA x 1, 15-pin D-sub connector (female) HDMI x 1, HDMI connector (type A)Expansion Slots: mPCIe slots x 2Digital InputsConnector: Screw-fastened Euroblock terminalI/O Mode: DIIsolation: 3k VDCSensor Type: Wet contact (NPN) Dry contactDry Contact: Logic 0: Close to GND Logic 1: OpenWet Contact (COM to DI): Logic 0: 10 to 30 VDC Logic 1: 0 to 3 VDCDigital OutputsConnector: Screw-fastened Euroblock terminal 10-pin terminal blockCurrent Rating: 200 mA per channelI/O Type: SinkVoltage: 0 to 30 VDCIsolation: 3k VDCLED IndicatorsSystem: Power x 1 Storage x 1LAN: 2 per port (10/100/1000 Mbps)Serial: 2 per port (Tx, Rx)Serial InterfaceBaudrate: 50 bps to 115.2 kbpsConnector: DB9 maleESD: Contact: 6 kV; Air: 8 kV (level 3)Isolation: 2 kVData Bits: 5, 6, 7, 8Flow Control: RTS/CTS, XON/XOFF, Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only)Parity: None, Even, Odd, Space, MarkStop Bits: 1, 1.5, 2Serial SignalsRS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GNDRS-422: Tx+, Tx-, Rx+, Rx-, GNDRS-485-2w: Data+, Data-, GNDRS-485-4w: Tx+, Tx-, Rx+, Rx-, GNDPower ParametersInput Voltage: 24 to 110 VDCPower Connector: M12 A-coded male connectorPower Consumption (Max.): 70 W (max.)Physical CharacteristicsHousing: AluminumIP Rating: IP20Dimensions (without ears): 250 x 75 x 150 mm (9.84 x 2.95 x 5.91 in)Weight: 2,700 g (5.95 lb
