Description

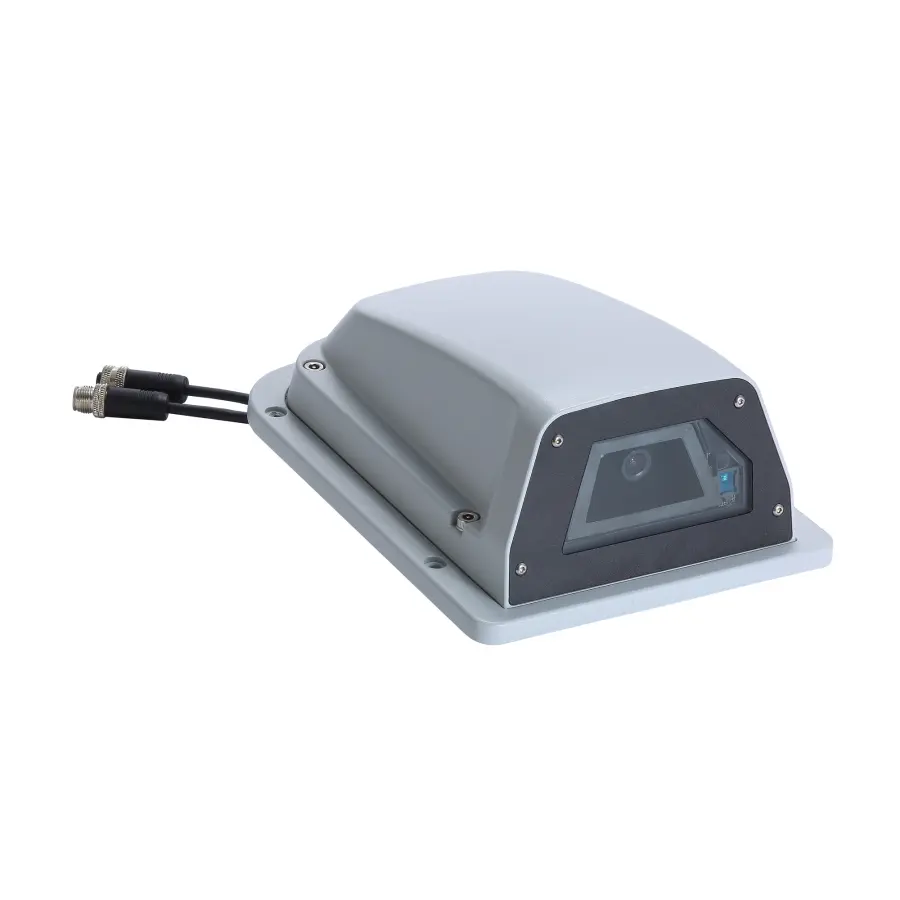

Industrial edge connectivity device – EN50155, 1080P, day & night outdoor IP camera, 4.2 mm lens, -40 to 70°C operating temperature
Memory
Input/Output Interface
- Digital Output Channels: 1
- Contact Current Rating: Resistive load: 1 A @ 24 VDC
- Connector: 5-pin A-coded male M12 connector with 20 cm cable
Ethernet Interface
- PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector): 1
Ethernet Software Features
- Protocols: TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS
Security Functions
- Password: User-level password protection
- Filter: IP address
- Encryption: HTTPS
Power Parameters
- No. of Power Inputs: 2
- Source of Input Power: PoE (IEEE 802.3af)
- Input Voltage: 24 VDC for front-window heater (for defrosting)
- Input Current: 0.167 A @ 48 VDC, 0.9 A @ 24 VDC
- Power Connector: M12 connector
- Note: PoE is for powering the camera; 24 VDC is for powering the heater
Camera Characteristics
- Sensor: 1/3-in 1080P progressive scan CMOS
- Lens: f=4.2 mm, F1.6, Diagonal 82°, Horizontal 62°, Vertical 34°
- Minimum Illumination: Color: 0.2 lux, at F1.6 (Gain High, 50 IRE, 1/30 sec) B/W: 0.05 lux, at F1.6 (Gain High, 50 IRE, 1/30 sec)
- Day & Night: Auto/Color/BW; ICR control
- ICR Control: Auto
- Synchronization: Internal
- White Balance: ATW/AWB
- Electronic Shutter: Auto, Fixed (1/30 to 1/25000 sec)
- S/N Ratio: Maximum 50 dB (AGC off; DNR on)
- DNR (digital noise reduction): Built-in 2D/3D DNR
- WDR (wide dynamic range): 100 dB
- AGC (auto gain control): 2X, 4X, 8X, 16X
- Flickerless Control: Automatic, 50 Hz, 60 Hz modes
- Image Rotation: Flip, Mirror, 90°, 180°, 270° rotation
- Image Setting: Manual tuning with saturation, sharpness, and contrast
- Camera Angle: Pan: ±5°, Tilt: +10/-5° (controlled manually)
Video Interface
- Video Compression: H.264 (ISO/IEC 14496-10) or MJPEG
- Video Output: via Ethernet
- Video Streams: 4 independent H.264 or MJPEG video streams
- NTSC/PAL: Auto-sensing or manual
- Video Resolution and FPS (frames per second): Read more NTSC PAL Size Max. FPS Size Max. FPS QCIF 176 x 112 30 176 x 144 25 CIF 352 x 240 30 352 x 288 25 VGA 640 x 480 30 640 x 480 25 4CIF 704 x 480 30 704 x 576 25 Full D1 720 x 480 30 720 x 576 25 SVGA 800 x 600 30 800 x 600 25 HD 1280 x 720 30 1280 x 720 25 WXGA 1280 x 800 30 1280 x 800 25 Full HD 1920 x 1080 30 1920 x 1080 30
- Video Viewing: DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions 3 privacy mask areas provided Adjustable image size and quality Timestamp and text overlay OSD (On Screen Display) position adjustable Maximum of 5 simultaneous unicast connections, 50 multicast clients Digital PTZ
Camera Software Development
- Video Standards: ONVIF Profile S
