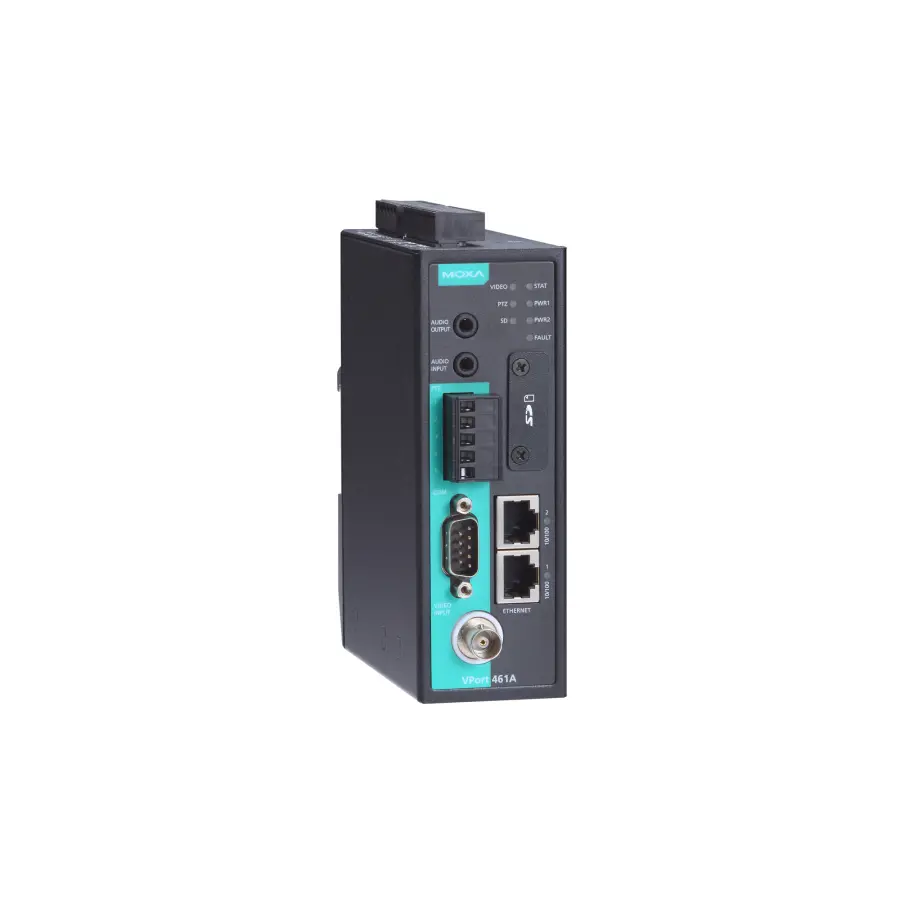

# VPort 461A-T

Serial communication device, Serial: 1, RS-232 or RS-422/485 port, terminal block connector, 1, LAN: via Ethernet, Protocols: TCP/IP IPv4/IPv6 UDP, HTTP, RTP/RTSP ARP UPnP FTP, TFTP, NTP, Temp: -40 t

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 240404112470 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Serial communication device – Full Motion, 1-ch industrial video encoder, 2 10/100BaseT(X) Ethernet ports, -40 to 75°C operating temperatureMemorySD Slot: SDXCInput/Output InterfaceDigital Input Channels: 2Digital Inputs: +13 to +30 V for state 1 -30 to +1 V for state 0 Max. input current: 8 mARelay Channels: 2Contact Current Rating: Resistive load: 1 A @ 24 VDCConnector: Terminal blockEthernet Interface10/100BaseT(X) Ports (RJ45 connector): 2Ethernet Software FeaturesProtocols: TCP/IP IPv4/IPv6 UDP, HTTP, RTP/RTSP ARP UPnP FTP, TFTP, NTP Client DNS QoS IGMP v3 ICMP SNMPv1/v2c/v3 Modbus TCP HTTPS 802.1X NTCIPSecurity FunctionsPassword: User-level password protectionFilter: IP addressAuthentication: 802.1XEncryption: HTTPS SSHLED InterfaceLED Indicators: STAT: Indicates if system is booted up properly or not Power 1: Power 1 on/off Power 2: Power 2 on/off FAULT: Can be configured to correspond to system alarm, power failure, or disconnected network Video: Video input signal PTZ: Indicates if PTZ or COM port data has been transmitted SD: Indicates if SD card was mounted successfully Network: 10 Mbps or 100 MbpsSerial InterfacePTZ Port: 1, RS-232 or RS-422/485 port, terminal block connector, 115.2 kbpsCOM Port: 1, RS-232 or RS-485 port, DB9 male connector, 115.2 kbpsConsole Port: 1 RS-232 port, 10-pin RJ45 (115200, n, 8, 1)Power ParametersNo. of Power Inputs: 2Input Voltage: Redundant dual inputsOperating Voltage: 12 to 32 VDC, 18 to 30 VACInput Current: 0.64 A @ 12 VDC, 0.18 A @ 32 VDC 0.59 A @ 18 VAC 0.35 A @ 30 VACPower Connector: 2-pin terminal blockVideo InterfaceVideo Compression: H.264 (ISO/IEC 14496-10) or MJPEGVideo Input: 1, BNC connector (1.0 Vpp, 75 ohm)Video Output: via EthernetVideo Streams: 4 independent H.264 or MJPEG video streamsNTSC/PAL: Auto-sensing or manualVideo Resolution and FPS (frames per second): Read more NTSC PAL Size Max. FPS Size Max. FPS QCIF 176 x 112 30 176 x 144 25 CIF 352 x 240 30 352 x 288 25 VGA 640 x 480 30 640 x 480 25 4CIF 704 x 480 30 704 x 576 25 Full D1 720 x 480 30 720 x 576 25Video Viewing: DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions Adjustable image size and quality Timestamp and text overlay OSD (On Screen Display) position adjustable Image tuning: control brightness, contrast, saturation Maximum of 10 simultaneous unicast connections, 50 multicast clientsAudio InterfaceAudio Inputs: 1 Line-in or MIC-in with 3.5 mm phone jackAudio Outputs: 1 Line-out, with 3.5 mm phone jackAudio Format: Mono, PCM (G.711)Camera Software DevelopmentVideo Standards: ONVIF Profile SCamera PAN/TILT/ZOOMPTZ Camera Control: Via PTZ port or COM portPTZ Control Functions: Pan, tilt, zoom, focus, move speed, preset position (max. 128 positions)PTZ Function Up
