title: "VPort 464-T"
category: "Video Processing > Videoservers > MPEG4 Videoservers"
---

**Kategorie:** Video Processing > Videoservers > MPEG4 Videoservers

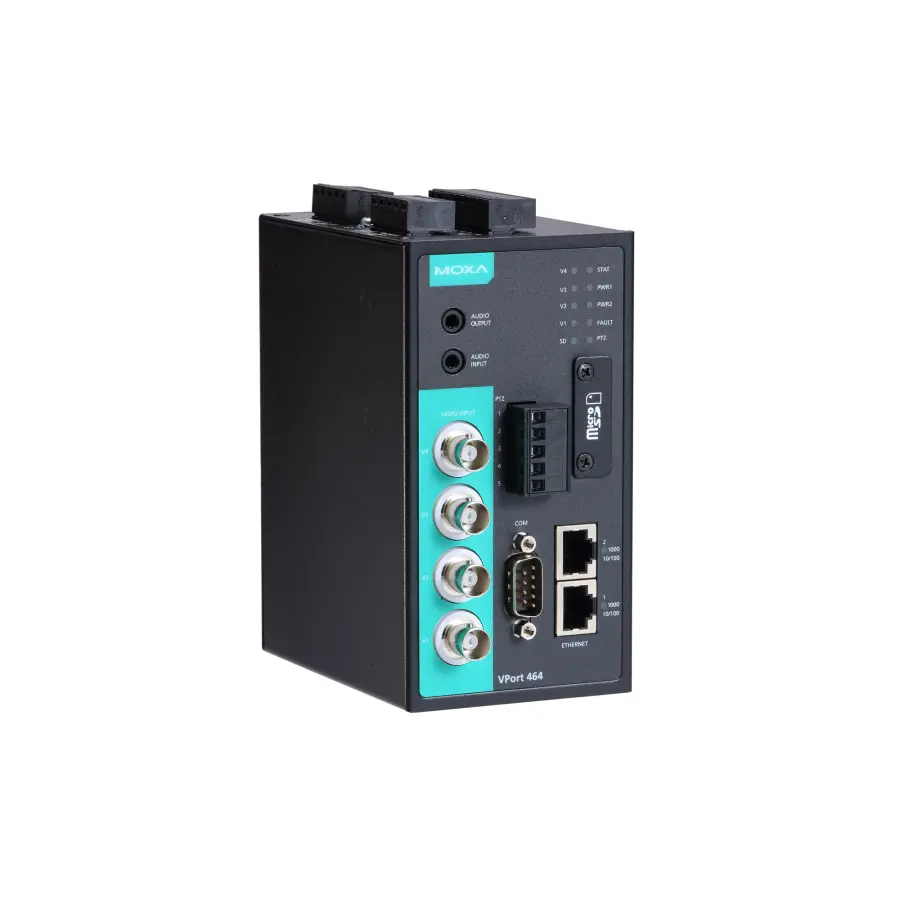

# VPort 464-T

Serial communication device, Serial: 1, RS-232 or RS-422/485 port, terminal block connector, 1, LAN: via Ethernet, Protocols: TCP/IP IPv4/IPv6 UDP, HTTP, RTP/RTSP ARP UPnP FTP, TFTP, NTP, Temp: -40 t

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 240404113470 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Serial communication device – 4-channel H.264/MJPEG industrial video encoder, 2 10/100/1000BaseT(X) Ethernet ports, -40 to 75°C operating temperatureMemorymicroSD Slot: SDXCInput/Output InterfaceDigital Input Channels: 4Digital Inputs: +13 to +30 V for state 1 -30 to +1 V for state 0 Max. input current: 8 mARelay Channels: 2Contact Current Rating: Resistive load: 1 A @ 24 VDCConnector: Terminal blockEthernet Interface10/100BaseT(X) Ports (RJ45 connector): 2Ethernet Software FeaturesProtocols: TCP/IP IPv4/IPv6 UDP, HTTP, RTP/RTSP ARP UPnP FTP, TFTP, NTP Client DNS QoS IGMP v3 ICMP SNMPv1/v2c/v3 Modbus TCP HTTPS 802.1X NTCIPSecurity FunctionsPassword: User-level password protectionFilter: IP addressAuthentication: 802.1XEncryption: HTTPS SSHLED InterfaceLED Indicators: STAT: Indicates if system is booted up properly or not Power 1: Power 1 on/off Power 2: Power 2 on/off FAULT: Can be configured to correspond to system alarm, power failure, or disconnected network Video: Video input signal PTZ: Indicates if PTZ or COM port data has been transmitted SD: Indicates if SD card was mounted successfully Network: 10 Mbps or 100 MbpsSerial InterfacePTZ Port: 1, RS-232 or RS-422/485 port, terminal block connector, 115.2 kbpsCOM Port: 1, RS-232 or RS-485 port, DB9 male connector, 115.2 kbpsConsole Port: 1 RS-232 port, 10-pin RJ45 (115200, n, 8, 1)Power ParametersNo. of Power Inputs: 2Input Voltage: Redundant dual inputsOperating Voltage: 12 to 32 VDC, 18 to 30 VACInput Current: 1 A @ 12 VDC 0.3 A @ 32 VDC 0.92 A @ 18 VAC 0.56 A @ 30 VACPower Connector: 2-pin terminal blockVideo InterfaceVideo Compression: H.264 (ISO/IEC 14496-10) or MJPEGVideo Input: 4, BNC connector (1.0 Vpp, 75 ohm)Video Output: via EthernetVideo Streams: 2 independent H.264 or MJPEG video streams 1 quad (4-channel images) streamNTSC/PAL: Auto-sensing or manualVideo Resolution and FPS (frames per second): Read more NTSC PAL Size Max. FPS Size Max. FPS QCIF 176 x 112 30 176 x 144 25 4CIF 704 x 480 30 704 x 576 25 CIF 352 x 240 30 352 x 288 25 VGA 640 x 480 30 640 x 480 25 QVGA 320 x 240 30 320 x 240 25 Full D1 720 x 480 30 720 x 576 25 Quad View 1440 x 960 30 1440 x 1152 25Video Viewing: DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions Adjustable image size and quality Timestamp and text overlay OSD (On Screen Display) position adjustable Maximum of 10 simultaneous unicast connections, 50 multicast clients Image tuning control: brightness, contrast, saturation, sharpness, noise reductionAudio InterfaceAudio Inputs: 1 Line-in or MIC-in with 3.5 mm phone jackAudio Outputs: 1 Line-out, with 3.5 mm phone jackAudio Format: Mono, PCM (G.711)Camera Software DevelopmentVideo Standards: ONVIF Profile SCamera PAN/TILT/ZOOMPTZ Camera Control: Via PTZ port or COM port
