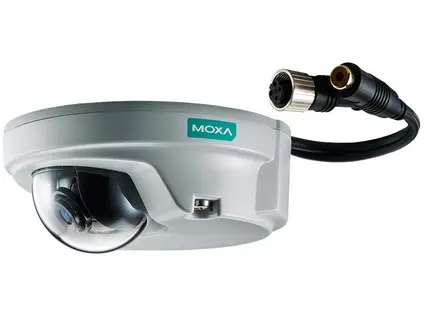

# VPort P06-1MP-M12-CAM42

Industrial edge connectivity device, LAN: via Ethernet, Protocols: TCP/IP IPv4 UDP, HTTP, RTP/RTSP ARP UPnP FTP, TFTP, NTP Clien, Temp: -25 to 55°C (-13 to 131°F), Power: 1

**Dostupnost:** In stock (1 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 241208115630 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial edge connectivity device – EN50155, HD, compact IP camera, M12 connector, 1 audio-in, PoE, 4.2 mm lens, -25 to 55°C operating temperatureEthernet InterfacePoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector): 1Ethernet Software FeaturesProtocols: TCP/IP IPv4 UDP, HTTP, RTP/RTSP ARP UPnP FTP, TFTP, NTP Client DNS QoS IGMP v3 ICMP SNMPv1/v2c/v3 DHCP Opt66/67 HTTPSSecurity FunctionsPassword: User-level password protectionFilter: IP addressEncryption: HTTPSPower ParametersNo. of Power Inputs: 1Source of Input Power: PoE (IEEE 802.3af)Input Current: 0.12 A @ 48 VDCCamera CharacteristicsSensor: 1/2.7-in HD progressive scan CMOSLens: f=4.2 mm, F1.8, Diagonal 87°, Horizontal 80°, Vertical 43°Camera Angle: Pan: ±30°, Tilt: 0° to 90° (controlled manually)Minimum Illumination: Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)Synchronization: InternalWhite Balance: ATW/AWBElectronic Shutter: Auto, Fixed (1/30 to 1/25000 sec)S/N Ratio: Maximum 50 dB (AGC off; DNR on)DNR (digital noise reduction): Built-in 2D/3D DNRWDR (wide dynamic range): 110 dBFlickerless Control: Automatic, 50 Hz, 60 Hz modesImage Rotation: Flip, Mirror, and 180° rotationImage Setting: Manual tuning with saturation, sharpness, and contrastAGC (auto gain control): 2X, 4X, 8X, 16X, 32X, 64XBLC (back light compensation): High/Medium/LowVideo InterfaceVideo Compression: H.264 (ISO/IEC 14496-10) or MJPEGVideo Output: via EthernetVideo Streams: 3 independent H.264 or MJPEG video streamsVideo Resolution and FPS (frames per second): Read more NTSC PAL Size Max. FPS Size Max. FPS QCIF 176 x 112 30 176 x 144 25 QVGA 320 x 240 30 320 x 240 25 CIF 352 x 240 30 352 x 288 25 VGA 640 x 480 30 640 x 480 25 4CIF 704 x 480 30 704 x 576 25 Full D1 720 x 480 30 720 x 576 25 SVGA 800 x 600 30 800 x 600 25 HD 1280 x 720 30 1280 x 720 25 WXGA 1280 x 800 30 1280 x 800 25 Note: Multiple streams may not support up to 30 FPS.Video Viewing: DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions 3 privacy mask areas provided Adjustable image size and quality Timestamp and text overlay OSD (On Screen Display) position adjustable Maximum of 5 simultaneous unicast connections, 50 multicast clientsAudio InterfaceAudio Inputs: 1 x line-in, with RCAconnectorAudio Format: Mono, PCM (G.711)Camera Software DevelopmentVideo Standards: ONVIF Profile SCamera Alarm Software FeaturesIntelligent Video: Camera tampering detectionVideo Motion Detection: 3 independently configurable areasScheduling: Daily repeat timing scheduleImaging: JPEG snapshots for pre/trigger/post alarm imagesCustom Alarms: HTTP event servers for setting customized alarm actionsFTP Messaging: Automatic transfer of stored images via FTP as event-triggered actionsS

## Soubory ke stažení

* [Katalog VPort_P06-1MP-M12_Series_ELVAC15](https://www.elvac.eu/files/shop/moxa/datasheet/VPort_P06-1MP-M12_Series_ELVAC15.pdf)
* [Manual VPort_P06-1MP-M12_UM_1e_ELVAC15](https://www.elvac.eu/files/shop/moxa/manual/VPort_P06-1MP-M12_UM_1e_ELVAC15.pdf)
