Description

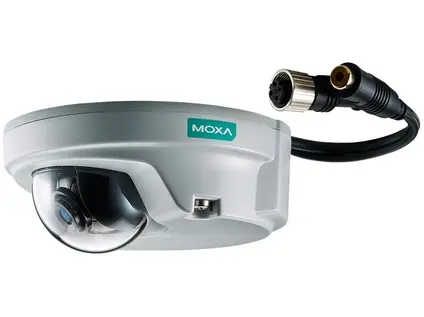

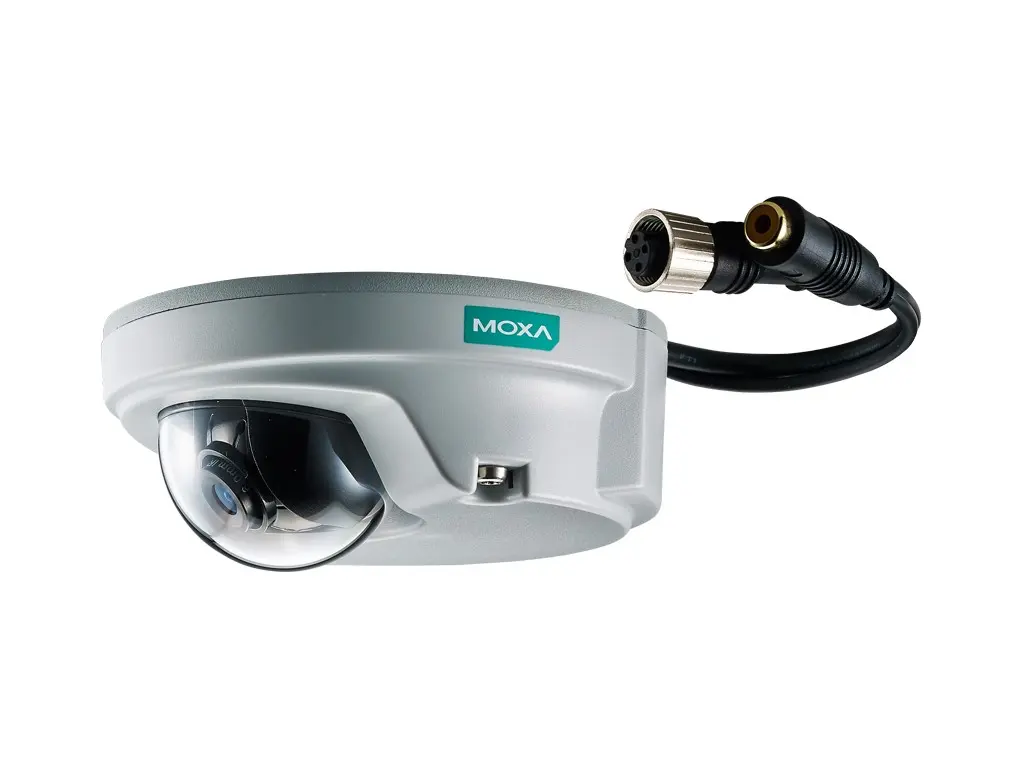

Industrial edge connectivity device – EN50155, HD, compact IP camera, M12 connector, 1 audio-in, PoE, 6.0 mm lens, -25 to 55°C operating temperature
Ethernet Interface
- PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector): 1
Ethernet Software Features
- Protocols: TCP/IP IPv4 UDP HTTP RTP/RTSP ARP UPnP FTP TFTP NTP Client DNS QoS IGMP v3 ICMP SNMPv1/v2c/v3 DHCP Opt66/67 HTTPS
Security Functions
- Password: User-level password protection
- Filter: IP address
- Encryption: HTTPS
Power Parameters
- No. of Power Inputs: 1
- Source of Input Power: PoE (IEEE 802.3af)
- Input Current: 0.12 A @ 48 VDC
Camera Characteristics
- Sensor: 1/2.7-in HD progressive scan CMOS
- Lens: f=6.0 mm, F1.6, Diagonal 60°, Horizontal 55°, Vertical 29°
- Camera Angle: Pan: ±30°, Tilt: 0° to 90° (controlled manually)
- Minimum Illumination: Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
- Synchronization: Internal
- White Balance: ATW/AWB
- Electronic Shutter: Auto, Fixed (1/30 to 1/25000 sec)
- S/N Ratio: Maximum 50 dB (AGC off; DNR on)
- DNR (digital noise reduction): Built-in 2D/3D DNR
- WDR (wide dynamic range): 110 dB
- Flickerless Control: Automatic, 50 Hz, 60 Hz modes
- Image Rotation: Flip, Mirror, and 180° rotation
- Image Setting: Manual tuning with saturation, sharpness, and contrast
- AGC (auto gain control): 2X, 4X, 8X, 16X, 32X, 64X
- BLC (back light compensation): High/Medium/Low
Video Interface
- Video Compression: H.264 (ISO/IEC 14496-10) or MJPEG
- Video Output: via Ethernet
- Video Streams: 3 independent H.264 or MJPEG video streams
- Video Resolution and FPS (frames per second): Read more NTSC PAL Size Max. FPS Size Max. FPS QCIF 176 x 112 30 176 x 144 25 QVGA 320 x 240 30 320 x 240 25 CIF 352 x 240 30 352 x 288 25 VGA 640 x 480 30 640 x 480 25 4CIF 704 x 480 30 704 x 576 25 Full D1 720 x 480 30 720 x 576 25 SVGA 800 x 600 30 800 x 600 25 HD 1280 x 720 30 1280 x 720 25 WXGA 1280 x 800 30 1280 x 800 25 Note: Multiple streams may not support up to 30 FPS.
- Video Viewing: DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions 3 privacy mask areas provided Adjustable image size and quality Timestamp and text overlay OSD (On Screen Display) position adjustable Maximum of 5 simultaneous unicast connections, 50 multicast clients
Audio Interface
- Audio Inputs: 1 x line-in, with RCAconnector
- Audio Format: Mono, PCM (G.711)
Camera Software Development
- Video Standards: ONVIF Profile S
Camera Alarm Software Features
- Intelligent Video: Camera tampering detection
- Video Motion Detection: 3 independently configurable areas
- Scheduling: Daily repeat timing schedule
- Imaging: JPEG snapshots for pre/trigger/post alarm images
- Custom Alarms: HTTP event servers for setting customized alarm actions
- FTP Messaging: Automatic transfer of stored images via FTP as event-triggered actions
Software Requirements
- Memory Size: 1 GB
- Operating System: Windows 7 or above
- Browser: Internet Explorer 9.x or above
- Multimedia: DirectX 9.0C or above
Physical Characteristics
- Housing: Plastic top cover, metal bottom plate IP66 rain and dust protection IK10 vandal resistant protection Transparent PC cover
- Dimensions: 110 x 47 mm (4.33 x 1.85 in)
- Weight: 310 g (0.68 lb)
- Installation: Panel mounting
Environmental Limits
- Operating Temperature: -25 to 55°C (-13 to 131°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Ingress Protection: IEC 60529, IP66
- Vandal Resistance: EN 62262, IK10
- Altitude: 2000 m
Standards and Certifications
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Signal: 2 kV IEC 61000-4-5 Surge: Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Freefall: IEC 60068-2-31
- Railway Fire Protection: EN 45545-2
- Safety: UL 62368-1
- Shock: IEC 60068-2-27, IEC 61373, EN 50155
- Vibration: IEC 60068-2-64, IEC 61373, EN 50155
- Railway: EN 50155 (complies with a portion of EN 50155 specifications)
MTBF
- Time: 1,944,687 hrs
- Standards: Telcordia SR332
