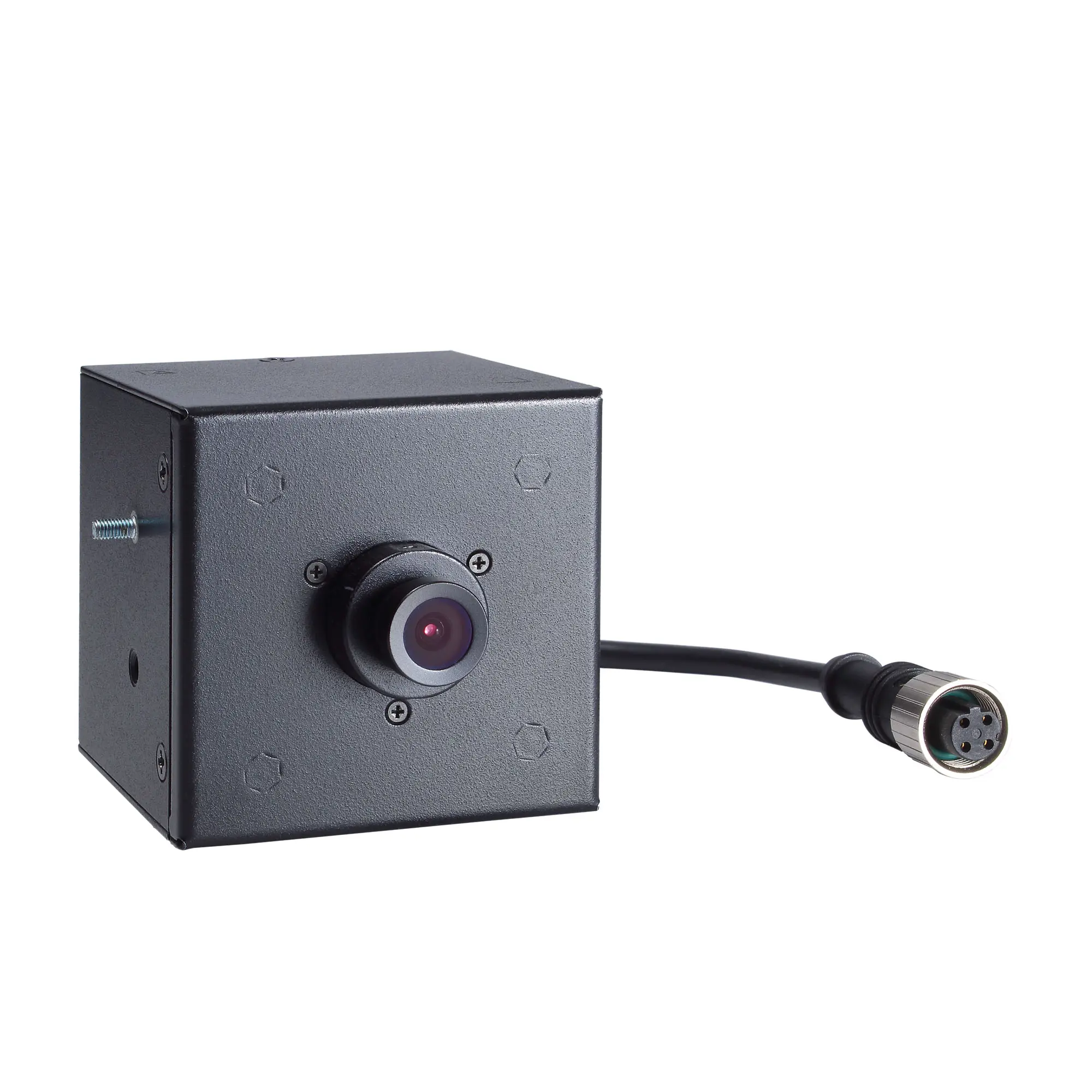

# VPort P06HC-1V42M-CT

Industrial edge connectivity device, LAN: via Ethernet, Protocols: TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP,, Temp: -40 to 55°C (-40 to 131°F), Power: 1

**Dostupnost:** Not in stock (0 pcs)

## Základní informace

| Parametr | Hodnota |
| --- | --- |
| Unit | pcs |
| Code 1 | 241208115721 |
| Warranty | 60 |
| Warranty for companies | 60 |
| Brand | MOXA |

## Podrobný popis

Industrial edge connectivity device – EN 50155, HD image, cubic IP camera with M12 connector, PoE, 4.2 mm lens, -40 to 55°C operating temperature, conformal coatingEthernet InterfacePoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector): 1Ethernet Software FeaturesProtocols: TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPSSecurity FunctionsPassword: User-level password protectionFilter: IP addressEncryption: HTTPSPower ParametersNo. of Power Inputs: 1Source of Input Power: PoE (IEEE 802.3af)Input Current: 0.17 A @ 48 VDCCamera CharacteristicsSensor: 1/2.7-in HD progressive scan CMOSLens: f=4.2 mm, F1.8, Diagonal 87°, Horizontal 80°, Vertical 43°Minimum Illumination: Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)Synchronization: InternalWhite Balance: ATW/AWBElectronic Shutter: Auto (1/30 to 1/25000 sec)S/N Ratio: Maximum 50 dB (AGC off; DNR on)DNR (digital noise reduction): Built-in DNRWDR (wide dynamic range): 110 dBFlickerless Control: Automatic, 50 Hz, 60 Hz modesImage Rotation: Flip, Mirror, and 180° rotationImage Setting: Manual tuning with saturation, sharpness, and contrastAGC (auto gain control): 2X, 4X, 8X, 16X, 32X, 64XBLC (back light compensation): High/Medium/LowVideo InterfaceVideo Compression: H.264 (ISO/IEC 14496-10) or MJPEGVideo Output: via EthernetVideo Streams: 3 independent H.264 or MJPEG video streamsVideo Resolution and FPS (frames per second): Read more NTSC PAL Size Max. FPS Size Max. FPS QCIF 176 x 112 30 176 x 144 25 QVGA 320 x 240 30 320 x 240 25 CIF 352 x 240 30 352 x 288 25 VGA 640 x 480 30 640 x 480 25 4CIF 704 x 480 30 704 x 576 25 Full D1 720 x 480 30 720 x 576 25 SVGA 800 x 600 30 800 x 600 25 HD 1280 x 720 30 1280 x 720 25 WXGA 1280 x 800 30 1280 x 800 25 Note: Multiple streams may not support up to 30 FPS.Video Viewing: DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions 3 privacy mask areas provided Adjustable image size and quality Timestamp and text overlay OSD (On Screen Display) position adjustable Maximum of 5 simultaneous unicast connections, 50 multicast clientsCamera Software DevelopmentVideo Standards: ONVIF Profile SCamera Alarm Software FeaturesIntelligent Video: Camera tampering detectionVideo Motion Detection: 3 independently configurable areasScheduling: Daily repeat timing scheduleImaging: JPEG snapshots for pre/trigger/post alarm imagesCustom Alarms: HTTP event servers for setting customized alarm actionsFTP Messaging: Automatic transfer of stored images via FTP as event-triggered actionsSoftware RequirementsMemory Size: 1 GBOperating System: Windows 7 or aboveBrowser: Internet Explorer 9.x or aboveMultimedia:
